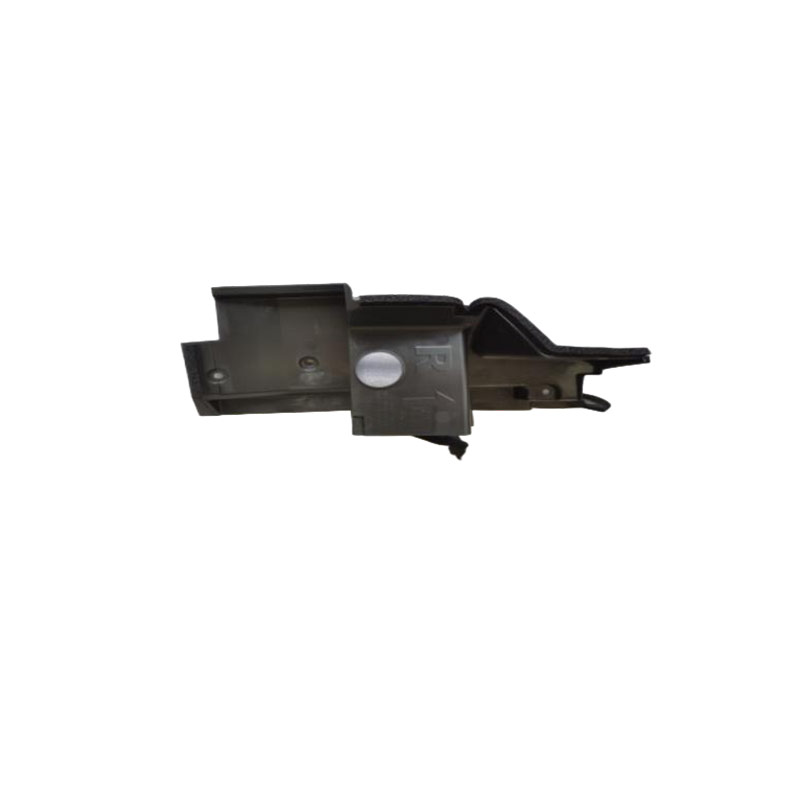

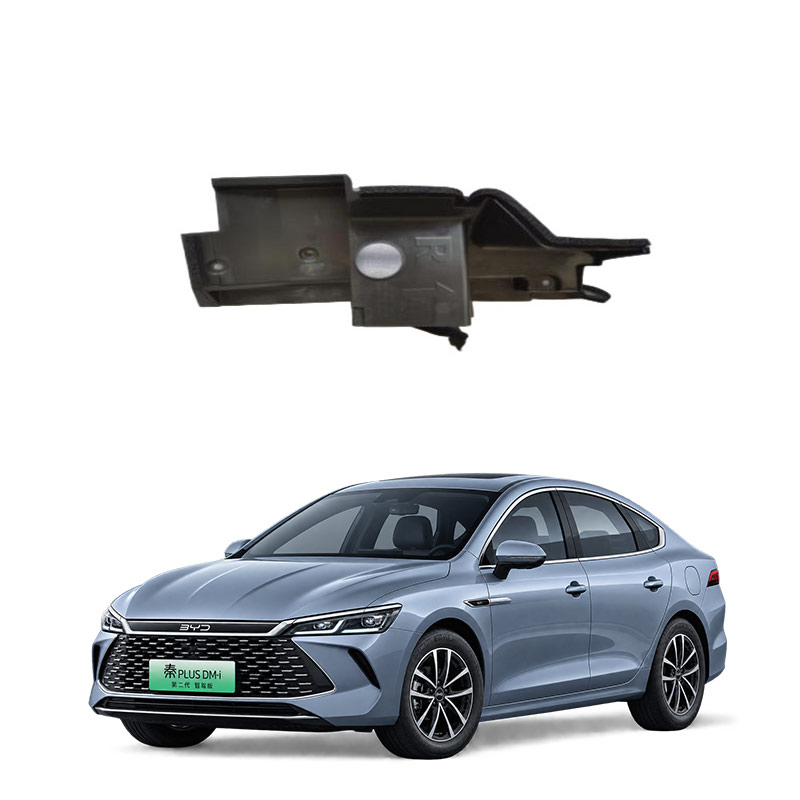

What is the lower guide plate assembly of the car radiator?
The lower guide plate assembly of the car radiator is a plate-like structure combination installed beneath the radiator, used to guide the airflow and protect the bottom components. Its main function is to allow the airflow to flow more orderly through the radiator and the chassis, while also preventing sand and stones from splashing.
Main function
Flow diversion cooling: Guides the airflow to flow in the preset direction through the radiator, helping to remove the heat from the water tank and enhancing the cooling efficiency.
Chassis protection: Prevents debris, dust, and stones from splashing onto the radiator bottom and nearby pipes, protecting them from damage caused by bumps.
Reducing wind resistance: Reduces the turbulent flow at the bottom of the vehicle, lowers wind resistance and lift, and improves stability during high-speed driving.
Common names
In different vehicle models or maintenance materials, it may be called "Radiator Under Guard Plate", "Water Tank Under Diversion Plate", "Water Tank Air Guide Cover", or "Front Grille Under Diversion Plate", basically referring to the same type of component.
Points of confusion
Relationship with "diversion plate": The under plate is a type of diversion plate, specifically referring to the part located below the radiator or the front bumper. It is not the roof diversion cover or the inner lining of the wheel arch.
Relationship with "under guard plate": The under guard plate has a wider range, covering the entire chassis; the under plate focuses more on the area in front and below the radiator.
Daily precautions
The material is mostly plastic, which has some toughness but is afraid of hard impacts. Pay attention to whether it is loose or cracked, especially after driving over potholes. Check the fasteners and screws, and if damaged, they can be replaced separately without affecting the entire vehicle.
The main function of the under plate of the radiator in automobiles is to guide the airflow, enhance cooling efficiency, and also have aerodynamic and protective functions. It is installed below the radiator or at the lower edge of the front bumper, controlling the airflow direction to allow more air to enter the radiator, helping to cool the water tank, and reducing turbulence and lift, improving stability during high-speed driving.
Core function
Guiding airflow for enhanced cooling: Direct the front air intake as much as possible into the radiator to accelerate heat dissipation and prevent hot air from the engine compartment from flowing back and affecting the cooling effect.
Reducing wind resistance and improving stability: Lowering the aerodynamic pressure and suppressing lift, allowing the wheels to better adhere to the ground and preventing drift at high speeds.
Protecting vehicle body components: As a bottom guard plate, it can buffer impacts from small stones and road bumps, reducing damage to critical parts of the vehicle body.
Maintaining the cleanliness of the engine compartment: Acting as a barrier to prevent water and dust from entering the engine compartment through road puddles and dust.
It should be noted
When the lower guide plate is damaged or missing, the heat dissipation efficiency and high-speed stability will be affected. It is recommended to check and replace it in time.
Some models also come with an integrated solution of active grille and air dam, which further optimizes wind resistance and heat dissipation, but the principle is similar to the lower guide plate.
If the lower guide plate of the car radiator is faulty, there are currently no specific maintenance guidelines for this specific component in public information. However, you can refer to the general handling ideas for radiator failures and guide plate damage.
First, determine the type of fault.
"Lower guide plate" may refer to different components in different models. There are two common situations:
Lower radiator guide plate: Located below the radiator or the front bumper, used to guide air flow and assist in heat dissipation, mostly made of plastic.
Lower water chamber/ lower support: A part of the water tank, responsible for storing water or fixing the radiator.
First, determine which type is damaged and the handling method is completely different.
If the guide plate is damaged
Minor damage (scratches, small dents): Does not affect the overall structure and aerodynamics, can be temporarily not replaced, and has little impact on daily driving.
Serious damage (large-scale cracking, breaking, falling off): It is recommended to replace it in time. Missing the guide plate will increase lift force during high-speed driving, reduce rear wheel grip, affect stability and increase fuel consumption.
Maintenance suggestions: If the replacement cost is not high (such as several hundred yuan), it is not recommended to go through the insurance, as it may affect the next year's insurance premium.
If the radiator body or lower water chamber is faulty
Typical manifestations: High water temperature, reduced coolant or leakage, one side of the radiator is cool while the other side is hot, the antifreeze is milky white, etc.
Common causes: Core tube blockage, loose and leaking welding points, water chamber corrosion and perforation, mechanical damage, etc.
Handling methods: Minor leakage can be tried to weld or seal; blockage can be cleaned; severe corrosion or rupture requires replacing the radiator assembly.
If the water temperature warning light is on or steam is emitted from the engine compartment, stop the vehicle immediately and turn off the engine. Do not open the radiator cover while the vehicle is hot. Pressurizing the coolant may cause severe burns.
Suggested troubleshooting steps
Confirm the fault location: Lift the vehicle and check if the lower guide plate is a plastic guide plate or a metal water chamber component.
Check the damage degree: Look for cracks, deformation, detachment or leakage traces.
Evaluate the repair cost: Replacing the plastic guide plate alone is cheaper; replacing the radiator assembly is more expensive. It is necessary to weigh the cost based on the vehicle age and condition.
Consult a professional technician to confirm: Regarding the cooling system, it is recommended to have an on-site inspection by an auto repair technician to provide a solution to avoid misjudgment.
