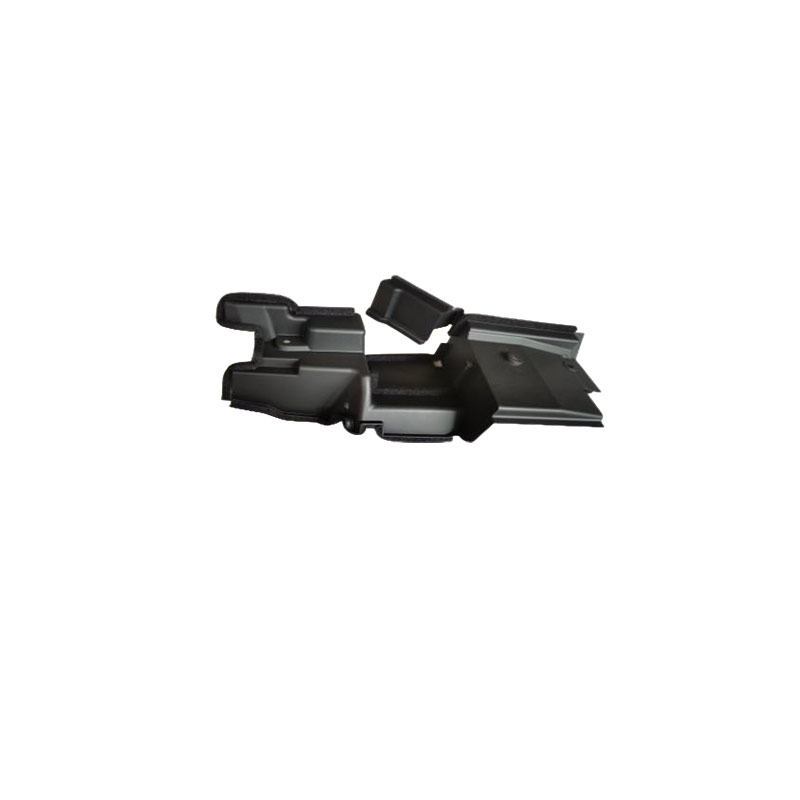

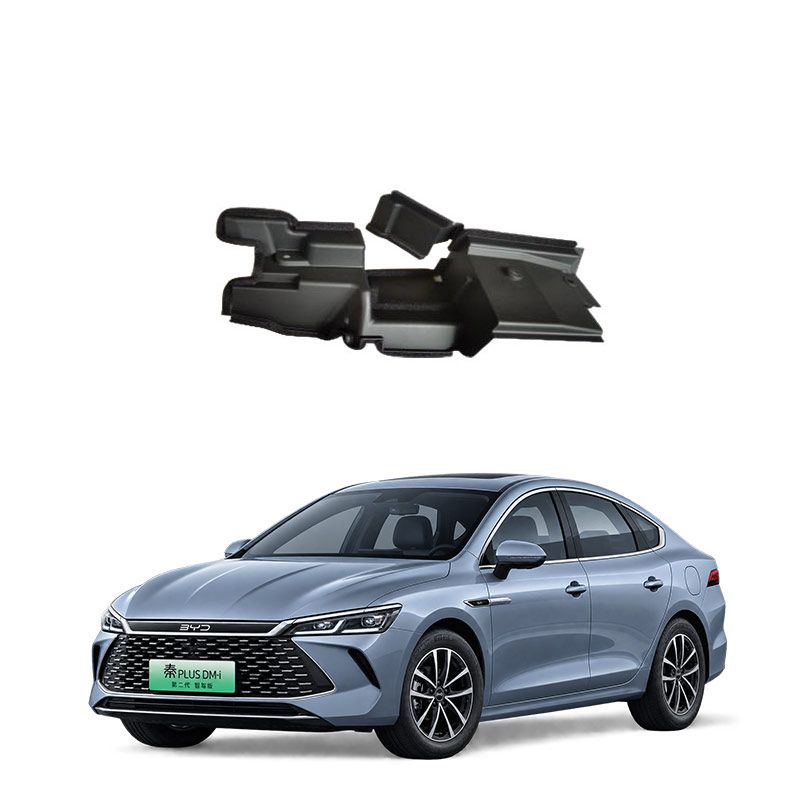

What is the guide plate assembly on the car radiator?
The guide plate assembly on the car radiator is a guiding and regulating structure installed above the radiator, used to direct and regulate the airflow. It is also commonly referred to as the radiator guide plate. It mainly cooperates with the front grille to guide the air entering the cabin to the radiator, improving the heat dissipation efficiency and preventing the hot air from the engine compartment from flowing back.
Main function
Guiding airflow: Allow the wind coming from the intake grille to blow as much as possible onto the radiator to accelerate the cooling of the coolant.
Sealing and isolation: Seal the intake passage to prevent the heat from the engine compartment from flowing back to the radiator and affecting the cooling effect.
Reducing air backflow: Optimize the airflow path to avoid turbulence and ensure stable cooling performance.
Structural features
The upper guide plate usually includes the main flow guide plate, the flexible connecting piece, and the side guide part. These three components are designed with a (acute angle) configuration， which can improve the guiding efficiency and reduce air backflow. The flexible connecting piece can also be used to avoid manual application of sponge strips during assembly.
Points prone to confusion
There is also a guide plate on the radiator， which has similar functions to the upper guide plate assembly， but its position and shape may differ； in addition， the radiator body mainly consists of the water inlet chamber， water outlet chamber， radiator core， and inlet and outlet pipes. The guide plate is an auxiliary structure on the periphery and is not part of the radiator core itself.
The core function of the upper guide plate assembly on the car radiator is to guide the airflow， improve the cooling efficiency， and also provide sealing and structural protection. It is installed above the radiator and is responsible for making the air flowing through the radiator flow more orderly and efficiently， preventing heat from not being dissipated.
Airflow guiding and cooling
The most important function of the upper guide plate assembly is to guide airflow. It is located between the intake grille and the radiator， and can guide the air coming from the grille to blow as much as possible onto the radiator core， accelerating the cooling of the coolant. At the same time， it can prevent hot air from the engine compartment from flowing back to the radiator， avoiding affecting the cooling effect.
Sealing and backflow prevention
The guide plate assembly can seal the intake passage， reducing air leakage through gaps， and allowing the airflow to follow the cooling path "obediently". Patent materials mention that the upper guide plate， through the integrated main flow guide plate， flexible connecting piece， and side guide part structure， can reduce air backflow and avoid insufficient heat dissipation； the flexible connecting piece can also be used to eliminate the need for manual application of sponge strips during assembly， improving the sealing performance.
Structural support and protection
The guide plate assembly is fixed above the radiator and is installed together with the front frame， water tank guard plate， etc.， to provide fixation and support for the radiator， preventing the radiator from shaking during vehicle bumps. It can also prevent direct impact of mud， debris， and other substances on the surface of the radiator， providing certain protection.
Faults of the upper guide plate (guide plate) assembly on the car radiator usually manifest as damage， loosening， or detachment of the guide plate， which will affect the airflow guidance during driving， leading to a decrease in cooling efficiency and an increase in water temperature.
The function of the guide plate is to guide the airflow over the water tank to remove heat. If damaged， the water temperature is prone to be higher during high-speed or climbing.
Common fault manifestations
High water temperature： After the guide plate is damaged， the airflow is chaotic， the cooling efficiency of the radiator is reduced， especially when driving at high speed or climbing， the water temperature rises significantly.
Abnormal noise or vibration： When the guide plate is loose， there will be wind noise or component shaking sounds during driving.
Visible damage on the exterior： From the front of the car， the guide plate may show cracks， fractures， loose fasteners， or overall detachment.
Handling suggestions
First, check the fixed clips: Many problems with the deflector are caused by broken clips or loose screws. Re-tightening or replacing the clips can solve the issue.
Minor damage can be repaired: For plastic deflector plates with minor cracks, they can be repaired using a plastic welding gun or glued with strong adhesive. However, pay attention to the strength after the repair.
For severe damage, replacement is recommended: If the deflector plate is severely broken or deformed, replacing it with a new one is more reliable. Otherwise, it will affect the heat dissipation effect.
By the way, clean the radiator: After removing the deflector plate, you can also clean the surface of the radiator of debris and dust, which can further improve the heat dissipation efficiency.
Attention
If the water temperature warning light comes on or steam is emitted from the engine compartment, immediately pull over to the side of the road and turn off the engine. Do not continue driving; otherwise, the engine may be damaged.
After replacing the deflector plate, pay attention to whether the water temperature returns to normal; if it is still high, you also need to check the thermostat, water pump, fan and other components.
