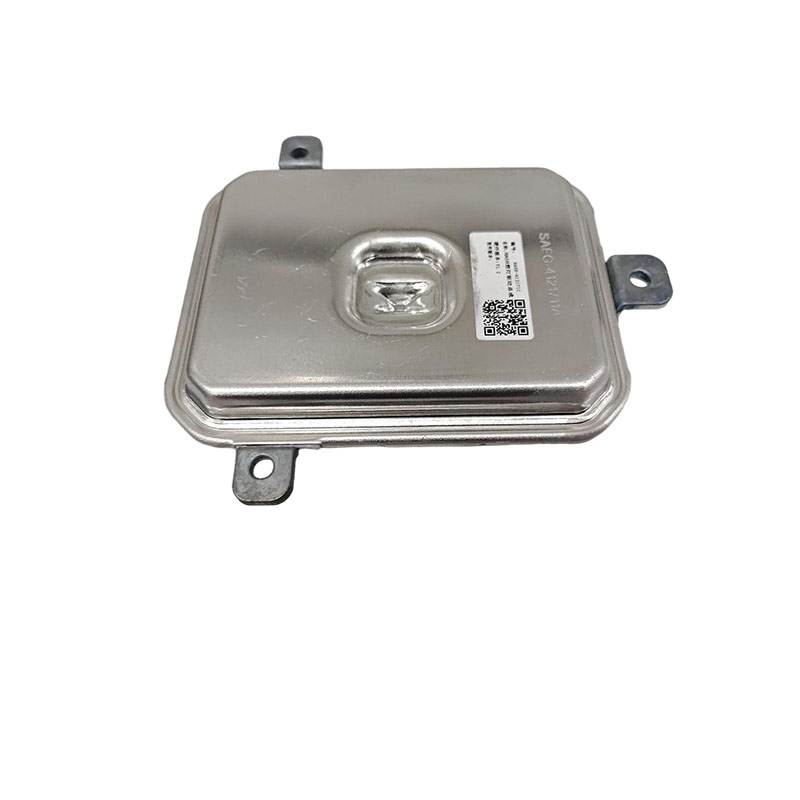

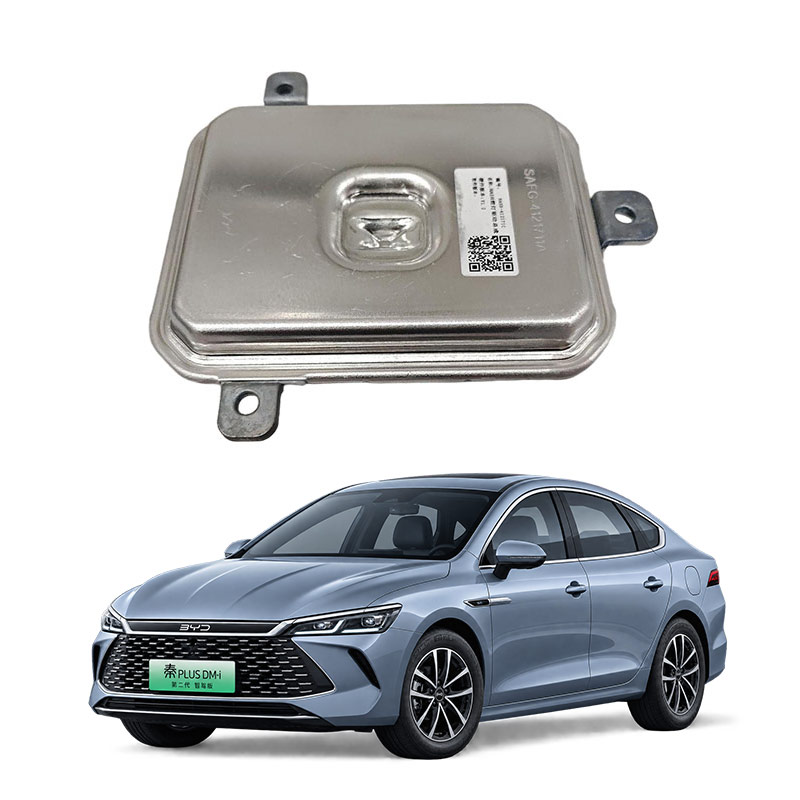

What is the right combined front headlight driving assembly for the car?
The right-side integrated front headlight driver assembly of a car is the electronic core component that controls the operation of the right front headlights. It is equivalent to the "brain and heart" of the headlights, responsible for supplying power to the light sources, stabilizing the current, and performing intelligent control.
It is not a single part but a module or circuit board assembly that integrates power management, signal control, and protection functions. The specific functions are as follows:
Power supply and voltage stabilization: Convert the vehicle's 12V or 24V voltage into the working voltage and current required by LED or xenon lamps, ensuring stable brightness without flickering or attenuation.
Intelligent control: Switch between near-light, far-light, daytime running light, and turn signal modes, supporting adaptive front lighting system (AFS) and adaptive driving beam (ADB), automatically adjusting the light pattern based on steering or road conditions.
Fault protection: Has overvoltage, overcurrent, overheat, and short-circuit protection. In case of an abnormality, it automatically cuts off power or reduces the load to prevent burning out the lamp beads or the circuit.
Communication interaction: Communicates with the vehicle's main control via CAN bus, reporting status and receiving control instructions, enabling functions such as automatic headlights, home-away lighting, etc.
The "integrated" part means that this component integrates the control of various light sources such as high beam, near light, turn signal light, and daytime running light, rather than simply driving a single bulb.
The hardware schemes of the driver boards for different models vary. Some use automotive-grade MCUs and dedicated LED driver chips, while others use domestic chips or international chip solutions, but the core logic is the same.
When repairing or modifying, it is necessary to note: The driver assembly must match the vehicle model and the type of light source. Incompatible interface specifications can lead to fault codes, abnormal lighting, or even circuit burnout.
The core function of the right-side integrated front headlight driver assembly is to stabilize power supply and precisely control the lights. It is equivalent to the "housekeeper" and "bodyguard" of the headlights.
Specifically, it mainly does the following:
Stable current and voltage conversion: Convert the 12V or 24V voltage in the vehicle into the low-voltage direct current required by LED lamp beads, ensuring a constant current. Excessive current will cause the LED to age prematurely, while too little will not be bright enough.
Intelligent dimming and function control: Receives instructions from the vehicle's CAN/LIN bus to control the on/off and brightness of different light groups, such as near-light, far-light, daytime running light, and turn signal light, and can also achieve effects like flowing turn signals and matrix zone lighting.
All-weather circuit protection: Has overvoltage, overcurrent, overheat, and short-circuit protection. For example, it cuts off power immediately when the voltage suddenly increases, reduces frequency and temperature when overheating, and prevents circuit burnout.
Drive actuator: For headlights with follow-up steering or automatic dimming functions, the driver board also controls the internal stepper motor to make the lens or light group rotate precisely at the desired angle.
If the driver assembly fails, it may cause the lights to flicker, some lights to fail to light up, or the entire set of headlights to fail.
The failure of the right-side integrated front headlight driver assembly is usually manifested as the right front headlights not lighting up, flickering, or losing functionality. Common causes include damage to the driver module, poor contact in the wiring, blown fuses, or communication failures.
Common causes
Driver module damage: The headlight driver module is the core component that controls the operation of the headlights. Water ingress, aging, or overheating can cause its failure, especially for LED headlights which rely heavily on module power supply.
Wiring or plug issues: Loose plugs, pin detachment, broken wiring harness, or short circuits can prevent the driver assembly from receiving normal signals or power.
Fuse blowout: A blown fuse will cut off the power supply to the headlights, which is the first point to check when troubleshooting.
Communication failure: Many modern vehicle headlights are controlled via CAN bus. If the communication lines are interrupted, the driver assembly cannot work properly.
Troubleshooting suggestions
Check the fuse first: Open the fuse box and find the fuse corresponding to the headlights according to the vehicle manual. Check if it has blown.
Check the plugs and wiring harness: Open the engine compartment and inspect whether the plugs behind the headlights are oxidized or loose, and whether the wiring harness is damaged or has bite marks.
Read the fault codes: Use the OBD diagnostic tool to read the fault codes, which can quickly identify whether the problem lies in the drive module, communication lines, or other aspects.
Check the lamp seal: If the lamp has been waterlogged, the module is prone to damage. Check if the lamp housing is cracked or has poor sealing.
Notes for Attention
If the vehicle is still under warranty, it is recommended to handle the issue directly at the 4S store, where free replacement or repair can be provided.
When it comes to problems related to the drive module or complex wiring, it is not advisable to attempt repairs yourself. It is better to seek professional maintenance personnel to avoid the expansion of the fault or the emergence of safety hazards.
If it is confirmed that the drive module is damaged, after replacement, some models may require computer programming or matching to restore normal functionality.
