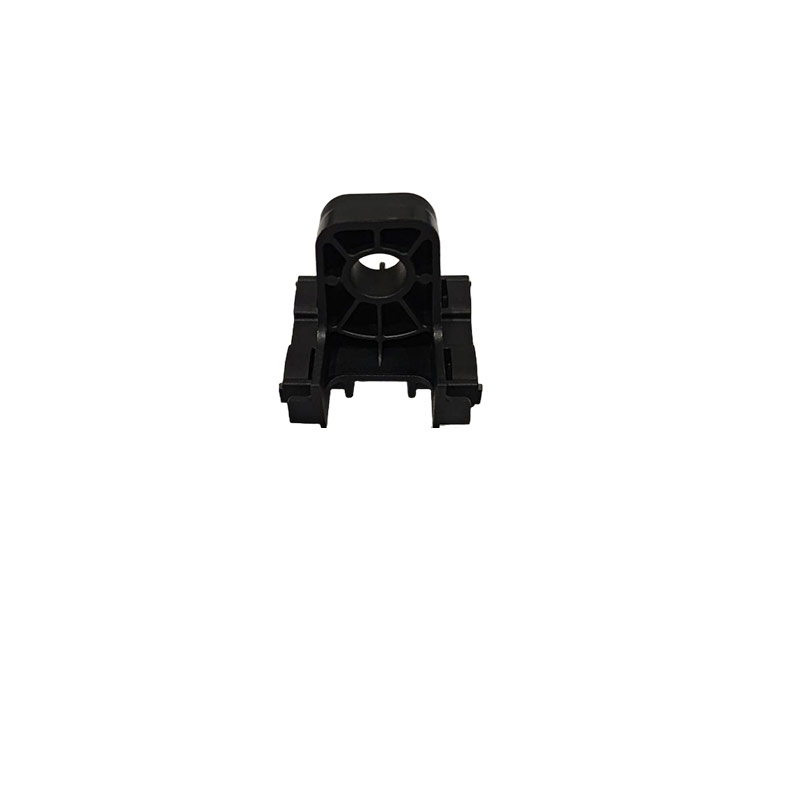

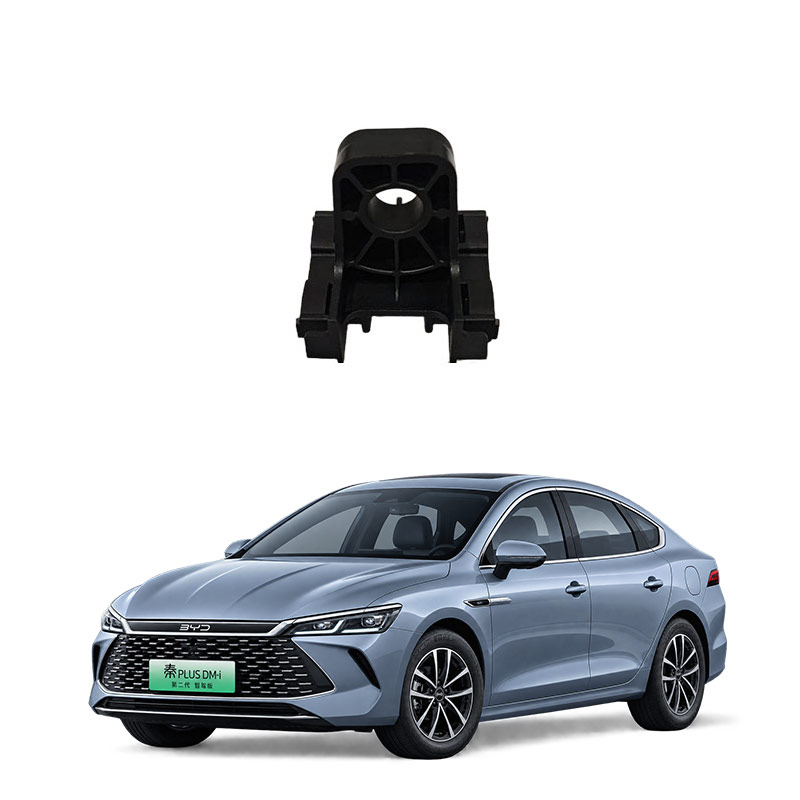

What is the automotive integrated headlight compartment?
The automotive modular headlamp compartment is not a standardized automotive engineering term. It usually refers to the area at the front of the vehicle where multiple lighting functions are integrated into a single lamp housing, which is placed on both sides of the vehicle's front and is commonly known as a "combined headlamp" or "headlamp assembly".
The core concept is: instead of installing the high beam, low beam, turn signal, and position light (front position light) separately, they are all placed in the same lamp housing to form an integrated structure.
Main features
Function integration: All the functions such as high beam, low beam, turn signal, and headlamp are integrated into one lamp housing, which saves space and is beneficial for the overall vehicle design.
Structural composition: Generally, it consists of a lamp housing, lamp cover, lamp bulb (or LED module), reflector, light distribution mirror, and wiring interface.
Design advantages: The manufacturer can design the light distribution mirror according to the styling requirements, thereby optimizing the aerodynamic characteristics, fuel economy, and appearance.
Difference from "combination switch"
What is easily confused is the "combination switch" - it is a control device installed under the steering wheel on the steering column, used to operate the headlights, turn signals, wipers, etc., and it is not the lamp itself.
The core function of the automotive combined front headlight compartment is to integrate the functions such as high beam, low beam, front turn signal, and front position light (headlamp) into one lamp housing, achieving the integration of lighting and signaling.
Main function
Lighting and Signal Integration: By integrating multiple lighting functions within a single lamp housing, it not only illuminates the front road but also simultaneously fulfills functions such as steering and width indication signals. This is the core safety device for vehicles during night driving and in low visibility conditions.
Improving Aerodynamics and Appearance: Through an integrated design, manufacturers can freely shape the lamp cover and optimize the airflow at the front of the vehicle, reducing wind resistance while enhancing the overall appearance and recognition of the vehicle.
Protecting Internal Components: The lamp housing serves as a physical barrier, protecting the internal precision components such as bulbs, lenses, and wiring from external factors like moisture, dust, and debris impact, thereby extending the lifespan.
Common Integrated Functions
Narrow Beam Light: Illuminates the area 30-50 meters in front of the vehicle. Used for overtaking or in urban roads to avoid dazzling oncoming vehicles.
Far Beam Light: Can illuminate up to 100 meters. Suitable for highways or rural roads without street lights.
Front Turn Signal: Amber flashing, indicating the intention to turn or change lanes.
Front Position Light (Width Light): Displays the vehicle's width and position, especially in poor lighting conditions, to alert other road users to avoid.
Front Fog Light: Integrated in the lamp housing for rain and fog conditions, providing stronger penetration.
Comprehensive Design also implies that if part of the functions are damaged, the entire headlight assembly may need to be replaced, resulting in higher repair costs compared to single lamps.
Common Headlamp Assembly Failure in Cars: Usually refers to problems within the headlamp assembly, such as lamp bulbs, wiring, seals, or dimming structures malfunctioning. Common symptoms include no lights, water accumulation and fogging, flickering lights, or inability to turn off the lights.
Common Fault Types
Lamp Bulb Failure: The most common, with the filament burned out or blackened, replacing the same specification bulb is sufficient. Note the model (e.g., H7, H1) for older models.
Combined Switch Failure: The multi-function switch controlling the lighting signals, with dirty or burned-out contacts causing intermittent operation of the lights and inability to turn off.
Water Intrusion and Fogging: Condensation due to temperature difference is normal. It dissipates after 30 minutes of turning on the lights; if there are obvious water droplets or water accumulation, it indicates aging seals, loose rear covers, or cracked lamp housings.
Circuit Issues: Relays stuck, fuses blown, or poor grounding and short circuits in the wiring can cause the lights to stay on or not turn off.
Frame Breakage or Poor Dimming: Insufficient frame strength or design issues with the dimming structure can cause light shape jitter.
Quick Troubleshooting Steps
First, check the lamp bulb: Remove the bulb cap and inspect if the filament is burned out or blackened, and check if the contacts are oxidized.
Check the fuse and relay: Locate the fuse box according to the vehicle manual and check if the corresponding fuse is blown, or if the relay is stuck.
Check the sealing condition: Check if the rear cover is tightened, if the sealing ring is aged, and if the lamp housing has cracks.
Test the battery voltage: A voltage below 12V may cause insufficient power supply to the lights, requiring charging or replacing the battery.
Read the fault code: For issues involving control modules or complex circuits, use an OBD diagnostic tool to locate and do not blindly disassemble parts.
Before conducting circuit operations, first turn off the vehicle and disconnect the negative battery terminal. Safety first.
Notes for Attention
Don't worry about the slight fog. It will naturally disperse after turning on the light. However, if there is repeated water infiltration or accumulation, it must be dealt with promptly. Otherwise, it may damage the bulb, the plug, or even the wiring.
Avoid using high-power or modified bulbs (such as halogen bulbs over 55W). It is prone to overloading and damaging the wiring.
After the lamp cover gets wet, don't use an electric hair dryer to vigorously dry it. The plastic lamp cover is likely to melt and the damage will be irreversible.
Improperly sealing with your own glue can make the situation worse. In serious cases, it is recommended to go to a professional repair shop.
