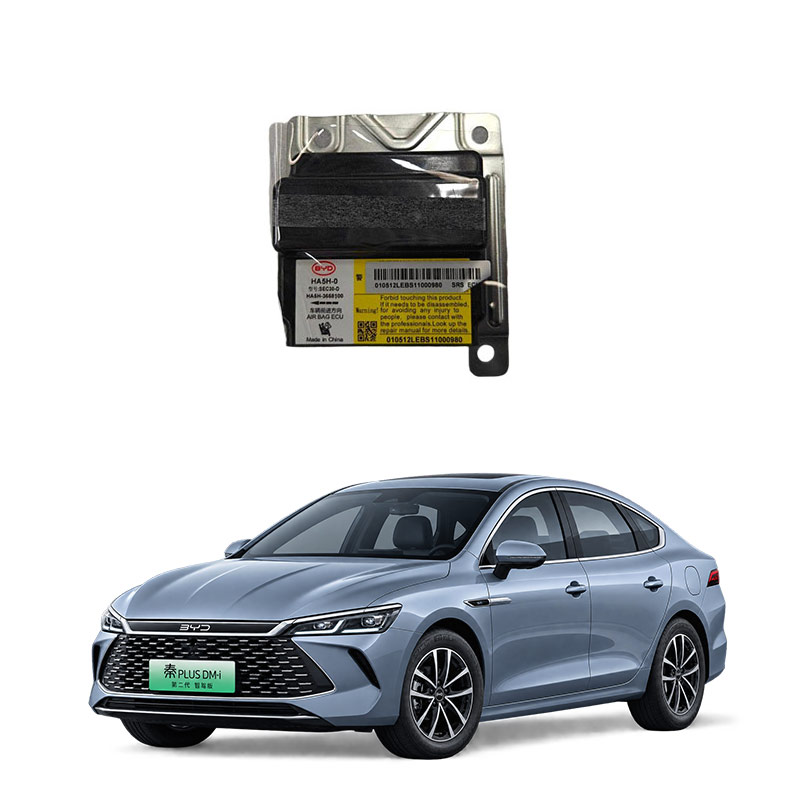

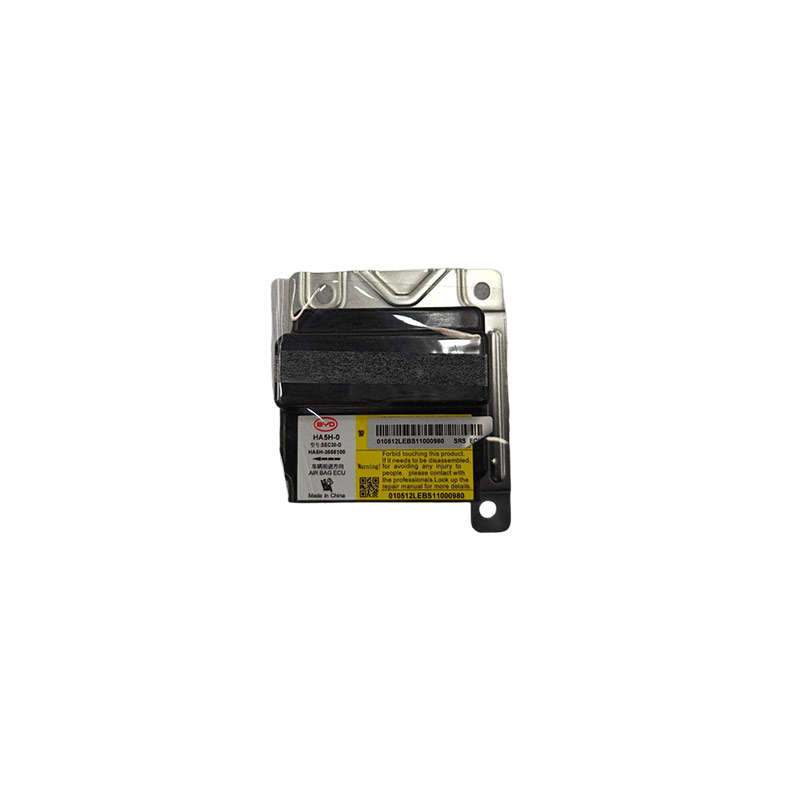

What is an automotive electronic control unit?
The automotive electronic control unit (ECU) is the "brain" of the vehicle, essentially a miniature computer composed of integrated circuits, which receives sensor signals, processes data, and then issues instructions to actuators to control engine, transmission, chassis, body and other functional systems.
What does it consist of?
Input circuit: Preprocesses the signals from sensors, removes noise, and converts them into voltage signals that the microprocessor can accept.
A/D converter: Converts analog signals from sensors such as air flow and water temperature into digital signals because the microcomputer can only process digital signals.
Microcomputer: The core processing unit, including CPU, memory, input/output interfaces, etc., responsible for computing, logical judgment, and storing operation and fault information.
Output circuit: Converts the instructions from the microcomputer into control signals that can drive actuators and amplifies the signals.
What does it do mainly?
Signal processing: Receives sensor signals and provides reference voltages such as 2V, 5V, 9V or 12V to the sensors.
Calculation and control: For example, in engine control, the ECU can perform ignition control, fuel injection control, idle control, emission control, intake control, and boost control.
Fault diagnosis: Stores fault information and outputs it for easy reading during maintenance.
How does it work?
After the engine starts, the ECU enters the working state and retrieves the control program from the memory. Sensors continuously input information such as speed, load, and temperature. The ECU processes this information through the input circuit and A/D conversion, compares it with the pre-stored "optimal test data" in the memory, makes a judgment, and then issues an instruction signal to control the actions of actuators such as fuel injection timing and ignition timing. This process can be corrected hundreds of times per second, with high control accuracy.
Current trends:
Traditionally, each ECU was responsible for a single function. The number of ECUs on vehicles once increased from dozens to over 100. Now, it is evolving towards a "domain centralized and 'central computing + regional control'" direction, integrating dispersed functions into domain controllers, then developing to regional controllers, and ultimately aiming to form a unified central brain for the vehicle. Common ECU types include engine control module (ECM), transmission control unit (TCU), body control module (BCM), battery management system (BMS), and vehicle control unit (VCU), etc.
Core function
Signal Reception and Processing: Receive input signals from various sensors (such as speed, temperature, throttle opening), convert analog signals into digital signals for processing by the microprocessor.
Data Calculation and Judgment: Based on the memory program and pre-stored optimal test data, perform logical operations and comparisons on the input information to make control decisions.
Output Execution Instructions: Convert weak signal instructions into strong signals that can drive actuators (such as fuel injectors, ignition coils, relays) to complete control actions.
Self-Diagnosis of Faults: Store operation and fault information, output fault codes, facilitating maintenance and inspection.
Power Supply for Sensors: Provide stable reference voltages (such as 2V, 5V, 9V or 12V) to the sensors.
Typical Control Examples
Engine Control (ECM/EMS): Control fuel injection timing and fuel quantity, ignition timing, idle speed, emissions and boost, correcting hundreds of times per second, with very high control accuracy.
Transmission Control (TCU): Control shift timing, working in coordination with ECU for smooth shifting.
Body Control (BCM): Coordinate with lights, windows, wipers, door locks, etc., notifying each module to enter sleep mode and save power when locking the car through the CAN bus.
Chassis and New Energy Control: Including brake system solenoid valves, suspension system solenoid valves, battery management system (BMS), and vehicle control unit (VCU), etc.
Multiple ECUs have a peer-to-peer collaborative relationship and communicate through the CAN bus for negotiation. For example, when accelerating suddenly, the TCU needs to downshift first and "notify" the ECU, and the shift will be smooth if the coordination is appropriate.
ECU Hardware consists of input circuits, A/D converters, microcomputers (MCUs), and output circuits. The automotive electronic architecture is evolving towards domain concentration and "central computing + regional control", with increasing integration of ECUs, becoming the core carrier of software-defined vehicles.
