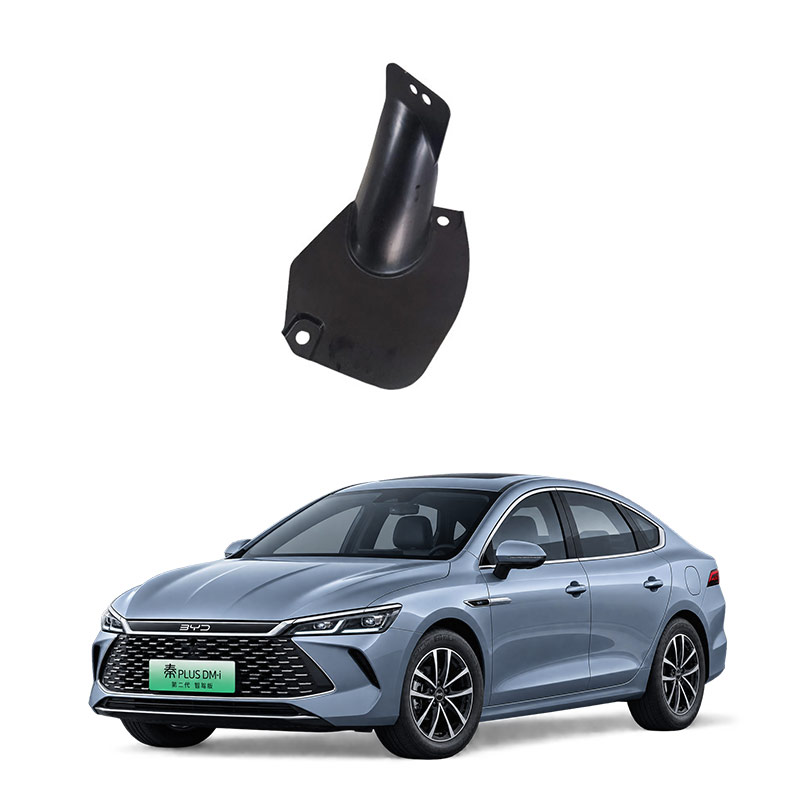

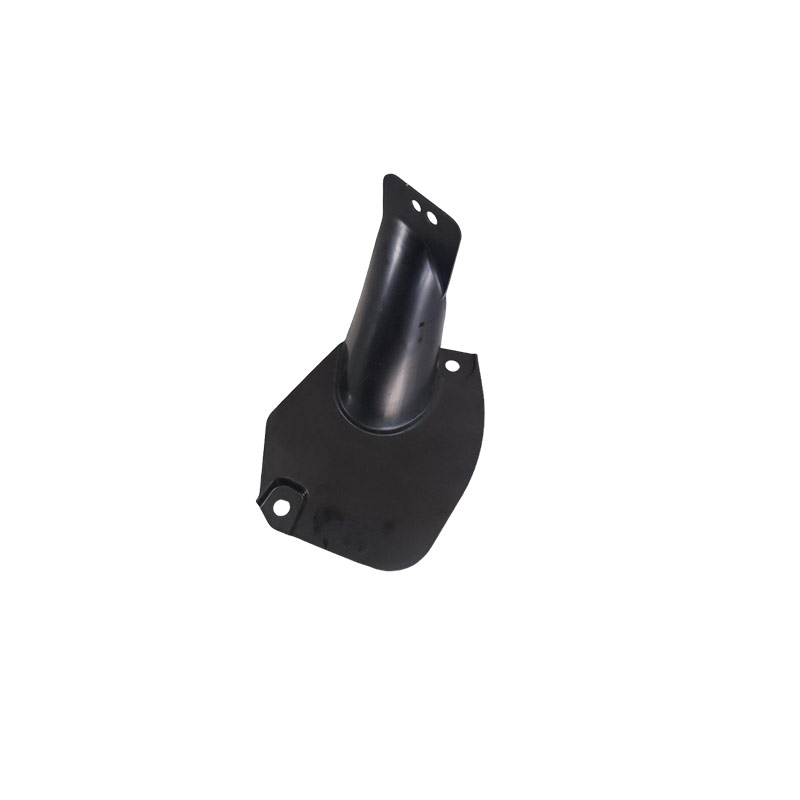

What is the dust cover assembly for the universal joint of a car?
The dust cover assembly for the automotive universal joint, often referred to as a dust cover or a ball cage dust shield, is a component that wraps around the outside of the universal joint and serves the functions of sealing and protecting. It does not transmit power. Its main role is to prevent sand, water vapor, and dust from entering the interior of the universal joint, while also locking the internal lubricating grease from leaking out.
Main function
Dust and water resistance: It blocks sand, water vapor and other impurities from entering the internal part of the precision ball cage.
Locks the lubricating grease: Prevents the leakage of internal grease, ensuring that the universal joint remains lubricated under high temperature and multi-angle deflection.
Protects transmission lifespan: Once damaged, it will cause abnormal noise, slipping, steering jamming, and even failure of the entire half shaft, doubling the repair cost.
Common structures and materials
Structure: The main body is a wavy elastic sleeve, with openings at both ends, which are tightened and fixed by metal clamps (bolts). The patent technology also features multi-layer material composites and alternating peaks and valleys to enhance overall strength.
Material: Commonly rubber or TPU (Thermoplastic Polyurethane) elastic materials, resistant to oil and cold, and not prone to cracking after repeated bending; some clamps use 304 stainless steel, with stable rebound and no slipping.
Usage and maintenance tips
Life expectancy: According to national standards, it should be no less than 80,000 kilometers. However, actual mileage may be affected by road conditions and temperature differences. In areas with heavy rain in the south and dusty conditions in the north, it is necessary to pay attention in advance.
Replacement signal: If there is a "clicking" or "cracking" abnormal noise during turning, or if the dust cover cracks are found during inspection, it is necessary to replace it in time. It is possible to replace only the dust cover repair kit (including clamps and lubricating grease) without replacing the entire half shaft.
Initial symptoms of dust cover damage are not obvious. It is recommended to check it during each maintenance, especially after experiencing rough roads or water immersion, to avoid greater maintenance costs in the future.
The core functions of the car universal joint dust cover (also known as dust cover) are two points: to prevent dust, sand, and water vapor from entering the internal part of the universal joint, and to prevent the loss of internal lubricating grease.
It is equivalent to the "sealing protection cover" of the universal joint, directly related to the lifespan of the transmission system and the smoothness of driving.
Specific functions
Sealing and dust prevention: Blocks external sand, water and impurities from entering the ball cage interior, avoiding abnormal wear of the raceway and steel balls.
Lubricating oil preservation: Prevents the leakage of internal lubricating grease, ensuring the universal joint maintains good lubrication under high speed and multi-angle deflection.
Ensuring smooth power transmission: Maintains internal cleanliness and lubrication to make power transmission more crisp, reducing abnormal noise and shaking during steering or acceleration.
Preventing failure: If the dust cover is damaged, sand and water will enter, causing wear of the ball cage, increased gap, and in severe cases, fracture of the ball cage, making the vehicle unable to move.
Maintenance reminder
The dust cover is a wear-prone part. It is necessary to regularly check for cracks, whether the clamps are loose, and replace the dedicated lubricating grease according to the maintenance cycle.
If there is a "click" or "crackling" abnormal noise during acceleration, deceleration or steering, it may be due to lack of lubricating oil or damage to the universal joint. It is recommended to check it as soon as possible.
The failure of the car universal joint dust cover (usually referring to the dust cover) has the most direct impact of "sealing failure", resulting in lubricating oil leakage, water and sand intrusion, and accelerating the wear and even fracture of the universal joint. The following are the common failure manifestations, causes and handling methods.
Failure manifestations
Abnormal noise: Hearing "clicking", "cracking" or "hissing" sounds during turning, accelerating or bumping, which may be caused by the damage of the dust cover after internal wear.
Lubricating oil leakage: Visible oil stains around the dust cover indicate that the lubricating grease has leaked, and the sealing has failed.
Shaking: Abnormal shaking of the vehicle body or steering wheel during driving, especially in specific speed ranges during acceleration, deceleration or specific driving conditions.
Steering abnormality: The steering wheel becomes heavier, gets stuck, has difficulty returning to position, or the steering is uneven.
Key reminder
It is not recommended to continue driving after the dust cover is damaged. Sand entering will quickly wear the ball cage or cross shaft, and in severe cases, cause the universal joint to fracture, making the vehicle lose power, posing safety hazards.
Handling suggestions
Timely inspection: Lift the vehicle and check for any cracks, damages, loose clamps or oil stains on the dust cover. If the rubber is aging and cracking, it needs to be replaced.
Early and low-cost repair: If the dust cover is just broken and the internal parts haven't worn out yet, only replacing the dust cover and reapplying lubricating grease can be done, which is less costly.
Severe wear requires replacement of the entire assembly: If there are obvious abnormal noises or vibrations, the internal cross shaft, ball bearings or ball cage may have worn out. It is necessary to check and replace the universal joint assembly; simply replacing the dust cover is not enough.
Daily maintenance: It is recommended to inspect the dust cover once every 60,000 kilometers; for areas with frequent non-paved roads, high humidity or large temperature differences, it is recommended to inspect every 40,000 kilometers.
