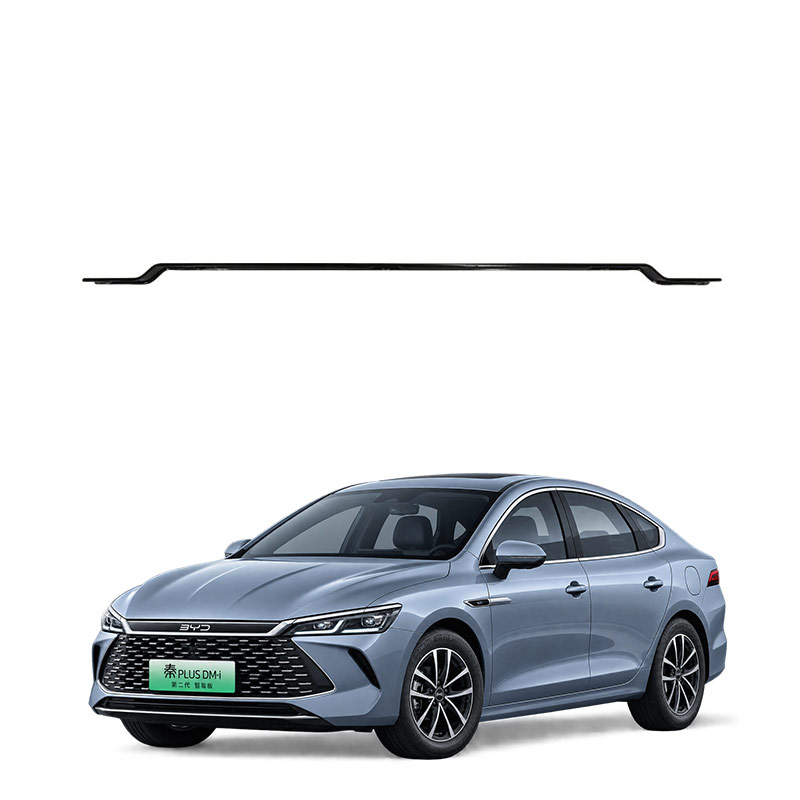

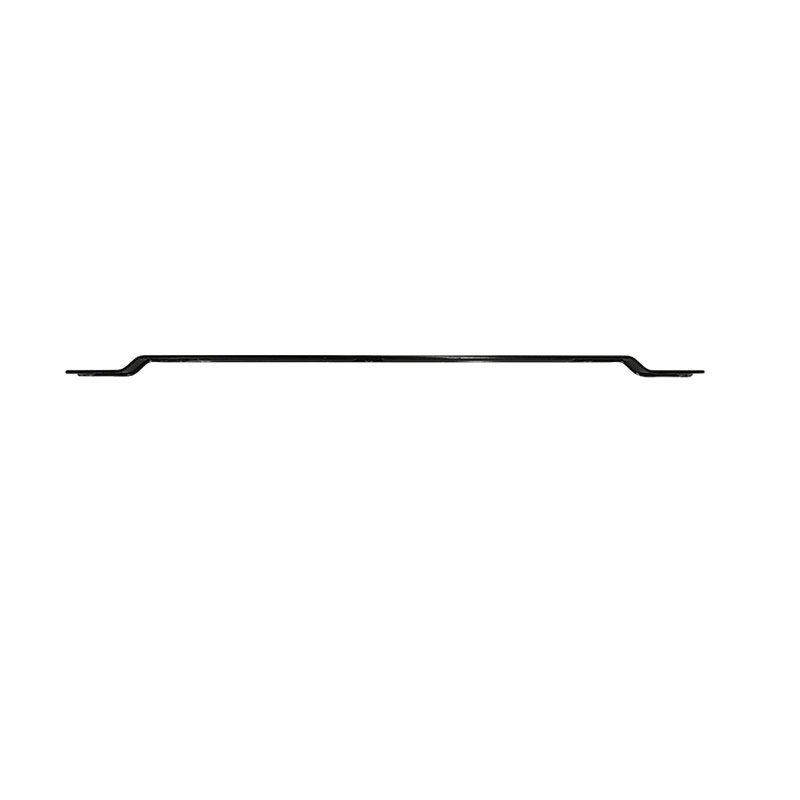

What is the mud guard bracket assembly for the front sub-frame of the car?
The front sub-frame mudguard support assembly is a structural component installed on the front sub-frame of the vehicle, used to fix and support the mudguard (fender). It belongs to the load-bearing connection parts in the vehicle body chassis accessories. Its functions are as follows:
- Fixing the mudguard: Securely connecting the mudguard to the front sub-frame of the vehicle or the inner lining of the wheel arch to prevent it from shifting or falling off during driving.
- Withstanding load and vibration: During driving, the impact of sand, mud, water, and air flow on the mudguard system is continuous. The support needs to have sufficient rigidity and torsional resistance to avoid the detachment of the mudguard adhesive or abnormal sounds.
- Protecting the vehicle and chassis: By firmly fixing the mudguard, it prevents mud, stones, and debris from splashing onto the vehicle's paint surface, chassis tie rods, ball joints, etc., reducing the risk of rust and damage.
This type of support is usually made of high-toughness modified PP + glass fiber composite structure or metal materials. The bottom snap fasteners need to match the arc of the vehicle body's sheet metal to ensure a secure installation. Some models' support assemblies are provided as a complete accessory, such as the "left mudguard support assembly" of Honghan Heavy Truck, which is an independent purchasing part.
It should be noted that the design of the support for different vehicle models varies greatly. Some are integrated with the wheel arch inner lining, while others need to be installed separately. When replacing or adding, it is recommended to check the compatible support model and installation holes for the vehicle model.
The core protective function is to fix and support the front mudguard, allowing it to be securely installed behind the wheels, continuously blocking the splashing of mud and sand.
This component does not directly block the mud; instead, it acts as a "framework" and "connector", firmly fixing the mudguard to the vehicle or chassis to prevent loosening, detachment, or deformation during driving, ensuring a stable protective effect.
Core protective functions:
- Protecting the vehicle paint surface: Blocking the stones and mud rolled up by the tires from splashing onto the vehicle, avoiding scratches and corrosion of the paint.
- Preventing chassis components from rusting: Reducing the direct splashing of mud onto the tie rods, ball joints, suspension connecting rods, etc., of metal components, delaying rusting and aging.
- Protecting the engine compartment: Preventing dirt from covering the engine and affecting heat dissipation, and blocking water and dust from entering the engine compartment.
- Improving driving safety: Reducing the splashing of mud onto the windshield or rearview mirror, maintaining clear vision; also avoiding splashing objects interfering with pedestrians and other vehicles.
The special contribution of the support assembly:
- Stability and durability: The support keeps the mudguard from shaking or falling off during high-speed driving or bumpy roads, ensuring a long-term protective effect.
- Adaptability and aesthetics: The supports designed for different vehicle models make the mudguard fit the arc of the wheel arch, balancing protective performance and overall vehicle aesthetics.
- Protecting precision components: For electric vehicles, the support ensures precise coverage of the mudguard, indirectly protecting the chassis battery pack, radar, and camera sensors.
For some models, the original factory reserves installation positions but does not install the mudguard. When adding or replacing it later, the support assembly is the key component to ensure a secure and tight fit.
When the front sub-frame mudguard support assembly fails, the core manifestations are loose, cracked, or broken support. The root causes are usually loose bolts, vibration fatigue, or material defects. Such problems occur in both heavy trucks and passenger cars, although they are not directly fatal, they may cause secondary damage. It is recommended to investigate and resolve them as soon as possible.
Cause of the malfunction
Loose or脱落 bolts： The most common cause. The analysis of the broken heavy truck fender bracket shows that the connecting bolts were abnormally loose, causing the restraint to fail. Under alternating loads， stress concentration and fatigue cracks were triggered， eventually leading to fracture.
Vibration fatigue： The bracket is a cantilever structure. During vehicle bumps， the amplitude is amplified， and the welded or bent corners are subjected to cyclic stress. After long-term accumulation， cracking occurs. The failure analysis of the fender bracket of a certain model through real vehicle road spectrum load testing confirmed that the lowest fatigue life area was consistent with the actual fracture position.
Material or process defects： Excessive non-metallic inclusions in raw materials can promote crack initiation； insufficient heat treatment and cooling result in insufficient strength， which is also one of the reasons for recalls.
Quality differences of aftermarket parts： There are cases showing that the threads of aftermarket brackets have large tolerance， poor metal ductility， and stress release occurs repeatedly under bumps， causing slight deformation of the base. The brackets become looser over time； original factory parts usually have better structural design and process control.
Handling suggestions
Check first, then act: Lift the vehicle, check if the connecting bolts between the support and the frame are loose, whether there are cracks in the support body, and if the rubber buffer elements are aging and cracking.
Prioritize tightening or local repair: If the bolts are loose, re-tighten them according to the standard torque; if the crack does not exceed one-third of the circumference, consider welding, but welding is prohibited on the frame body to avoid changes in material properties and stress concentration.
Select the right parts when replacing: In most cases, replacing the support or rubber sleeve alone is sufficient, and it is not necessary to replace the entire assembly. It is recommended to use original factory parts or high-quality accessories to avoid short lifespan and frequent failures of aftermarket parts.
Perform four-wheel alignment after repair: For suspension components disassembly and assembly, it is recommended to conduct data-based four-wheel alignment to restore the suspension geometry and avoid deviation or tire wear.
If the vehicle is still within the warranty period, it is recommended to directly contact the 4S store for handling to avoid damaging the warranty by disassembling it yourself. If the fault involves batch-quality issues, pay attention to whether there are official recall notifications, and confirm through the National Market Supervision Administration Recall Center website or official customer service.
