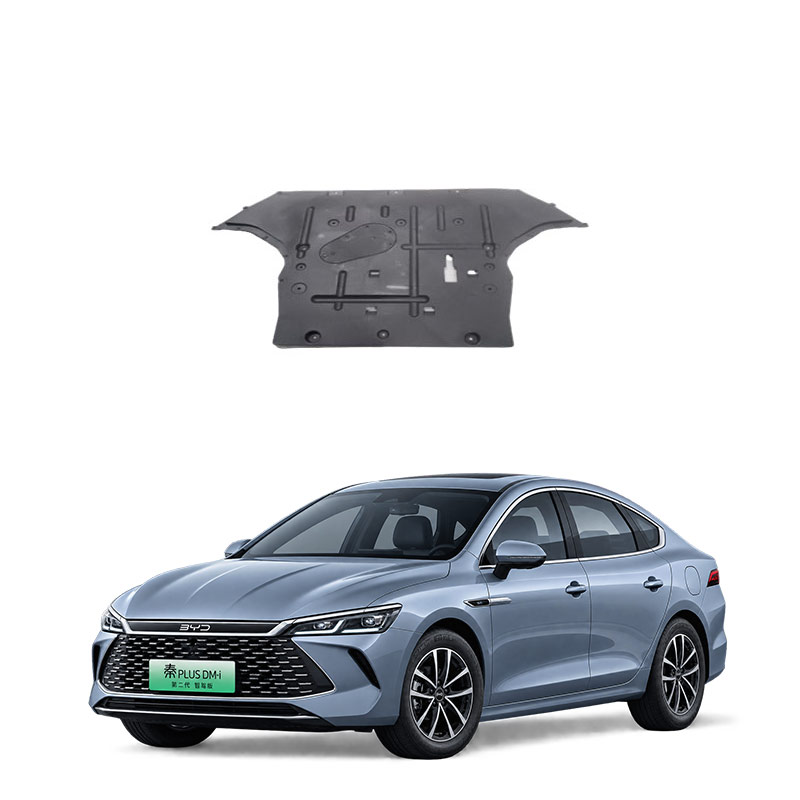

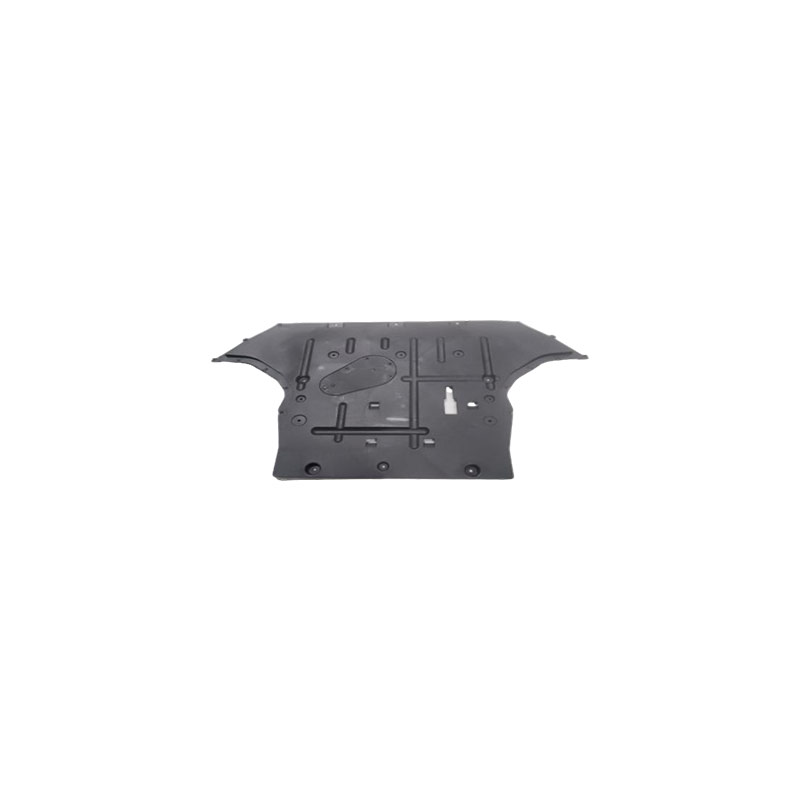

What is the mud guard component for the front sub-frame of the car?
"The front sub-frame mud guard component of a car" refers to the mud guard plate-like component installed near the front wheels, used to prevent mud and sand from splashing. It is commonly known as the front mud guard or the inner lining of the wheel arch. This component is usually installed behind the outer frame of the wheels or in front of the front wheels, made of rubber, engineering plastics, or metal, protruding about 5 centimeters from the body. Its main functions are:
- Guarding against mud and stones: Mud and water splashed up by the tires will be blocked by it, preventing direct damage to the car paint and chassis components.
- Preventing rust and corrosion: Reducing the adhesion of mud and water to metal parts such as chassis rods and ball joints, delaying rusting.
- Keeping the body clean: During rainy days or on muddy roads, the sides of the vehicle and the areas around the doors are less likely to be dirtied, and it can also reduce the frequency of washing the car.
Common materials and installation points:
- Common materials: High-quality rubber, engineering plastics (such as PP + ASA modified materials), and for some models, metal (aluminum alloy, stainless steel). Rubber and modified plastics are flexible and resistant to impact, and do not crack easily at low temperatures; metal has high hardness but is heavier.
- Installation position: Front wheel mud guards are generally fixed to the lower frames on both sides, while rear wheels are fixed to the rear bumper.
- Installation method: Most are vehicle-specific, using original vehicle holes or snap-in fasteners for fixation, without drilling and without damaging the vehicle; for some models, a few screws need to be removed and reinstalled.
Note: Installing a mud guard will slightly reduce the chassis height, which may affect the vehicle's maneuverability, and will also increase a bit of wind resistance and tire noise at high speeds. If you often drive on muddy or non-paved roads, installing one is very practical; if you mainly drive on highways and paved roads, you can decide based on your needs.
The front sub-frame mud guard component on a car (also known as the front wheel inner lining mud guard) that fails needs to be decided whether to repair or replace based on the extent of the damage. Minor cracks can be repaired by bonding with automotive-specific plastic glue or epoxy resin, and left to cure for 24 hours until the glue is fully solidified.
Moderate cracks: Long cracks or partial damage, with insufficient glue strength, can be reinforced by drilling holes and using self-tapping screws combined with metal sheets or rubber pads.
Severe fractures or detachment: If the component fractures, the snap-in mechanism fractures, or the entire piece detaches, it is recommended to replace the new part directly, rather than attempting to repair it.
These components mainly function to block the mud and sand that the wheels roll up from splashing onto the body and the chassis, protecting the car paint and mechanical components. After damage, continued driving can cause mud and sand to enter the engine compartment and suspension system, accelerating corrosion and wear over time.
Determining the extent of the damage:
- Minor cracks: Surface with fine cracks, no obvious deformation or loosening, can be fixed by using automotive-specific plastic glue or epoxy resin, and left to cure for 24 hours until the glue is fully solidified.
- Moderate cracks: Long cracks or partial damage, with insufficient glue strength, can be reinforced by drilling holes and using self-tapping screws combined with metal sheets or rubber pads.
- Severe fractures or detachment: If the component fractures, the snap-in mechanism fractures, or the entire piece detaches, it is recommended to replace the new part directly, rather than attempting to repair it.
Solution method
Self-repair: First, clean the damaged area and the surrounding mud, sand, and dust. Then apply glue or reinforce it. Make sure the glue is fully cured; otherwise, it is likely to crack again after being driven.
Replacement of new parts: Remove the old mud guard, and be sure to keep the screws and clips intact. When purchasing, confirm that it matches the vehicle model and wheel size. Original factory parts have the highest compatibility, while aftermarket parts need to check for compatibility.
Professional repair: If you can't handle it yourself or if it involves structural components such as the fender lining, it is recommended to go to a repair shop or 4S store for handling to avoid detachment during driving due to loose installation.
Notes for Attention
Inspect tires: Before replacement, make sure the tires are undamaged and free of foreign objects to avoid the problem recurring.
Fixing torque: When installing screws, tighten them in a diagonal sequence. The torque should be controlled at 5 to 7 Newton-meters. Do not tighten too tightly.
Daily protection: Try to avoid gravel roads and potholed sections as much as possible. When washing the car, also check the fixation of the mudguards. Spending a little money for prevention is more cost-effective than repairing after it breaks.
