What is the left rear wheel fender assembly of the car?

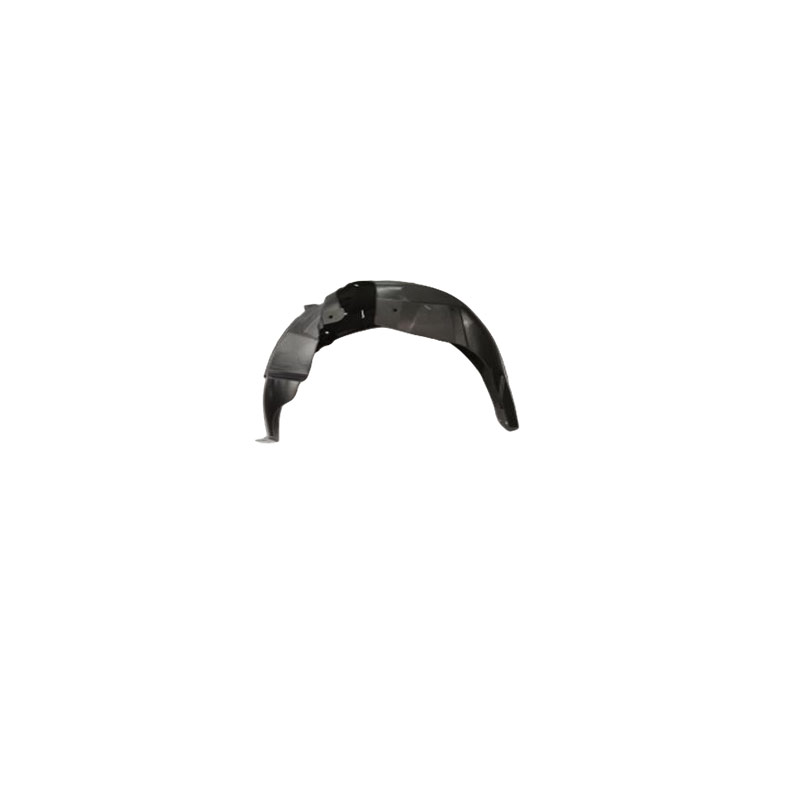

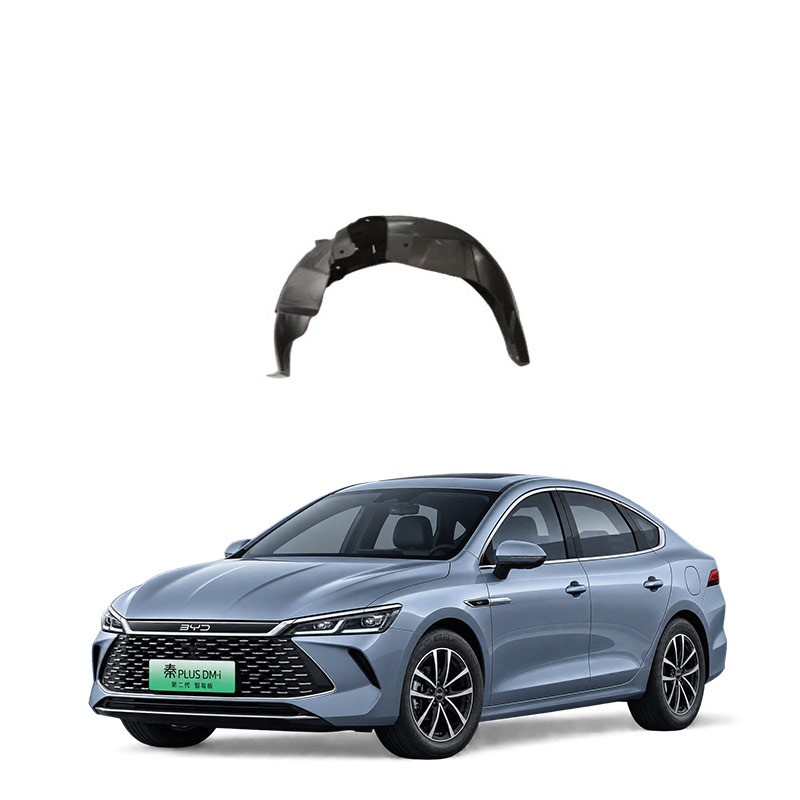

The left rear wheel mudguard assembly is a complete protective component installed behind the left rear wheel, designed to prevent mud, water, and sand splashed by the wheel from flying onto the vehicle body or pedestrians. It usually consists of two parts:
- Wheel cap: The outer part, which is harder and mostly made of black plastic, serves to support and shape.
- Inner liner: The inner part, which is softer, functions to buffer and reduce noise, and can further prevent debris from impacting.
This assembly is typically fixed through the original vehicle's reserved screw holes or clips, protruding about 5 centimeters from the vehicle body. It can protect the paint and chassis, and also optimize air flow and reduce wind resistance.
It should be noted that the installation method and compatible accessories may vary for different vehicle models. For example, the inner liner of some electric vehicles needs to avoid the battery cooling vents. Before purchasing or replacing, it is best to check the compatibility of the vehicle model.
The left rear wheel mudguard assembly of the car is mainly for blocking mud and stones, protecting the vehicle body and chassis components.
The specific functions can be viewed in several points:
- Preventing mud splashing: When the rear wheel rotates, it will throw mud and sand from the road surface, and the mudguard can block these contaminants, preventing them from splashing onto the rear bumper, under the doors, and the vehicle body, and also preventing clothes from getting dirty when getting on or off the vehicle.
- Protecting the paint and the vehicle body: Small stones and sand kicked up by the tires are fast-moving and prone to damaging the paint. Light scratches can cause scuffing, while severe ones can result in dents. The mudguard can provide buffering and shielding.
- Reducing the entry of mud and sand into mechanical components: It can prevent dirt and sand from entering the chassis and suspension system's tie rods, ball joints, and other components, avoiding premature rust or wear.
One thing to note is that the left rear wheel mudguard (and all mudguards) will affect the vehicle's aerodynamics, increasing a little wind resistance and noise, and may slightly increase fuel consumption when driving at high speeds. Therefore, if you frequently drive on highways and paved roads, it is not necessarily a necessity; however, if you often travel on muddy roads, non-paved roads, or frequently encounter rain, installing it will be more practical.
If there is a problem with the left rear wheel mudguard assembly of the car, first determine the extent of the damage and decide whether to repair or replace it: minor cracks or small scratches can be repaired by oneself. For moderate damage or loose and abnormal sounds, it is recommended to replace the new part directly and check the fixed clips.
The mudguard assembly consists of the outer mudguard and the inner liner of the wheel cover, mainly serving to block mud and debris, protecting the chassis and the paint. If not dealt with in time, mud and sand will directly impact the chassis, and over time, it may rust or produce abnormal sounds, even affecting the driving quality.
First determine the type of fault
- Minor cracks or small scratches: Length less than 2 cm and not penetrating, can be handled by oneself.
- Moderate damage: Length 2-5 cm or partial missing, but the chassis has not exposed yet, it is recommended to replace the new part directly.
- Severe damage: Large area missing, already able to see the chassis metal parts, must be replaced as soon as possible, don't delay.
- Loose or abnormal sounds: Most are aging and broken clips, not necessarily the plate itself is broken, just replace a few clips.
Solution for handling the issue
Minor cracks can be repaired by themselves: Remove the mudguard, clean the damaged area, fill it with a special plastic repair agent or epoxy resin, wait for it to cure, and then sand it smooth with fine sandpaper. During the operation, wear gloves and do it in a ventilated area.
For cracks of moderate severity or above, replace it directly: Choose original factory parts or aftermarket parts that meet OE standards. The material is usually ABS engineering plastic or PP + EPDM composite material, which is more impact-resistant. If you have basic repair skills, it is more reliable to go to a repair shop or 4S store to replace it.
If it is loose, check the fasteners first: If the edge of the mudguard or there is a "clicking" sound when driving over bumpy roads， it is likely that the fastening clip is broken. You can replace it with a compatible clip yourself without drilling holes. Just align the hole and press it firmly. It will cost only a few dollars to solve the problem.
Installation precautions： After replacing， check the gap between the mudguard and the wheels and the chassis. It is usually between 15-30mm. If it is too close， it will cause friction sounds during driving. If the mudguard is severely damaged and you continue to drive， water， mud， and gravel will directly hit the chassis and wiring， which may cause rust or abnormal wear of components， resulting in higher repair costs.
Considering your situation in Shanghai， where there are more rainy days and sections with water trucks， the mudguard will wear out faster than in dry areas. During regular car washing， you can also rinse the inner lining of the mudguard to prevent the accumulation of mud and sand， which can extend its service life.
