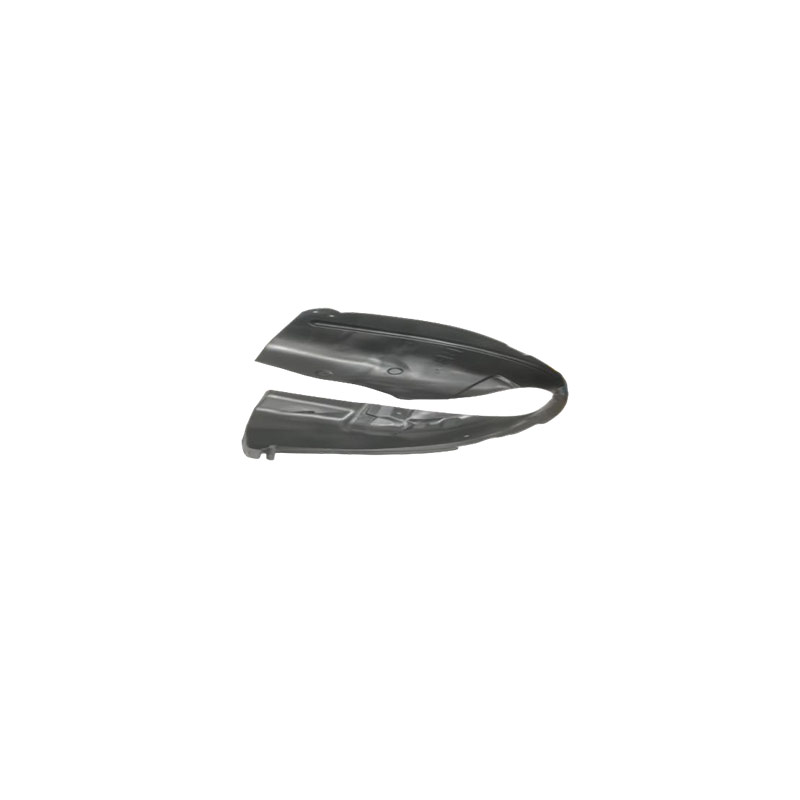

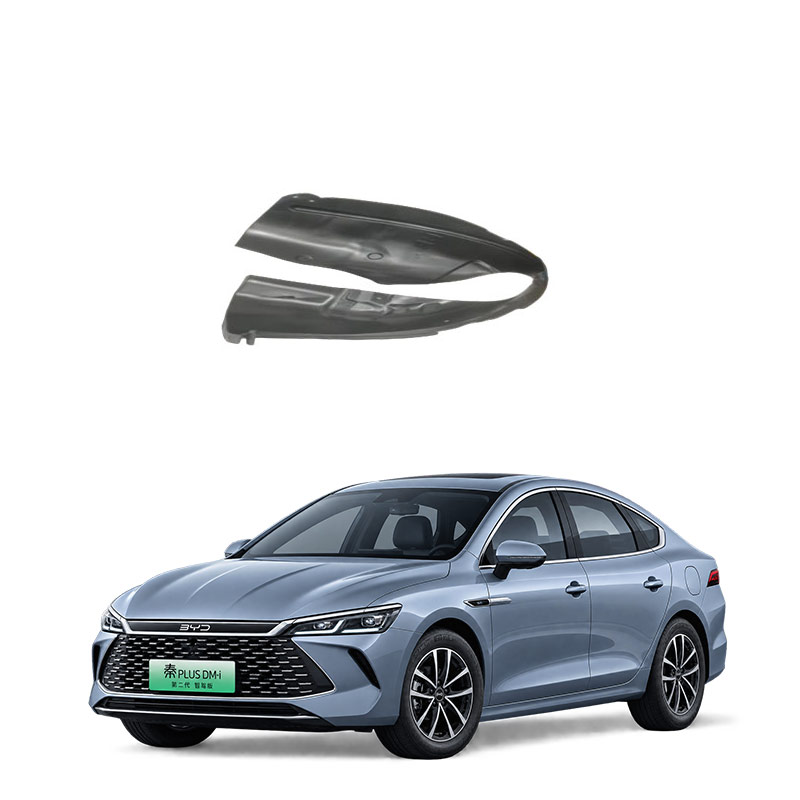

What is the mudguard assembly for the front wheel on the right side of the car?
The rear wheel splash guard assembly on the right side of the car is commonly called a splash guard, also known as a wheel arch cover, fender liner, or wheel guard. It is an arc-shaped plate installed behind the wheel or inside the wheel arch, made of rubber, engineering plastics, or composite materials, typically protruding about 5 centimeters from the body.
Core functions
• Splash prevention: Blocks mud, sand, ice, and other debris kicked up by the tires, preventing them from splashing onto the car body, chassis, and pedestrians.
• Protecting the paint: Prevents stones and gravel from damaging the car's paint surface, reducing the risk of scratches and rust.
• Noise reduction and rust prevention: Blocks the noise from the tires from entering the driver's cabin and reduces rust caused by mud and water adhering to metal parts such as the steering tie rod and ball joint.
• Enhancing safety: Prevents stones caught in the tires from being thrown out at high speed and affecting the safety of vehicles behind.
The component composition
• Wheel arch: A harder arc-shaped decorative plate, often black, combining aesthetics and protection.
• Inner liner plate: A soft plastic fiber liner inside the wheel arch, mainly used to prevent sand and mud erosion of the wheel hub and reduce noise.
• Mud flap: A flexible rubber sheet (English: mudflap) behind the tire, specifically designed to block mud and debris from splashing.
Installation considerations
For frequent high-speed driving or purely urban commuting, it is not recommended to install a splash guard without the original factory component, as it will slightly lower the chassis height, increase wind resistance and driving noise, and affect handling and quietness. When driving on muddy roads, sandy roads, or unpaved surfaces, installing one can significantly protect the car body.
The rear wheel splash guard assembly is the splash guard installed behind the right front wheel. Its core function is to block the mud, sand, and gravel kicked up by the tires, preventing them from splashing onto the car body.
Specifically, it can do the following:
• Protecting the paint: During driving, tires will pick up small stones, and the splash guard can effectively block them, avoiding chipping off the paint and rusting.
• Keeping the car body clean: On rainy days or muddy roads, it can reduce the splashing of mud, making the sides of the car body and the bottom of the doors much cleaner, and reducing the need for frequent washing.
• Protecting chassis components: Prevents sand from splashing onto steering tie rods, ball joints, etc., reducing the risk of these components rusting prematurely.
Regarding installation
If the original vehicle does not have a splash guard, it is not recommended to install one later, as it will slightly lower the chassis height, increase wind resistance and driving noise, and affect handling and quietness. When driving on muddy roads, sandy roads, or unpaved surfaces, installing one can significantly protect the car body.
The rear wheel splash guard assembly is the splash guard installed behind the right front wheel. Its core function is to block the mud, sand, and gravel kicked up by the tires, preventing them from splashing onto the car body.
In terms of installation, it will slightly lower the chassis height. Be cautious when going up steep slopes or over bumpy roads. Additionally, when the stones kicked up by the tires hit the splash guard, there will be a little noise, but the overall impact is not significant.
If the rear wheel splash guard assembly on the right side fails, it is mostly not directly related to driving safety, but it needs to be checked and repaired as soon as possible. In a nutshell, first determine the extent of the fault and decide whether to temporarily fix it, repair it, or replace it. Don't wait until it affects the tires or makes abnormal noises before dealing with it.
Here is a quick judgment and handling method:
• Check if there is interference with the tire: This is the most critical step. Get down and check if the damaged or loose splash guard is touching the tire, wheel hub, or rubbing against it. If it has already touched the tire, do not drive any further; otherwise, it will wear out the tire and even cause damage, with a risk of tire blowout.
• Minor damage or looseness: If only the clips are broken or the edges are cracked, but the splash guard has not fallen off and is not rubbing against the tire, you can temporarily fix it with cable ties or replace the clips. It will not affect normal driving.
• Severe damage or detachment: If the splash guard has been severely cracked or missing, or cannot be fixed, it is recommended to replace the new part directly. Its main function is to block mud and prevent stones from damaging the car's paint surface. If not replaced, the chassis and paint surface will be easily eroded by sand and gravel over time.
Pay attention to the source of the abnormal sound: If there is a "clattering" or rubbing sound at the right front wheel position while driving, apart from the fender, it could also be due to stones in the tire, worn bearings or worn brake pads. You need to take your car to the repair shop for a professional diagnosis.
Regarding repairs: Small cracks can be repaired with hot melt glue or special glue. Remove them, stick them back together and reinstall them; if the damage is severe, replace the part. Preferably choose the original factory parts or aftermarket parts that meet the OE standards. When installing, make sure all the snap fasteners are fully reset to avoid the parts loosening and causing abnormal sounds after installation.
If the fender is only slightly damaged but not touching the tire, you can continue driving, but it is recommended to go to the repair shop as soon as possible for handling; once you find interference with the tire, do not drive any further.
As for the specific fault of the right front wheel fender, whether it is a broken snap fastener, a cracked inner liner or a complete detachment, please check carefully or directly take it to the repair shop for the technician to have a look. The repair plan will be more accurate.
