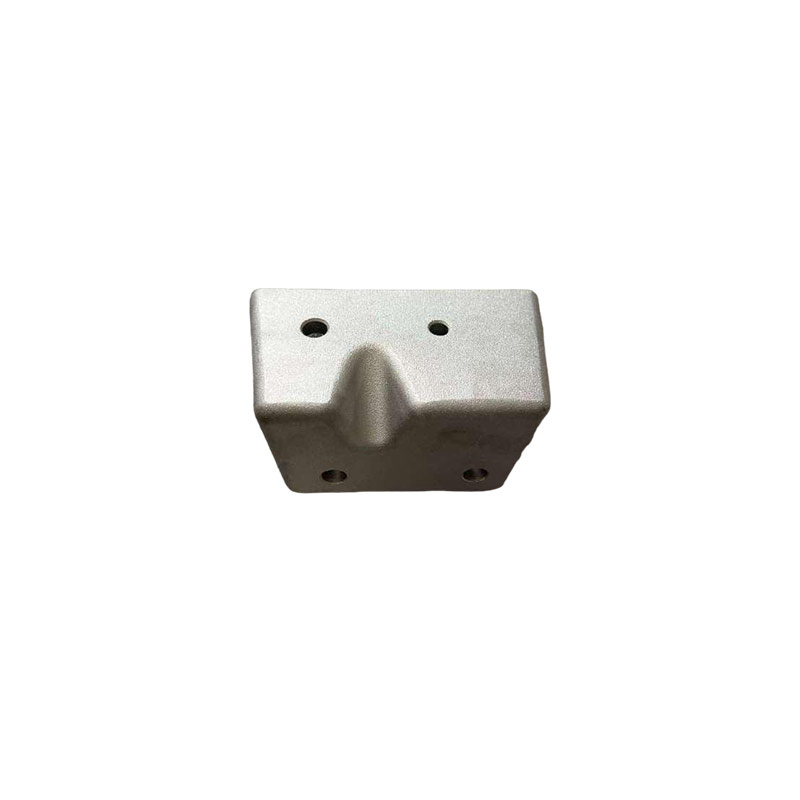

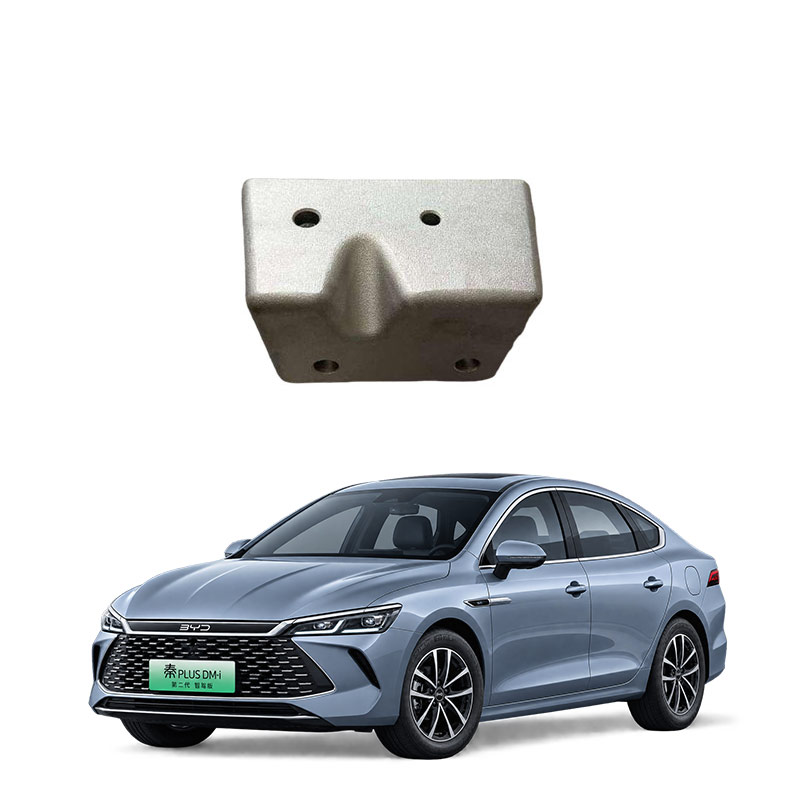

What is an automotive catalyst support?
The automotive catalyst support is, in simple terms, a metal connecting component used to fix the catalytic converter (triple catalyst) so that it can remain stable and secure within the exhaust system, without shaking or falling off.
It mainly performs three functions:
Fixation and support: Securely attaching the catalytic converter to the chassis or transmission to prevent displacement or damage during driving due to vibrations and bumps.
Shock absorption and vibration reduction: Absorbing the shock and vibration from the engine and the road surface to protect the fragile honeycomb ceramic carrier from being shattered.
Sealing and safety: Reducing assembly stress, lowering the risk of breakage at the installation points, and preventing exhaust leakage.
It should be noted that the ceramic or metal honeycomb carrier inside the catalytic converter, which is also commonly referred to as the "catalyst support" in professional terms, is the core framework that carries the precious metal coating and enables the exhaust gas to undergo purification reactions. The "support" you asked about, however, refers more to the external metal parts used to fix the entire catalytic converter assembly, and they are not the same thing.
The design of the supports varies greatly among different vehicle models. There are simple fixed supports, as well as complex supports with shock-absorbing springs or hinge structures, all aiming to be both firmly fixed and lightweight.
The core function of the automotive catalyst support is to securely fix the triple catalyst on the vehicle body, while also providing shock absorption, noise reduction, and protection for the catalyst.
Main function
Fixed and Supporting: The support frame connects the three-way catalytic converter to the frame or the engine via bolts, preventing it from shaking or falling off during driving.
Vibration and Noise Reduction: When the exhaust pipe and the catalytic converter are working, they generate vibrations and noises. The support frame can restrain the transmission of vibrations and reduce resonance, making the exhaust system quieter and more stable.
Protection of the Catalytic Converter: The internal structure of the catalytic converter is a honeycomb-shaped ceramic carrier, which is relatively fragile. The support frame can buffer the impact from the road and the engine, reducing the risk of the ceramic carrier breaking due to resonance and extending its service life.
Points to Note
The design and material of the support frame will affect the effect. Some support frames come with rubber vibration damping pads, providing better vibration isolation; if the support frame is a hard connection (such as directly screwing a steel plate onto the frame), the vibration may directly transfer to the vehicle interior, causing body shaking and increased noise.
If the support frame of the three-way catalytic converter is damaged or loose, problems such as chassis abnormal noise, body shaking, and exhaust system leakage may occur. At this time, it is necessary to check or replace the support frame in time.
Faults of the catalytic converter support usually refer to the damage or aging of the three-way catalytic converter and its fixation and supporting structure. This will cause abnormal noises, power loss, and emission in the vehicle， requiring timely maintenance.
According to public information， the common manifestations and causes of such faults include：
Abnormal noise (metal knocking sound or buzzing sound)
This is the most obvious symptom. If there is a "tap-tap-tap" sound near the exhaust pipe， it is likely that the ceramic carrier inside the three-way catalytic converter has broken， and the fragments collide with the metal casing. In addition， damage to the casing (such as scraping on the chassis) or improper installation (mismatched models， loose screws) can also cause abnormal noise.
Power loss and increased fuel consumption
If the internal of the three-way catalytic converter is blocked (accumulated carbon， sintered substances， or metal deposits)， it will cause excessive exhaust back pressure， poor engine exhaust， and symptoms such as acceleration weakness， inability to reach high speeds， and insufficient power at high speeds. At the same time， the blockage will also cause the engine to overheat and increase fuel consumption.
Fault light on and exhaust emission
When the three-way catalytic converter fails or its efficiency decreases， the oxygen sensor will detect the abnormality and light the engine fault light (such as reporting code P0420)， causing exhaust emission and failing the annual inspection.
Additional Explanation on "Support Frame"
"Support frame" in automobiles may refer to different components：
If it refers to the fixation support frame of the three-way catalytic converter， its damage is usually manifested as loosening or breaking， causing the exhaust system to shake and generating abnormal noise or resonance.
If it refers to the engine support (engine foot glue)， its aging or damage symptoms are mainly engine idle shaking， obvious vibration during acceleration， and gear shifting hesitation， which are different from the symptoms of catalytic converter failure and need to be distinguished.
Suggested Treatment Methods
Mild blockage or poisoning： Professional cleaning agents can be used for non-destructive cleaning or removal by disassembly (such as using oxalic acid solution) to restore some activity.
Internal structure damage (ceramic breakage， core detachment)： Any repair methods are difficult to be effective. It is necessary to replace the new three-way catalytic converter as a whole.
Casing damage： Minor damage can be repaired by welding， and severe deformation should be replaced.
Daily Prevention： It is recommended to add high-quality fuel (avoiding inferior gasoline and lead-containing additives)， perform regular maintenance， and avoid long-term idling or high-speed driving of cold engines to extend its service life.
