What is the suspended gasket assembly on the car radiator?

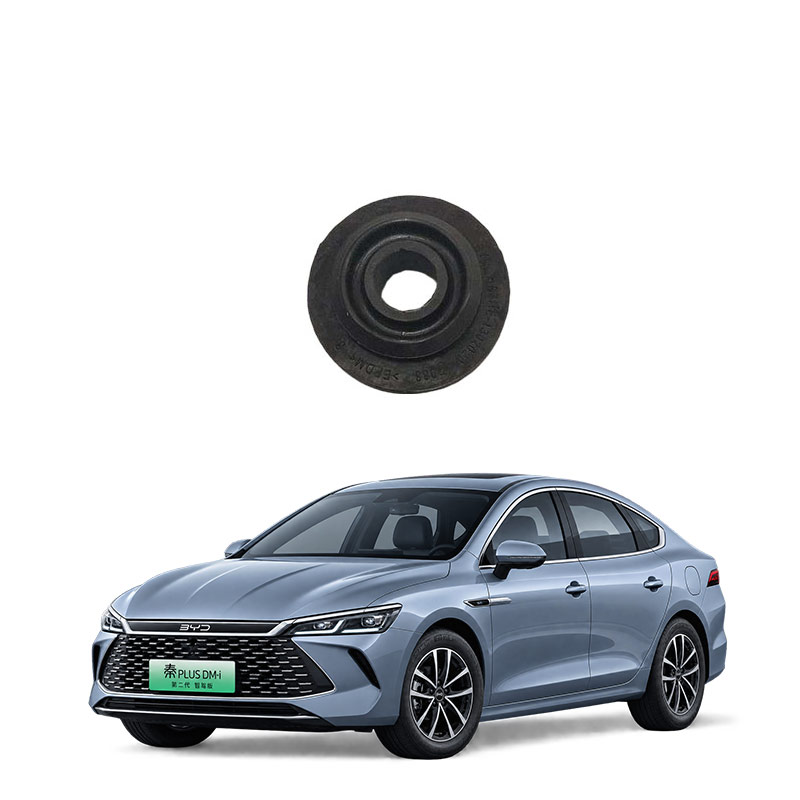

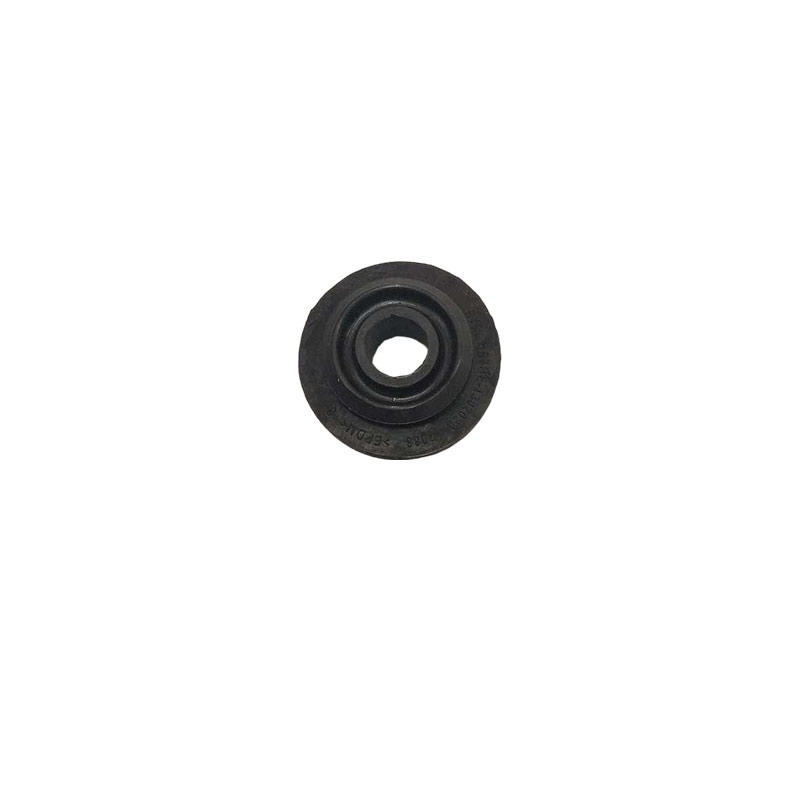

The suspended pad assembly on the car radiator, simply put, is a flexible connecting piece that "supports" the radiator on the vehicle body and also serves as a shock absorption and vibration reduction function. It is usually composed of a metal bracket and a rubber/polyurethane pad. Its core function is to reduce the impact of road bumps and engine vibrations on the radiator, prevent direct friction of metal parts, and suppress abnormal noises.
This type of component is more commonly referred to as "radiator suspension soft pad" or "radiator suspension sleeve" in the industry. Structurally, it generally includes upper and lower metal brackets and a middle rubber body. It is connected to the vehicle body with bolts. The rubber body is responsible for absorbing vibrations and limiting displacement. For example, a patent called "Full Limiting Radiator Suspension Soft Pad" achieves six-directional limiting of the radiator (front, rear, left, right, and up) through the interlocking of upper and lower brackets, and controls the vibration mode within 32Hz, specifically addressing NVH (Noise, Vibration and Harshness) issues. During installation, the radiator usually uses four-point or three-point suspension, with a transition using rubber pads or sleeves between the main suspension points and the auxiliary suspension points. The compression amount of the rubber pads at the main suspension points is generally controlled at about one-fifth of the free height.
It should be noted that this component is not equivalent to the radiator's water chamber, core body, or sealing gasket. It belongs to the "installation connection piece" between the radiator and the vehicle body. When damaged, it typically shows as the radiator shaking and abnormal noises when crossing bumps, and in severe cases, it may pull the cooling pipeline.
If these pads age and crack, the common repair solution is to replace the original factory specification suspension soft pad assembly. After installation, the chassis firmness will be significantly restored. When purchasing, it is recommended to prioritize confirming the model compatibility and pay attention to the rubber material (such as EPDM) for heat resistance and oil resistance.
The main function of the suspended pad assembly on the car radiator is to reduce vibration and noise and protect the radiator body. It is equivalent to a flexible buffer layer installed between the radiator and the connection components of the vehicle frame, used to absorb vibrations brought by the engine and road conditions, avoiding direct hard contact between metal parts. Specifically, its functions can be broken down into the following points:
Reduce vibration transmission: Through elastic materials such as rubber to absorb and disperse vibration energy, reducing the vibration amplitude of the radiator and preventing vibration from being transmitted to the vehicle body and causing resonance and noise.
Protect the radiator core: The buffering effect can reduce the risk of cracks in the welds of the core body due to repeated force, especially more obvious in bumpy roads or heavy-load conditions.
Compensate for thermal expansion: During operation, the radiator experiences large temperature changes, and the flexible connection of the pad can absorb the size changes caused by thermal expansion and contraction, preventing component deformation or damage due to rigid connection.
Prevent metal friction and wear: Separating the metal surfaces of the radiator from the fixed bracket, avoiding wear and abnormal noises caused by long-term vibration friction.
It should be noted: This type of pad is an easily aging component. Over time, the rubber material will harden, crack, or even fall off. If you find that the radiator is loose in its fixation or there are abnormal noises during driving, it is recommended to check and replace it in time.
The failure of the suspended pad on the radiator (usually referring to the oil radiator seal pad or fixing pad) has the core consequence of coolant and oil intermixing, as well as vibration and leakage caused by loose components and vibration. It needs to be repaired as soon as possible.
The most common damage to this type of pad is the aging or cracking of the oil radiator seal pad, which allows the oil and coolant that should be isolated to mix together. In mild cases, the cooling performance will deteriorate and fuel consumption will increase; in severe cases, it may cause cylinder seizure or even engine failure. At the same time, the failure of the pad will also make the radiator unstable in fixation, causing abnormal noises and vibrations during driving.
Common failure manifestations
Oil film in the coolant: When opening the radiator water tank cover, you can see oil droplets on the surface, and after standing still, they will separate into layers. This is the most obvious signal of coolant and oil intermixing.
The oil turns milky white: Remove the oil dipstick, and if the oil is in a milky white or foamy state, like "milk foam", it indicates that coolant has seeped into the oil passage.
Abnormally high water temperature: The normal water temperature is between 85-95℃. If the pointer suddenly jumps to above 110℃ or even the alarm light comes on, and the coolant is added but the temperature still keeps rising repeatedly, be alert that the gasket is damaged and causing the cooling system to fail.
Leakage traces: Oil stains can be seen near the installation positions of the radiator or oil heat exchanger, and there may also be dripping oil at the parking area of the chassis.
Vibration and abnormal noise: After the gasket ages and hardens or breaks, the radiator is not firmly fixed. During idle or bumpy road driving, there will be a "clunking" sound or obvious shaking.
When the water temperature exceeds 110℃, you must immediately stop the vehicle and turn off the engine. Continuing to drive is very likely to cause cylinder wall abrasion or even engine failure; if you also see the oil emulsifying, adding more coolant will be of no use.
How to self-check and distinguish faults
3 quick steps to determine: Check if the water temperature gauge is abnormally high, check if the oil dipstick has milky white foam, and then use an OBD diagnostic tool to read the fault codes (P0118 or P0521 are likely to point to the problem of the radiator).
Differentiate from cylinder gasket damage: Both can cause the oil to emulsify, but a damaged cylinder gasket is usually accompanied by white smoke and water droplets coming out of the exhaust, water leakage from the water tank, and a whistling sound when starting; the failure of the oil heat exchanger is more just a local mixture of oil and coolant, without these abnormal combustion system symptoms.
Handling suggestions
The damaged gasket can only be replaced; don't think about repairing it because the aged rubber has lost its sealing and buffering capabilities. Even if repaired, it won't last long.
Overall inspection of the radiator: Remove it and clean the radiator pipes with kerosene, blow them open with compressed air, and at the same time check for any blockages, cracks or deformed radiator fins, and deal with them all.
After replacement, perform a verification: After installation, measure the oil pressure (0.2-0.3 MPa at idle speed, 0.4-0.5 MPa at 2000 rpm) and water temperature (stabilize at around 90°C for 10 minutes at idle speed, and do not exceed 95°C after 30 kilometers of driving). If it doesn't meet the standards, it indicates that it wasn't installed properly.
Daily prevention: The sealing gasket of Japanese cars tends to age easily within 3-5 years. It is recommended to check it once every 4 years; for German cars, clean the radiator every 60,000 kilometers to prevent oil sludge from blocking the channels.
