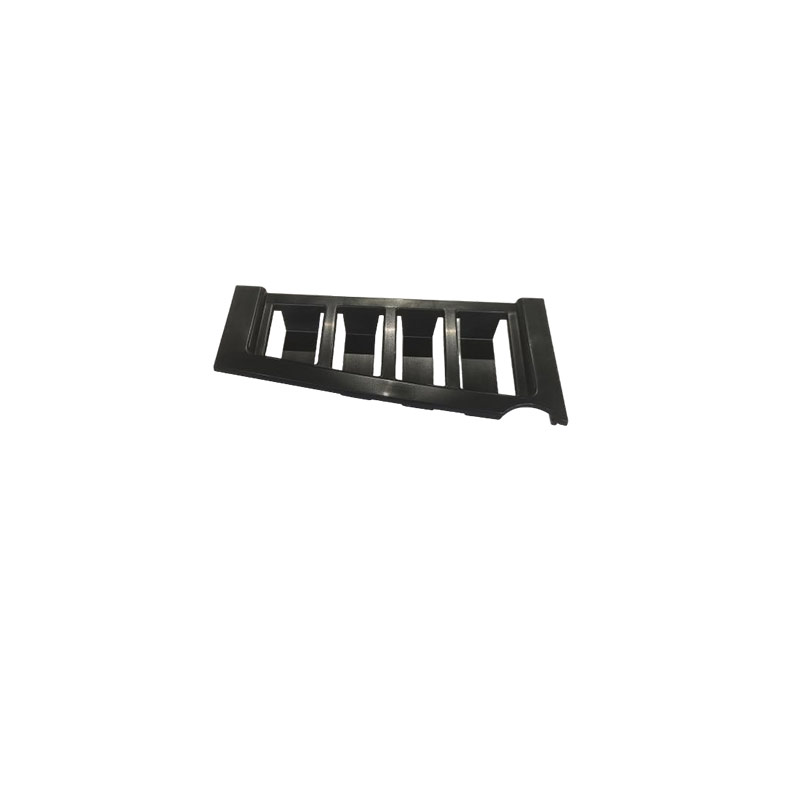

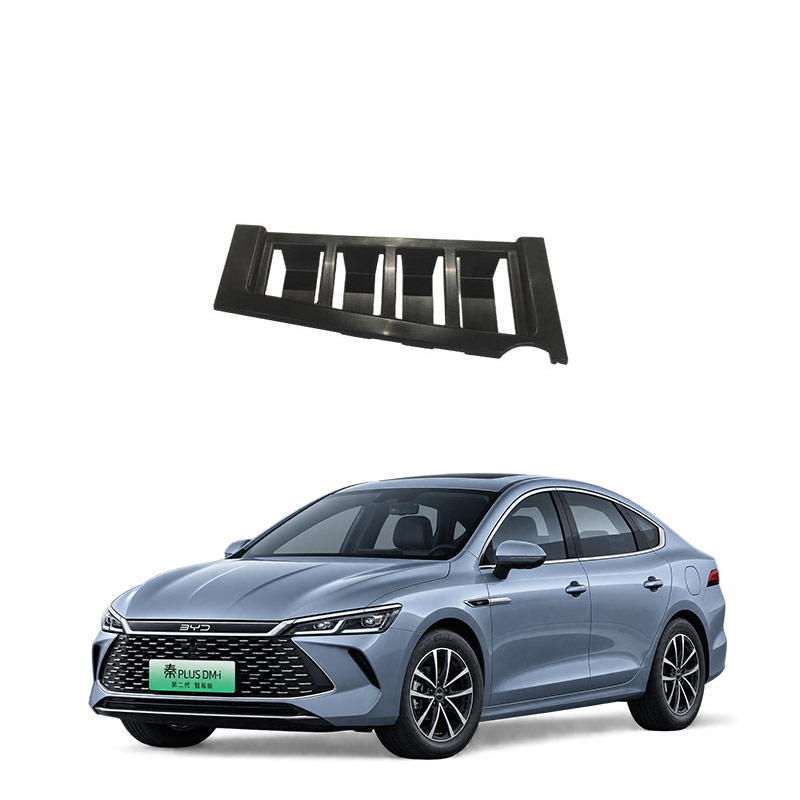

What is the air intake grille on the right side of the car?
The right side air intake grille of a car refers to the grid-like opening structure on the right half of the vehicle's front, which together with the left side forms the overall air intake grille of the vehicle. It is called "automobile front grille" in scientific terms and is commonly known as "middle grille". In simple terms, it is the "breathing valve" of the vehicle's front end, not just a decorative piece, and has a significant impact on the engine's operation.
Heat dissipation and cooling: When driving, air flows through the grille over the water tank and engine compartment, removing heat and preventing the engine from overheating. It also cools down components such as the air conditioning condenser.
Air intake and oxygen supply: The engine requires a large amount of air for combustion. The grille is the main air intake channel, ensuring the engine has sufficient oxygen for normal combustion and power output.
Protection from debris: The gaps between the grille bars can prevent leaves, stones, and insects from entering the engine compartment, protecting internal components from being hit or clogged.
Reduction of wind resistance: A well-designed grille can guide air flow and reduce air resistance during driving, improving stability and fuel economy.
In addition, designs like the BMW kidney grille also serve to enhance brand recognition. If the right and left designs are different, it could be due to model variations or to accommodate sensors and other components, which is normal.
It is not recommended to seal or modify the grille for aesthetic purposes. Otherwise, insufficient air intake can lead to a decrease in power, increased fuel consumption, and even affect cooling and air conditioning performance.
The function of the right side air intake grille is the same as the entire vehicle's front air intake grille, mainly responsible for "supplying air for the engine and air conditioning system for heat dissipation", and providing the engine with the air it needs for combustion. It is not just a decorative piece. If it is blocked, it may affect power and air conditioning performance.
Specifically, the functions of the air intake grille include the following:
- Heat dissipation: The engine generates a lot of heat during operation, and the grille allows air to flow over the radiator (water tank), taking away the heat and preventing the engine from overheating.
- Air supply: The engine requires air for combustion, and the grille is the main air intake channel. Insufficient air intake will result in poor power performance, and over time, it may damage the engine.
- Cooling for the air conditioning condenser: The condenser for the air conditioning system is also behind the grille. Insufficient air intake will affect the cooling performance of the air conditioning.
- Reduction of wind resistance: Some models' grilles can be actively opened and closed. At high speeds, closing part of the grille can reduce air resistance and improve fuel economy.
It is important to note that do not easily block or modify the grille into a closed style. Otherwise, in summer, the engine may experience high-temperature alarms, and in winter, the warm air may also deteriorate.
If you notice that the right side grille is different in appearance from the left side, such as one being transparent and the other being closed, it is usually a "design asymmetrical shape" or that this position integrates sensors and other components (such as the probe for adaptive cruise control), and it is not necessarily a fault.
A malfunction of the right side air intake grille is most commonly caused by a damaged drive motor of the active air intake grille, resulting in the grille not being able to open and close normally. This usually causes the engine fault light to illuminate on the dashboard.
Fault diagnosis
- Fault phenomenon: When the engine is cold-started or during driving, the dashboard engine fault light illuminates. Use the diagnostic computer to read the fault code, which is often of the type "Active air intake grille actuator performance abnormal".
- Core reason: Most are damage to the grille motor, and a few are wiring issues (open circuit, short circuit, or poor contact).
- Troubleshooting method: The technician will use the diagnostic computer to drive the grille to see if it can open and close normally; then remove the front bumper and use a multimeter to measure the power supply, grounding, and communication lines of the motor plug. If the lines are normal but the grille does not move, it is usually a damaged motor.
Maintenance suggestion
- Replace the assembly: For many models, the motor and grille are integrated and cannot be replaced separately. A complete set of air intake grille assembly needs to be replaced.
During the warranty period: It is recommended to go directly to the 4S store. For non-human damage, it is usually free to replace.
If the grille gets stuck in the closed position, the engine cooling will be blocked, which may cause the engine to overheat. In severe cases, it may damage the engine. It is recommended to send it for repair as soon as possible. Do not drive with the fault for a long time. If it gets stuck in the open position, it may not cause much problem for a short period of time, but it should also be dealt with as soon as possible.
Daily precautions
Such faults are likely to occur after driving through water or in rainy weather. Try to avoid deep water areas during rainy days.
When replacing, it is recommended to use the original factory parts. Non-original factory parts may not come with the motor or may not match well. Even after replacement, it may still report a fault.
