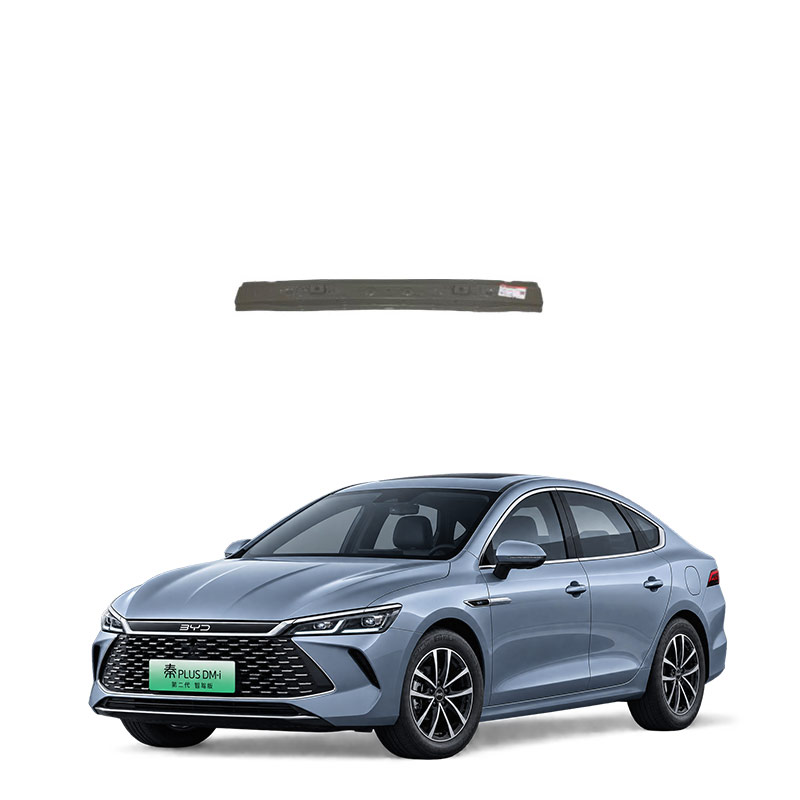

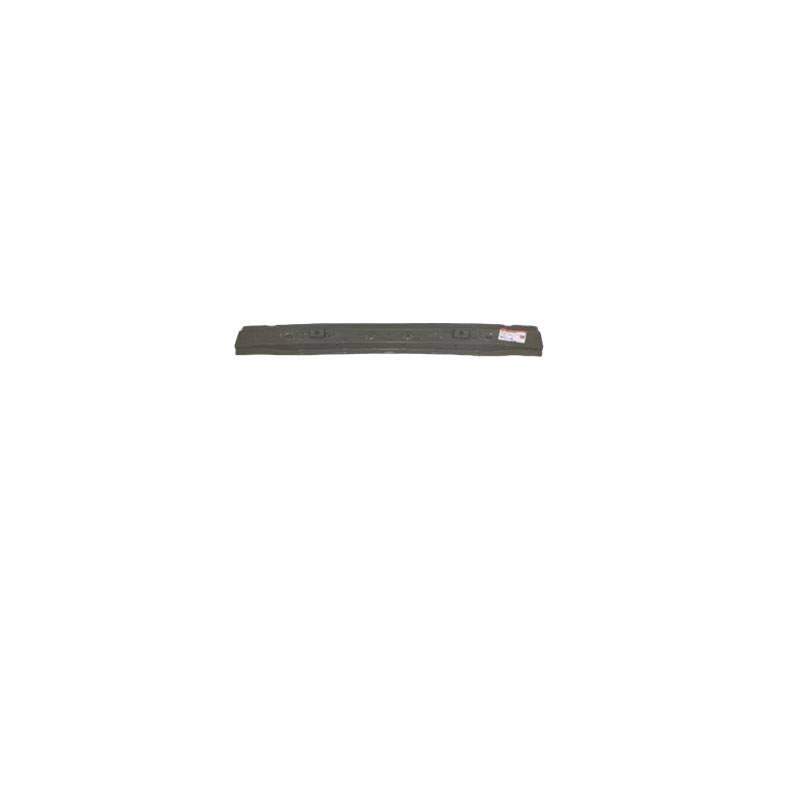

What is the front crossbeam assembly of a car?
The front crossbeam of the car is a horizontal beam structure that connects the left and right front longitudinal beams at the front end of the vehicle body. It is located behind the front bumper and is the first horizontal protective component inside the engine compartment. It plays a core role in supporting, absorbing energy, and enhancing the rigidity of the vehicle frame.
Core function
Energy absorption buffer: During a frontal collision, it absorbs part of the impact energy through controlled collapse, working in conjunction with the energy absorption box to form a secondary protection layer, reducing the damage to the vehicle body and occupants.
Strengthening stiffness: It enhances the torsional stiffness of the frame, enabling it to withstand the longitudinal loads during vehicle acceleration and braking, ensuring the stability of the vehicle body.
Supporting components: It provides installation support for the bumper, radiator, engine bracket, etc., maintaining the integrity of the front structure.
Structural and material
Structural composition: A complete front crossbeam system typically includes the main impact beam, energy absorption box, connecting plate (or mounting block), and side brackets. The energy absorption box absorbs energy through deformation during low-speed collisions, protecting the main beam.
Common materials: Mostly made of high-strength steel or aluminum alloy, with a yield strength generally exceeding 600 MPa. The aluminum alloy solution is often used in lightweight designs, ensuring collision safety while reducing weight.
Differences among different vehicle models
The specific shape of the front crossbeam varies depending on the vehicle model and platform. For example, the body-in-white often uses a closed box-type steel beam, while the non-body-in-white vehicle (such as an off-road vehicle) may adopt a high-strength trapezoidal section design, balancing torsional stiffness and maintenance convenience.
Note: The roof of the car also has a "roof front crossbeam", used to support the roof, enhance the stiffness and snow load resistance of the roof, and is a different component from the front impact beam of the vehicle body.
The front crossbeam assembly mainly undertakes two tasks: low-speed collision energy absorption and shock force dispersion. It is the first line of defense for protecting the engine compartment and reducing maintenance costs.
In simple terms, it consists of the front impact beam (main crossbeam) + energy absorption box + mounting bracket, located inside the front bumper, in front of the water tank and main beam. Its specific functions can be broken down into three points:
"Low-speed collision 'economic guardian': In mild collisions at 4-15 km/h, the energy absorption box will collapse and deform according to the preset path, absorbing most of the energy, preventing the impact force from directly damaging the main beam, water tank, engine and other core components. This usually only requires replacing the bumper or energy absorption box, saving a lot of repair costs.
"High-speed collision 'energy dispatcher': In high-speed or oblique collisions, it disperses the impact force to both sides, guiding it to the entire vehicle frame for energy absorption, avoiding overloading of a single side and causing vehicle distortion, providing more space for the passenger compartment.
"Vehicle structure 'stabilizer': It connects the left and right front longitudinal beams to form a closed frame, enhancing the torsional stiffness of the frame, preventing the longitudinal beams from shaking during vehicle travel.
It should be noted that the energy absorption effect of the front crossbeam in high-speed collisions is actually limited. What really saves lives is the rear longitudinal beams, vehicle frame, safety airbags, seat belts and other restraint systems. Its core value is more reflected in "saving unnecessary expenses" in minor accidents.
If your car needs to replace the front bumper frame, it is recommended to first confirm the specific model year, as the interfaces and structures vary among different model years. For example, the old Citroën C3 and the 2012 model and later of the new model are different.
