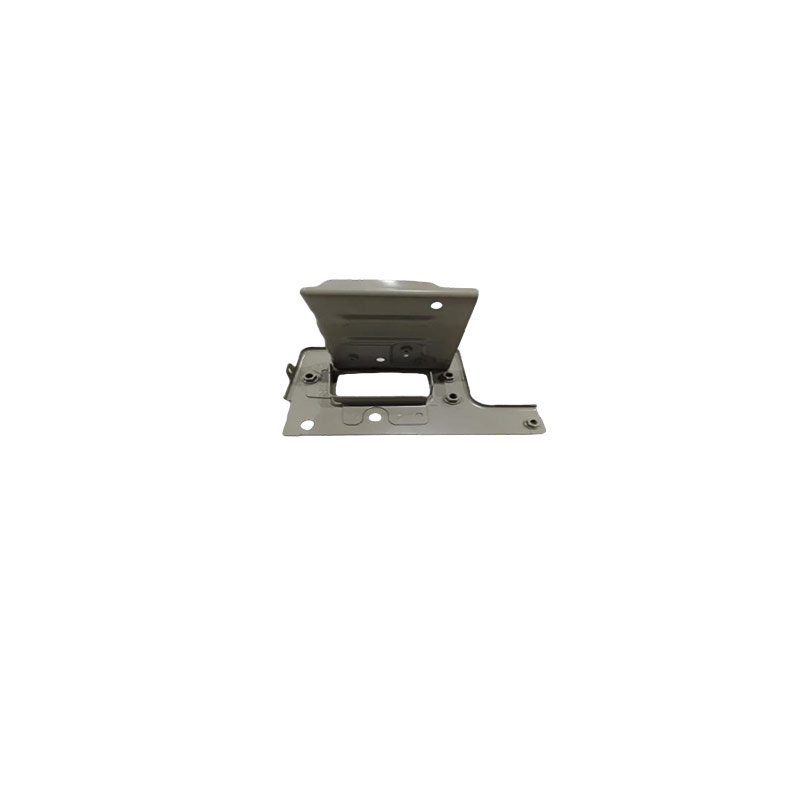

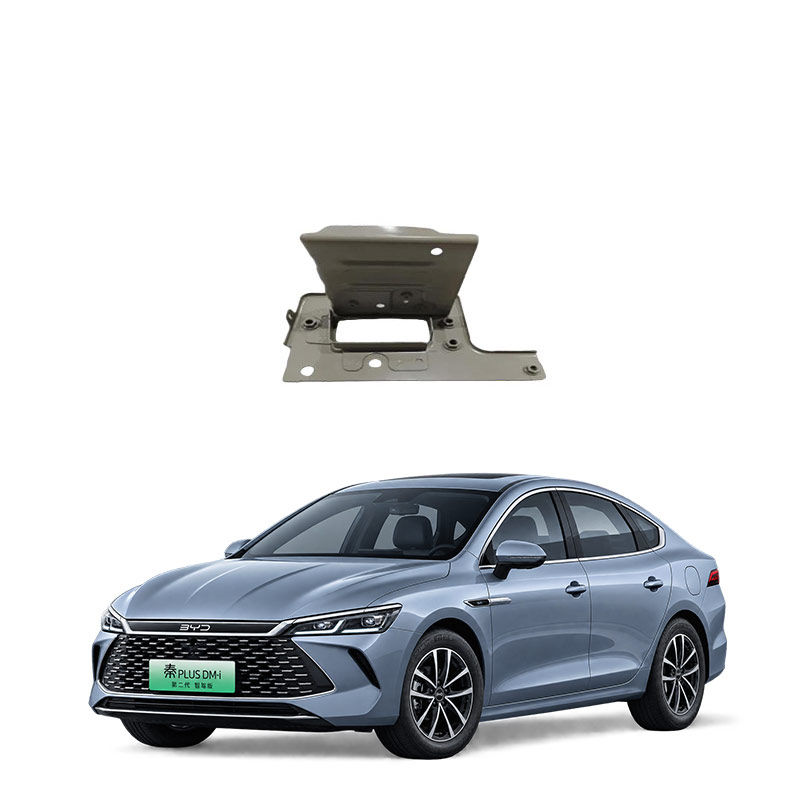

What is the component for the right side mounting plate of the vehicle's lateral impact beam?
The "right-side mounting plate assembly" of the vehicle's lateral impact bar can be understood as a component assembly used to fix the right end of the lateral impact bar (door impact bar) to the door or the vehicle structure. It is usually composed of mounting plates, brackets, bolts, etc. From the overall structure of the impact bar, it generally consists of three parts: the main beam, the energy absorption box, and the mounting plate. The role of the mounting plate is to connect the impact bar to the vehicle body. Specifically for the lateral impact bar (also known as the door impact bar), it is hidden between the inner and outer panels of the door, and for Japanese and Korean models, the tubular impact bars commonly used at both ends need to be connected and fixed through brackets (mounting plates).
"Right" refers to the corresponding installation component on the right side of the vehicle door. Its main functions are:
- Fixed connection: Firmly install the right end of the impact bar on the door or the vehicle frame to ensure that the impact bar can function during a collision.
- Load transmission: During a collision, transfer the impact force borne by the impact bar to the vehicle structure (such as the B-pillar, floor rail), allowing more structural components to participate in energy absorption.
In simple terms, it is the connection component that ensures the impact bar "roots" in the vehicle body and can withstand the impact during a side collision stably.
It should be noted that there is no independent detailed introduction for the "right-side mounting plate assembly" component in the public materials. The above is a general explanation based on the overall structure of the impact bar. The specific designs of different models (such as shape, material, connection method) may vary.
The main function of the right-side mounting plate assembly of the vehicle's lateral impact bar is to reliably connect the lateral impact bar to the vehicle structure and transfer the force received during the collision to the vehicle body, achieving the protection effect of "one point absorbing force, the entire body absorbing force". Specifically, this mounting plate performs the following tasks:
- Fixation and force transmission: It acts as a "bridge" between the impact bar and the vehicle body, distributing the impact force of the beam to the more solid vehicle frame components such as the door, B-pillar, and floor rail, avoiding a single point bearing the impact force.
- Enhancing side impact protection: The side is a relatively weak position of the vehicle body, and the mounting plate, in conjunction with the door impact bar, can reduce the deformation of the door inward and lower the risk of injury to the occupants.
- Facilitating assembly and maintenance: It is connected to the vehicle body through bolts, making it convenient for factory assembly and allowing for separate replacement during maintenance without the need for overall cutting.
Here is a point that is prone to confusion: The "mounting plate" of the lateral impact bar and the "installation end plate" mentioned in the materials are not exactly the same thing. The end plate is mainly used for the connection of the front impact bar and the crossbeam. This "right-side impact bar mounting plate" is mainly for the impact bar structure inside the door.
Regarding the failure of the right-side mounting plate assembly of the vehicle's lateral impact bar, there are no specific repair cases or official technical bulletins in the public materials, and it is impossible to provide a precise diagnosis for a certain model. However, from the structural principle and common failure patterns, the problems with the mounting plate assembly usually manifest as "installation point loosening, bolt fracture, plate deformation or weld cracking", and the handling method depends on the degree of damage.
It is necessary to clarify one point: The "installation plate assembly" of the lateral impact bar is a key structure that connects the impact bar to the vehicle body (door or floor rail). The failure does not mean that the impact bar itself has failed, but it will affect the force transmission of the entire side protection system. It is recommended to check it as soon as possible, as delays can lead to a loss of protection performance.
Troubleshooting
- Check deformation degree： First， check if the mounting plate is slightly deformed or severely distorted or cracked. Minor deformation can be corrected； severe deformation or fracture must be replaced. Otherwise， the protection performance during the next collision cannot be guaranteed.
- Check bolt condition： The mounting plate is mostly fixed by bolts or welding. Loose bolts can be re-tightened to the standard torque； broken bolts need to be handled with a broken wire removal tool or expanded and tapped， and if the threaded hole is severely damaged， the mounting plate needs to be replaced.
Confirm the source of the force: Recall if there has been any recent side scratch, impact or bottoming out. If there is no obvious accident, it might be metal fatigue caused by long-term vibration. This situation requires more attention as cracks may spread internally.
Handling suggestions:
Minor deformation, no cracks: Try to correct it. The correction sequence should be to correct the frame (installation plate) first, and then handle the outer plate to ensure structural accuracy.
Loose bolts: Re-tighten according to the original factory torque standard. If necessary, replace the high-strength bolts and install washers or self-locking nuts.
Cracked or severely deformed plates: Directly replace the installation plate component. Do not recommend welding repair as the welding strength may not meet the original factory standard and may affect the surrounding structure.
Special reminder:
Installation plate failure will affect the energy transfer path during a side collision, causing the impact force of the impact bar to fail to be effectively dispersed, reducing the occupant protection capability. It is recommended to check it at a 4S store or professional repair shop as soon as possible.
If the vehicle is within the warranty period, contact the manufacturer or 4S store to confirm if it is a quality issue. Avoid repairing by yourself as it may affect the warranty.
If there has been a side collision accident recently, even if the appearance damage is not severe, check if the installation plate is damaged secretly as well. Because the force of a side collision will be transmitted from the impact point through the door impact bar, B-pillar various parts, the installation point is often a weak link.
