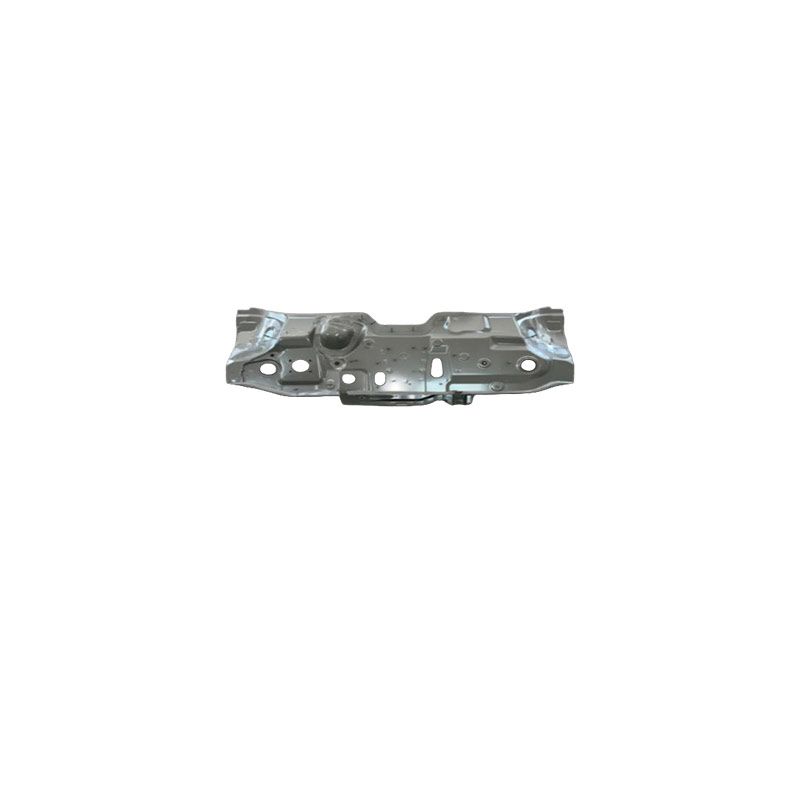

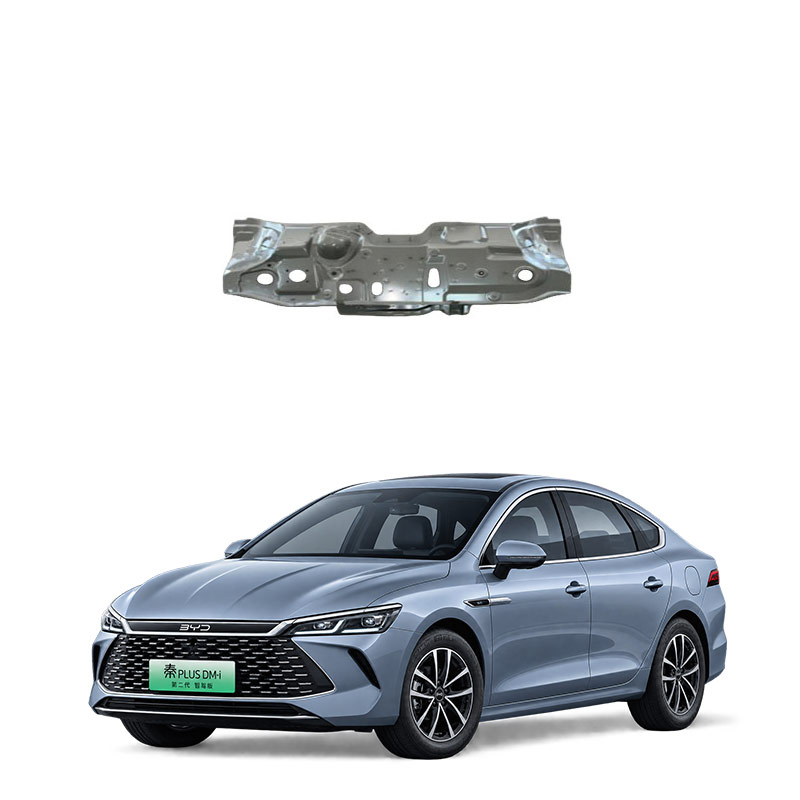

The function of the front panel assembly of the car
The components on the front panel of the car are mainly responsible for protection, flow diversion, lighting, heat dissipation, and aesthetics. Different parts have their own specific functions.
Core components
Front bumper: It shields the internal structure of the car's front and absorbs some impact force during low-speed collisions to reduce damage to the engine compartment.
Intake grille (middle mesh): It allows air to enter the engine compartment for cooling and temperature reduction; for electric vehicles, since there is no need for heat dissipation, large areas of the middle mesh are often removed to reduce wind resistance.
Front headlights assembly: It integrates high beam, low beam, and turn signal lights, used for night lighting and signal indication.
Front fog lights: The beam has strong penetration power and is used to alert other vehicles in rainy or foggy weather. It has a better penetration effect than double flash and high beam lights.
Engine hood: It protects the engine compartment and prevents rain and dust from entering, and it is convenient for opening and maintenance.
Front fender (leaf panel): It covers the front wheels and the area around the tires, and if it is scratched by an independent component, it is easy to replace and repair.
Components that are easily overlooked
Front splash guard (rainwater collection plate): Located below the front windshield, it is responsible for guiding rainwater into the drainage channel to prevent water from seeping into the engine compartment and protecting the rain scraper linkage and front wiring harness.
Front bumper underguard (flow diversion plate): It optimizes the vehicle's airflow, improves stability at high speeds, and can also prevent debris, stones, and mud from invading the engine oil pan and water tank lines.
Note: If these components are aged or damaged, they should be replaced in time, otherwise, during the rainy season, there is a risk of water accumulation in the front fender overflowing and flowing back into the engine compartment, or sand and debris directly entering the engine compartment, accelerating the corrosion of components.
The term "faults of the front panel components" is somewhat general. The common faults related to the "front panel" on the vehicle mainly include three types: active intake grille, front hood lock, and front auxiliary system. The fault manifestations and repair methods are completely different. You can check them out by comparing.
First, determine which type of fault it is
Active intake grille fault: The instrument lights up the fault indicator (common fault codes such as P059F), the grille blades are stuck and do not move or open and close abnormally. This fault is more likely to occur during cold start-up, high-speed driving, or after rain.
Front hood lock fault: The engine hood cannot be opened or closed, the pull handle is stuck, the pull wire is not returned to position, or the lock catch is misaligned.
Front auxiliary system fault: The instrument indicates "front auxiliary function unavailable", which is often related to the obstruction or failure of the radar and camera.
Corresponding handling solutions
Active intake grille: Blade sticking, motor damage, or poor contact of the wiring will cause the fault. First, check if there is any foreign object stuck on the grille surface. If the blades rotate with difficulty or the motor does not work, usually, the intake grille assembly needs to be replaced, and after replacement, use the diagnostic computer to do initialization matching.
Front hood lock: First, confirm if the interior unlock pull handle is returned to position, then check if the lock mechanism is rusted and stuck, the pull wire is loose. If the lock catch is misaligned or the pull wire is damaged, it is necessary to replace the lock block and pull wire components.
Front auxiliary system: First, clear the snow, glue, or obstructions on the radar surface, check if a license plate frame has affected the detection; insufficient windshield washer fluid or abnormal tire pressure may also trigger false alarms. If the self-check still indicates a fault, it is necessary to go to the repair station to read the fault code and check if the sensors need to be recalibrated.
If the instrument fault light is constantly on, it is recommended to go to the repair shop and use the diagnostic computer to read the specific fault code. For faults related to the active safety system, it is not recommended to disassemble and assemble by yourself, as it may affect driving safety.
