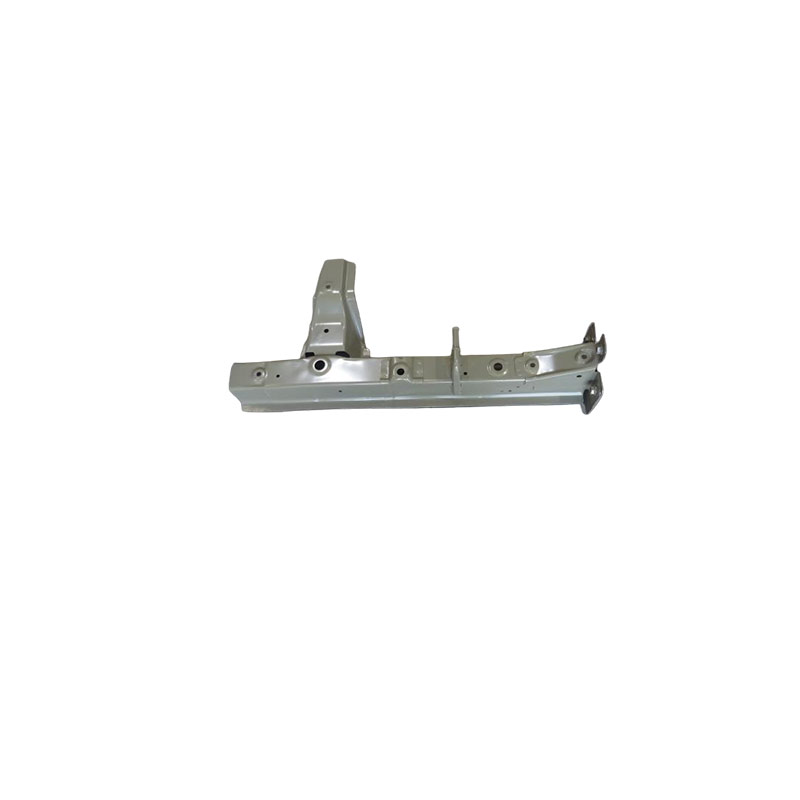

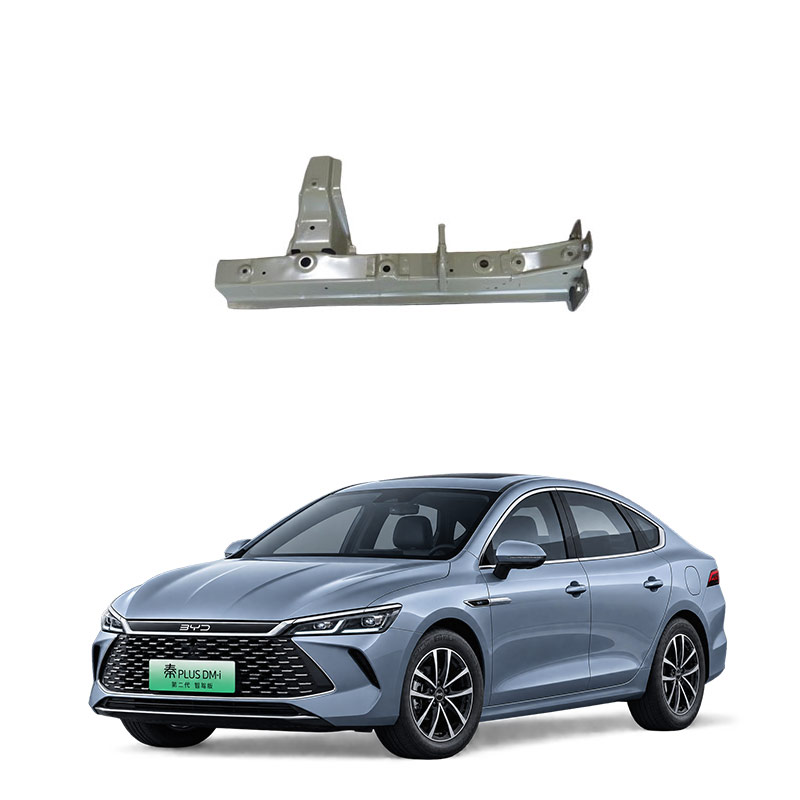

What is the rear section component of the right rear longitudinal beam of the car?
"The rear section components of the right side rear longitudinal beam of the car" usually refer to the structural components at the rear end of the car's rear longitudinal beam (rear beam) and the connection area. In simple terms, it is the end part of the longitudinal main beam on the right side of the car's rear end, generally including the rear beam itself, the sealing plate or external connection plate used for connection, and the energy absorption box at the tail end, all of which together form a closed or semi-closed section, and is responsible for transmitting force and absorbing energy during rear-end collisions.
Specific structure and function
Position and role: The rear beam is located under the trunk at the rear of the car and on the inner side of the right rear wheels. It is the core component of the frame with a beam structure. The rear section components of the right side rear longitudinal beam are the end and connection part of this beam at the final end of the car's rear.
Common components:
Rear beam itself: Mostly made of low-alloy steel sheet formed by stamping, with a cross-section in the form of a trough, I-beam, or box structure.
Rear beam sealing plate: Connected with the rear beam, jointly forming a closed cavity extending along the longitudinal direction, significantly enhancing the rear-end rigidity.
External connection plate/energy absorption box: The connection plate connecting the two rear beams at the tail end, and the energy absorption box body installed at the tail end of the beam. It collapses and absorbs energy first during a collision.
Stiffening pieces: Such as inclined support components and strengthening plates, used to expand the connection area and increase the stiffness of the joint.
Core function: In coordination with the rear impact beam, it collapses and deforms successively to absorb impact energy during rear-end accidents, protecting the passenger compartment and key components such as the fuel tank, battery pack, etc.
Maintenance considerations
If the vehicle's rear end damage involves this part, special attention is required: Severely damaged rear beams can be replaced, but they must be precisely corrected using a professional car beam alignment instrument and it is recommended to be carried out in a fully equipped professional auto repair shop. The strength of the repaired beam usually cannot fully reach the original factory level, which is a key point affecting the subsequent safety of the vehicle.
The rear section components of the right side rear longitudinal beam of the car have the core function of bearing the weight of the rear end and absorbing energy through collapse deformation during rear-end collisions, protecting the passenger compartment and key components such as the fuel tank, battery pack, etc.
Specifically, this component performs the following tasks:
Main function
Supporting and Bearing: It is the main load-bearing structure at the rear of the vehicle, supporting the weight of the trunk and surrounding components, and maintaining the overall rigidity of the vehicle rear.
Collision Energy Absorption: In the event of a rear-end collision, it works in conjunction with the rear bumper beam and energy absorption box to absorb the impact energy through its own crushing deformation, preventing the impact force from directly invading the passenger compartment.
Transmission and Dispersion: It disperses the collision impact force along the longitudinal beams to other parts of the vehicle, allowing the entire vehicle frame to bear the load together instead of having the rear part bear the force alone.
Key Complementary Components
Rear Bumper Beam: The first line of defense against impact, distributing the impact force to the longitudinal beams.
Energy Absorption Box: Connecting the bumper beam and the longitudinal beams, it first collapses and absorbs energy during a collision, protecting the longitudinal beams themselves.
Note: If this component is damaged in a severe rear-end collision of the vehicle, it is recommended to have it corrected and replaced at a fully equipped professional auto repair shop. The strength of the repaired longitudinal beams usually cannot fully reach the original factory level, affecting the collision safety of the vehicle.
