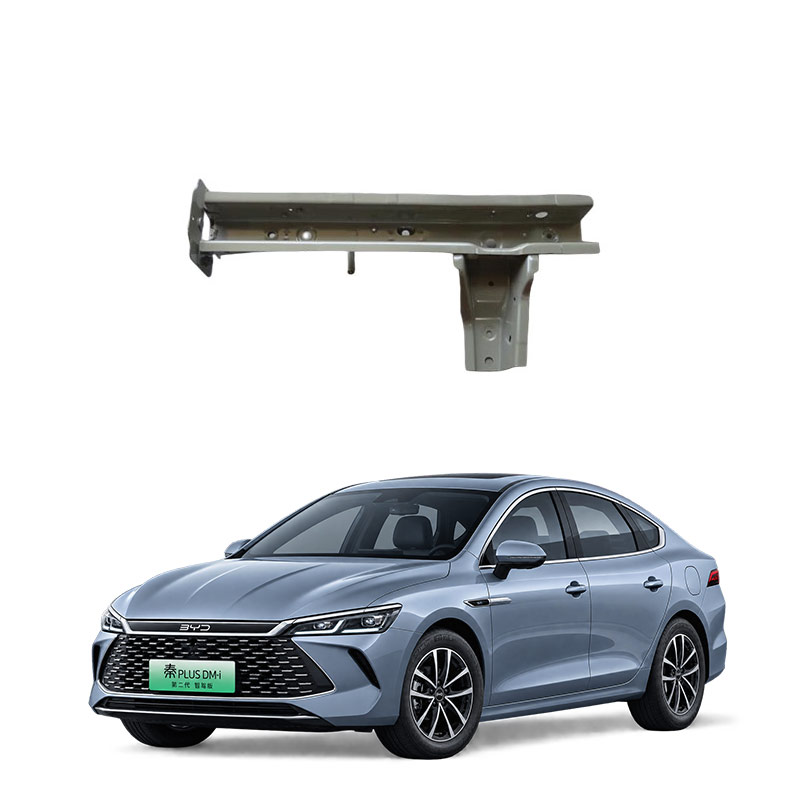

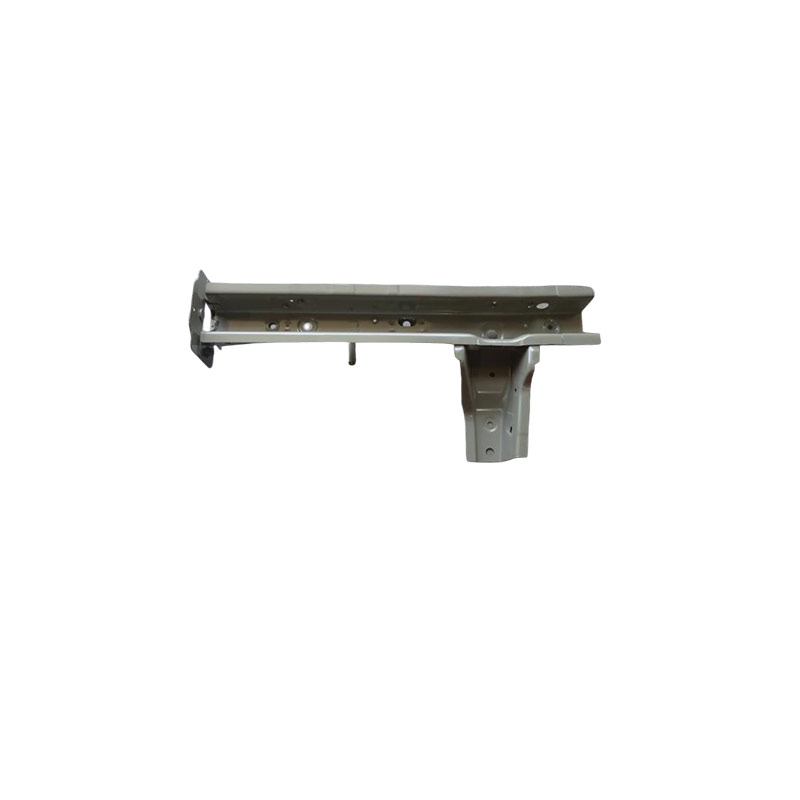

What is the rear end assembly of the left rear longitudinal beam of the car?
The rear end of the left rear longitudinal beam is mainly equipped with the rear floor assembly, rear fender outer plates, and rear subframe, etc. These components are generally fixed through welding or bolts.
Specifically, the rear end of the left rear longitudinal beam is a key node for bearing the load and absorbing energy during collisions. There are several common assembly connection methods:
Connecting the rear floor assembly: The rear section of the rear longitudinal beam is connected to the rear floor assembly through a connection flange or direct welding, forming the bottom frame of the vehicle body.
Connecting the rear fender outer plate: The rear end of the rear longitudinal beam is connected to the rear fender outer plate through an L-shaped connection flange or bolts, closing the rear structure.
Installing the rear subframe: The rear longitudinal beam has a subframe installation point for fixing the rear suspension system.
Connecting the rear impact beam assembly: The rear end of the rear longitudinal beam is connected to the rear impact beam through an energy absorption box, and the energy is absorbed in a sequential collapse when rear-end collision occurs.
Connecting the C-pillar and wheel well: Some models connect the rear longitudinal beam with the C-pillar, rear fender, wheel well, etc., through a multi-functional connector. This forms a whole structure.
The assembly structure at the rear end of the rear longitudinal beam may vary for different vehicle models. For example, the connection methods between aluminum alloy cast rear longitudinal beams and steel welded rear longitudinal beams are different. The specific details should be referred to the maintenance manual or the actual vehicle.
The rear end of the left rear longitudinal beam is the main force transmission and energy absorption channel during rear-end collisions, and it also serves to support the vehicle body and fix rear components.
Specifically, its functions can be divided into the following aspects:
Energy absorption and force transmission during collisions: In a rear-end collision, the rear impact beam first transmits the impact force to the longitudinal beam, and the rear end of the left rear longitudinal beam absorbs energy through crushing deformation, and then disperses the remaining force to the vehicle body frame to prevent the trunk from squeezing into the passenger compartment.
Supporting the vehicle body structure: It is part of the frame or vehicle body frame, used to bear the weight of the vehicle's rear part, including the trunk cargo and rear passengers, and to ensure the stiffness of the vehicle body.
Connection and installation base: The rear end is usually connected to the energy absorption box and impact beam, and in some models, it is also used to install rear bumpers, spare tire racks, etc., and in low-speed collisions, the energy absorption box collapses to protect the longitudinal beam itself, reducing maintenance costs.
It is particularly important to note that if the rear end of the left rear longitudinal beam is damaged due to an accident, the strength cannot fully reach the original factory level, which may affect the subsequent collision safety and vehicle stiffness. When repairing, it is necessary to choose a professional auto repair shop with complete equipment.
The rear end assembly failure of the left rear longitudinal beam of the car usually manifests as misalignment of installation holes, cracking of weld points, or interference of components. The repair strategy should first determine whether it is due to material deformation, fixture problems, or welding deformation, and then decide whether to correct or replace.
?? First, locate the source of the fault
Assembly failures are not caused by a single reason. Follow the three steps below to troubleshoot, and measure and record each step:
Static free assembly: Place the parts directly at the theoretical position without clamping, and measure the alignment. If there is any gap or misalignment at this step, it indicates that there are problems with the incoming material dimensions, stamping springback or bending angles. The problem can be temporarily masked by strong pressure from the fixture, but it is prone to rebound after welding.
Normal clamping but not welding: Place the parts in the fixture, position them, and measure again. If the deviation increases compared to the previous step, it indicates that the fixture positioning elements are worn, the clamping force or support method is problematic; if it does not increase, it indicates that there is no major problem with the logic of the fixture.
Measure after welding cooling: If the previous two steps are normal and a global displacement or angular deformation occurs after welding, it is necessary to investigate in the direction of welding sequence, heat input, and fixture constraints.
When troubleshooting, record three sets of data: incoming batch, fixture status, and welding parameters. Missing any one set will make subsequent analysis more likely to go in a wrong direction.
Based on the degree of damage, decide whether to repair or replace
The rear longitudinal beam is a key load-bearing component of the vehicle body. The handling method mainly depends on the degree of deformation:
Minor deformation (small-angle bending, surface depression): Usually, it can be repaired by cold alignment or hot alignment without replacement. After repair, it can recover to over 80% of the original factory condition.
Severe deformation (folded, broken, twisted more than 15 degrees): Must be replaced. Even if repaired, the subsequent collision may lose its energy absorption effect and affect driving safety.
After replacement, the crossbeam needs to be cut and welded, which will damage the continuity of the original factory body structure. After repair, the strength is usually slightly lower than the original factory state. However, using high-strength steel and carbon dioxide gas protection welding can maximize the recovery of strength.
Pay attention to these key points:
The positioning reference should be unified: The fixture positioning reference, part detection reference, and downstream assembly reference should be as consistent as possible. Otherwise, there may be a situation where a single part passes the inspection.
The clamping force is not necessarily the greater the better： Excessive clamping force may cause the thin sheet to bend or generate internal stress， and the size will rebound after welding. Use "the parts are stably adhered without shifting" as the standard， and try to use a smaller force.
The welding sequence is important： When welding the crossbeam， weld the vertical and inner flanges first， then the upper and lower wing surfaces. The wing surfaces are welded first with the lower wing surface， then the upper wing surface. The direction is towards the flange. This can reduce residual stress.
Don't rush to move the fixture： Before moving the fixture， first confirm whether the deviation is a stable deviation or a random deviation. For stable deviations， prioritize checking the positioning reference and fixture status. For random deviations， prioritize checking the consistency of incoming materials， the clamping sequence， and the cleanliness of the positioning surface.
After maintenance， check these items：
Four-wheel alignment detection： Ensure that the wheel alignment parameters meet the standards to avoid deviation and abnormal tire wear.
Regularly inspect the welding areas： Pay special attention to whether there are cracks， rust， especially after driving on bumpy roads or in low-temperature environments.
Comprehensive safety inspection： Include performance tests of the braking system and suspension system to ensure overall safety compliance.
Handle abnormalities promptly： If abnormal sounds or control abnormalities occur later， it is necessary to go to a professional institution for inspection as soon as possible.
