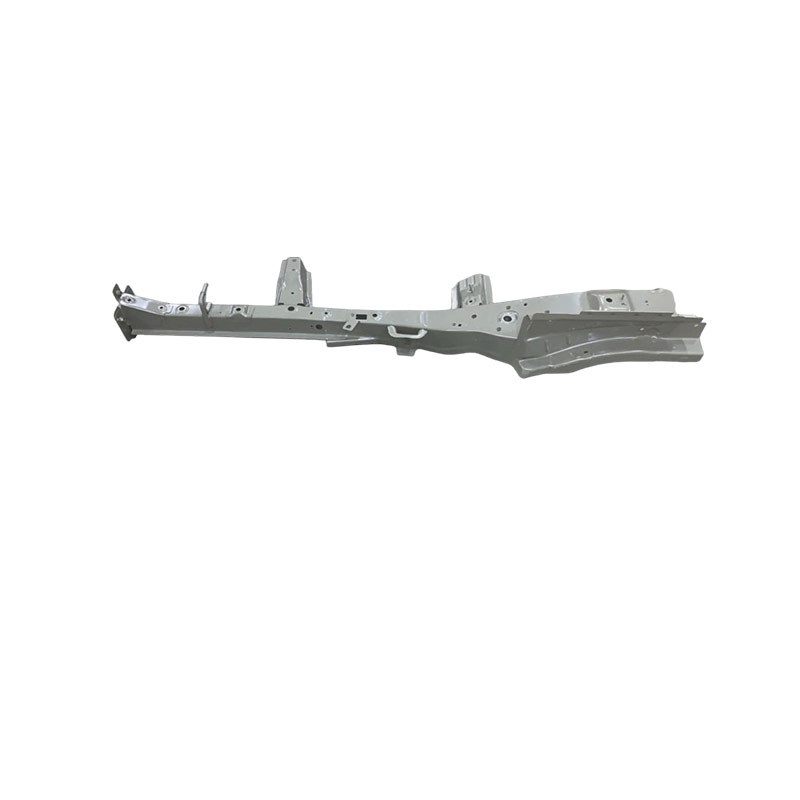

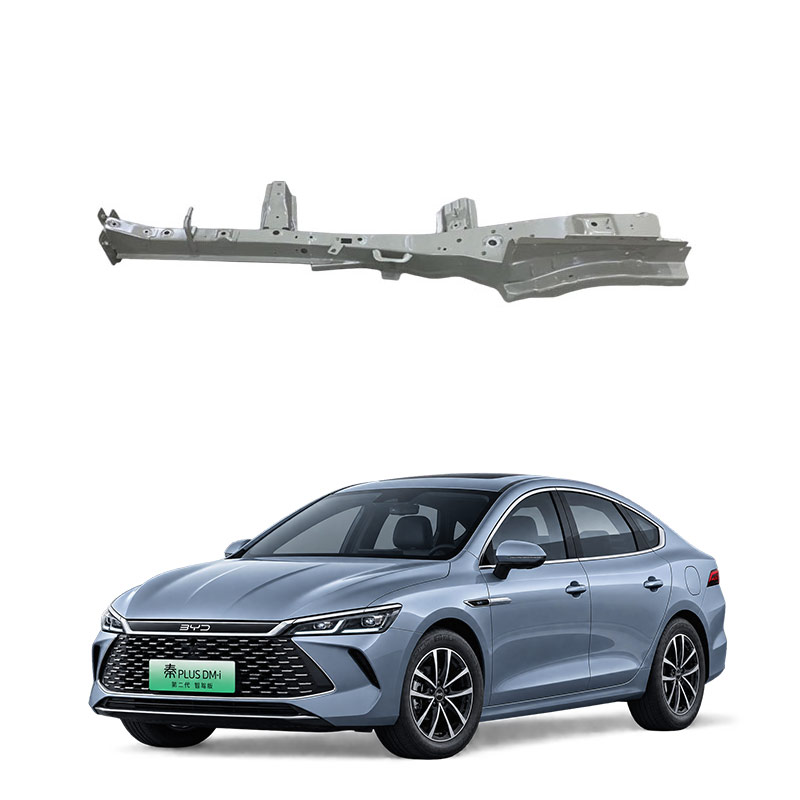

The function of the left rear longitudinal beam assembly of the car
The left rear longitudinal beam assembly is the core load-bearing structure of the vehicle's left rear section. Its main functions are to absorb and dissipate energy during rear-end collisions to protect the passenger compartment, while also supporting the vehicle and distributing the impact force. Specifically, it performs the following key duties:
Collision energy absorption: The rear longitudinal beam deforms and absorbs the impact energy, preventing the trunk area from easily invading the passenger compartment and protecting rear passengers' safety.
Supporting the vehicle: It is welded with the crossbeam to form a rigid frame, bearing the weight of the vehicle's rear end and maintaining the vehicle's rigidity and torsional strength.
Dispersing impact force: In a rear-end collision, the impact force is transmitted through the rear impact beam to the left and right longitudinal beams, then distributed throughout the vehicle frame to be shared and absorbed, avoiding excessive force on a specific area.
Protecting critical components: In electric vehicles, it can also protect components such as the fuel tank and battery pack located in the rear area.
It should be noted that even if the rear longitudinal beam is repaired, its strength is difficult to fully reach the original factory level, which will affect the vehicle's collision safety performance and the value of a used car. The repair must be carried out at a professional auto repair shop with complete equipment.
The left rear longitudinal beam is a core structural component of the vehicle body. If damaged, it is recommended to have it inspected and evaluated at a professional repair shop first. Based on the degree of deformation, decide whether to repair or replace. Do not simply treat it as a common sheet metal repair.
The rear longitudinal beam mainly functions to absorb and disperse collision energy. After damage, it will affect the vehicle's rigidity and safety. Even if the repair is done properly, its strength cannot reach the original factory level.
Severe deformation or wrinkles: It is recommended to replace the rear longitudinal beam directly. The strength can be made as close to the original factory state as possible through welding; otherwise, it is prone to leave safety hazards.
Regardless of whether it is repaired or replaced, the strength of the main beam after repair will be lower than the original factory level. The vehicle will be classified as an accident vehicle, and the second-hand residual value will typically decrease by 15% to 30%.
Maintenance precautions
Choose a reputable store: It is necessary to select a 4S store or a first-class repair shop with complete equipment and qualifications. Use a laser measuring instrument to locate and ensure that the error in replacement is controlled within 2mm.
Check after repair: After completing the four-wheel alignment and comprehensive inspection, otherwise, problems such as deviation, tire wear, and abnormal sounds may occur.
Potential impacts
Safety: The energy absorption effect during a secondary collision decreases, and the vehicle's protection capability weakens.
Handling: Incorrect four-wheel alignment data affects the stability and braking and steering performance of the vehicle.
Value: When selling the vehicle, it will be classified as an accident vehicle, and the price will be significantly discounted.
If the damage is not severe, correcting it at a professional shop will not cause major problems; if the deformation is severe, it must be replaced. Do not compromise. It is recommended to drive the vehicle to a professional repair shop for a comprehensive inspection first, and let the technician provide a solution based on the actual situation.
The left rear longitudinal beam is a core structural component of the vehicle body. After damage, it is usually recommended to follow the principle of "replace instead of repair", but the specific situation depends on the degree of damage. Minor deformations can be corrected and repaired; severe bending, tearing, or fractures must be replaced; otherwise, it will directly affect collision safety and driving stability.
The rear longitudinal beam is the core component of the side beam frame, responsible for absorbing and dispersing impact energy. Once damaged, the strength after repair is difficult to reach the original factory level.
First, determine the degree of damage
Minor deformation: such as small-angle bending or surface depression, it can be repaired through cold or hot alignment, having a relatively small impact on the vehicle's rigidity, and can restore most of the original factory state after repair.
Severe deformation: folding, twisting exceeding 15 degrees， or damage area exceeding half of the total size， loses the design strength and repairability， must be replaced.
How to determine： It is necessary for the repair technician to use the vehicle body electronic measuring instrument to detect the deformation amount， twisting degree and crack situation， and then decide whether to repair or replace.
Maintenance plan selection
Correction repair： Use the main beam correction instrument to pull back to the original state， suitable for minor deformation； after repair， reapply anti-corrosion and rust prevention treatment， and pay attention that the repair process will damage the original vehicle's anti-corrosion layer.
Cutting and Replacement: Applicable for severe damage. It involves cutting the old crossbeam and welding the new part. It is necessary to ensure that the new crossbeam matches the frame, with the size error controlled within 2mm.
