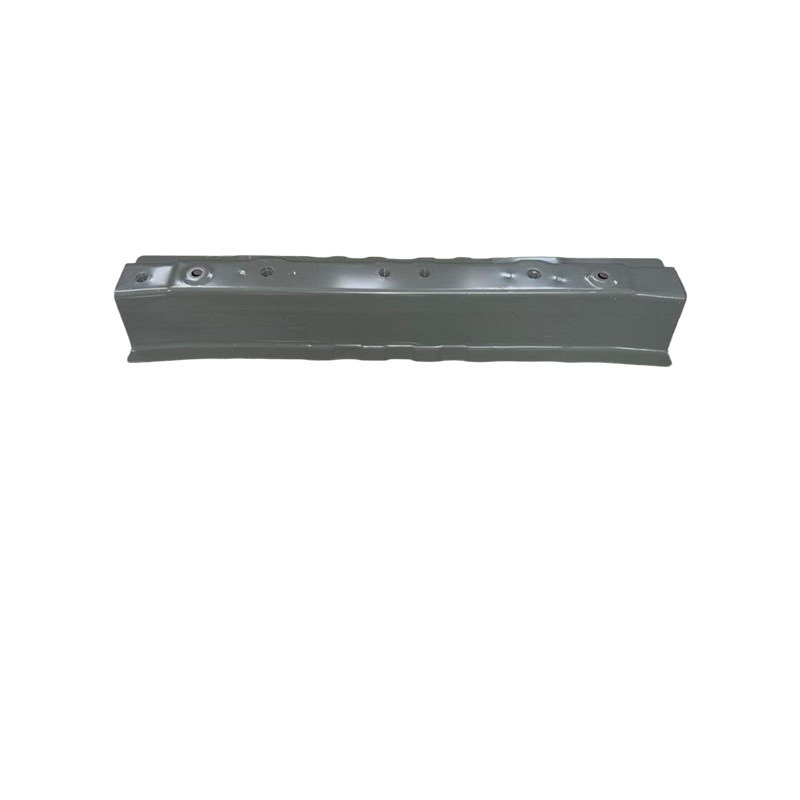

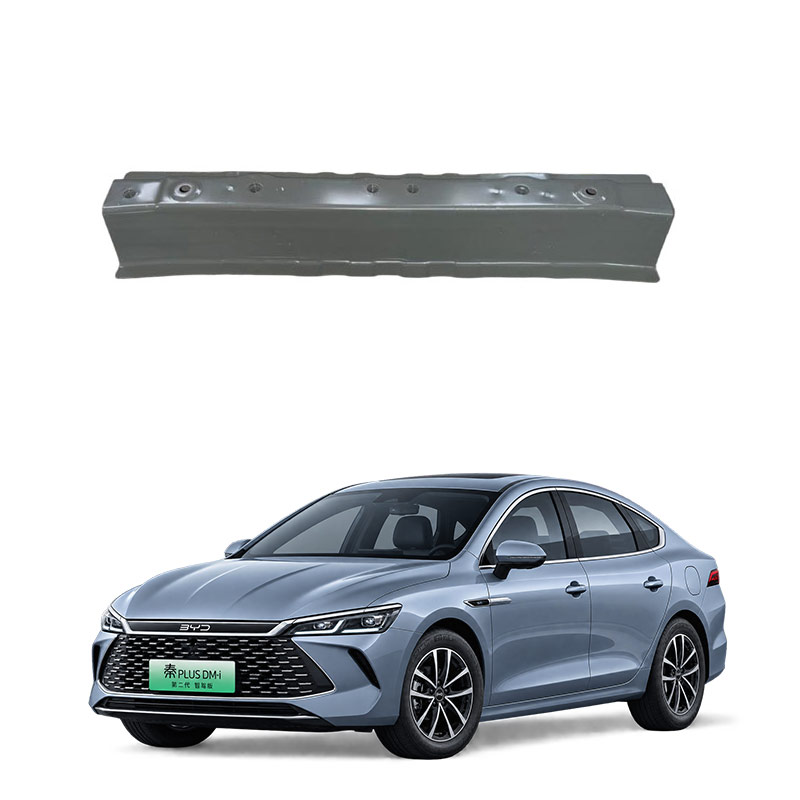

What is the rear floor crossbeam assembly of the car?
The rear floor crossbeam assembly of the car is a load-bearing component assembly located in the rear floor area of the vehicle, longitudinally connecting the left and right body structures. It mainly performs functions such as supporting, transmitting force, and providing collision protection.
Specifically, it can be understood from the following aspects:
Location and composition
It is part of the vehicle's bottom frame, spanning the rear floor area, and usually connects the rear longitudinal beams or threshold beams on both sides, forming a horizontal strengthening structure. This type of component often appears in the form of an "assembly", that is, it is welded or assembled from multiple parts such as the main crossbeam, connecting plate, and reinforcement components. For example, some patents mention that it may include crossbeam frames, crossbeam plates, and even integrated cable guiding components and other functional components.
Main function
Enhance vehicle rigidity: Connect the left and right longitudinal beams laterally, form a grid-like structure for the chassis, enhance the torsional stiffness and overall stability of the vehicle, and reduce the jolting sensation during driving.
Load-bearing and support: Provide installation support points for rear seats, trunk, subframe, rear shock absorbers, etc.
Collision safety protection: In the event of side impact, side pillar impact or rear impact, it can effectively transfer and disperse the impact force, reduce vehicle deformation, and protect passengers as well as key components such as the fuel tank and battery.
Material and Craftsmanship
Depending on the vehicle model's positioning, the materials and craftsmanship also vary. The common structure is a stamped steel plate with a welded frame. For lightweight models, they may use aluminum or carbon fiber composite materials, such as extruded aluminum profiles, to ensure strength while reducing weight.
In simpler terms: It is like the "horizontal frame" at the bottom of the vehicle, connecting the left and right sides together, capable of withstanding the twisting during normal driving and supporting the vehicle during a collision.
The rear floor rear crossbeam assembly is a key structural component at the rear of the vehicle's floor. Its core function is to enhance the overall structural strength and stability of the vehicle and to disperse and absorb impact forces during a collision, protecting the occupants' safety.
Specifically, it mainly performs the following functions:
Improving collision safety performance
Resisting side and rear impact forces: By connecting the left and right vehicle structures, when a side or rear collision occurs, the crossbeam can effectively disperse and absorb impact energy, preventing the collision force from directly transmitting to the cabin, protecting the occupants.
Enhancing connection strength: Some designs (such as the trapezoidal plate structure) can provide deformation space for the connection between the crossbeam and the longitudinal beam, preventing the connection point from tearing during a severe impact and buffering and absorbing the impact force.
Supporting the vehicle structure and components
Connecting the left and right longitudinal beams: As the horizontal frame, it connects the left and right longitudinal beams into a whole, allowing them to bear the load together, significantly enhancing the torsional stiffness of the frame and ensuring the vehicle's stability in bumpy or extreme road conditions.
Providing installation support: It provides installation points for rear or third-row seats, trunk covers, sealing strips, etc., ensuring the secure installation of these components.
Integrating installation points: In some designs, the rear floor crossbeam will integrate suspension installation points to meet the strength requirements of the suspension system and simplify the installation structure.
It should be noted that the specific structure and function of the rear floor crossbeam may vary depending on the vehicle model and design requirements. For example, some may integrate seat installation structures to adapt to different vehicle layouts, and some may incorporate components such as cable guide assemblies.
