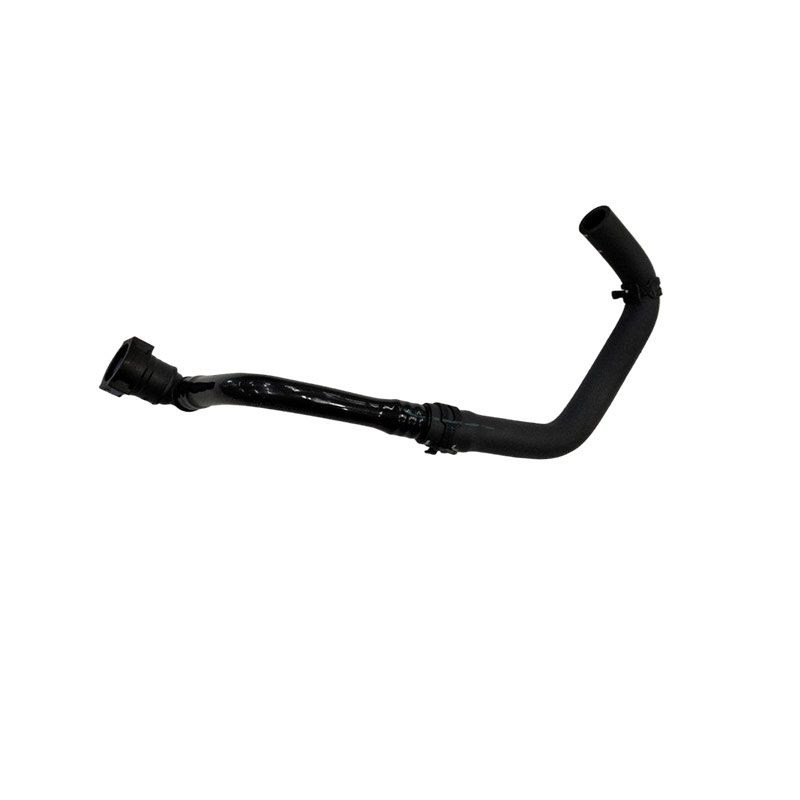

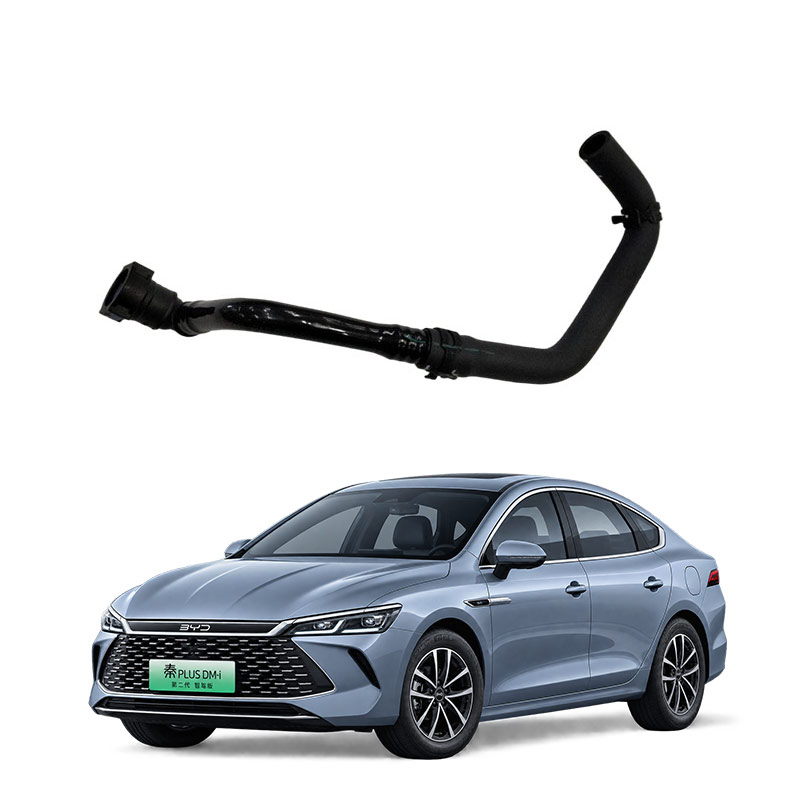

Automobile fuel evaporation emissions - The role of nylon pipe components
The nylon pipe components in the automotive fuel evaporation emission system serve as the transportation channels for the evaporated fuel vapor, safely guiding the vapor from the fuel tank to the activated carbon canister for adsorption and storage, and then sending it into the intake manifold during engine operation to participate in combustion, thereby preventing hydrocarbons from directly being discharged into the atmosphere.
In simple terms, it is the "blood vessels" of the entire EVAP system, responsible for connecting the fuel tank, activated carbon canister, and engine intake manifold, ensuring that the vapor flows in the closed pipeline along the set path. The reason for using nylon material is that it has the characteristics of corrosion resistance, high pressure resistance, lightweight, and good flexibility, which can adapt to the high temperature of the engine compartment and the fuel vapor environment, and is not prone to aging or cracking.
The specific division of labor of the nylon pipes in the system
Fuel tank → Carbon canister section: The evaporated fuel vapor in the fuel tank passes through the nylon pipe into the activated carbon canister, where it is adsorbed and stored by the activated carbon to prevent the vapor from directly escaping into the atmosphere.
Carbon canister → Intake manifold section: When the engine is running, the ECU controls the electromagnetic valve of the carbon canister to open, using the vacuum suction of the intake manifold to draw the adsorbed fuel vapor from the carbon canister through the nylon pipe into the combustion chamber for combustion.
The working logic of the entire EVAP system
When parking / refueling: The fuel vapor from the fuel tank enters the carbon canister through the pipeline and is adsorbed by the activated carbon to prevent leakage.
When the engine is running: The ECU controls the opening and closing of the electromagnetic valve based on speed, temperature and other signals, allowing the vapor to enter the intake manifold as needed for combustion, reducing emissions and saving fuel.
Monitoring function: The system can also monitor whether the pipeline is blocked or leaking through pressure sensors. When an abnormality is detected, it triggers a fault code alert.
It should be noted
Once the nylon tubes age, crack or the interfaces loosen, it will cause fuel vapor leakage, which not only increases emission pollution but also may trigger engine fault codes. During daily maintenance, pay attention to whether there are cracks or oil stains on the surface of the pipelines. If any problems are found, replace them in time.
Regarding the faults of the nylon tube components in the automotive fuel evaporation emission system, the common manifestations are that the engine fault light is on and the system reports faults such as fuel evaporation system leakage (such as fault codes P0456, etc.). The main reasons are usually pipeline damage, poor sealing of the joints, or aging due to high-temperature baking.
Common Fault Points
Pipeline damage or leakage: The nylon tube may crack due to stone impact, vehicle vibration or long-term high-temperature baking (such as when the pipeline is close to the exhaust pipe) during driving, resulting in gasoline vapor leakage.
Poor sealing of the joint: The sealing ring at the pipeline interface becomes old or is assembled improperly, forming a tiny leakage point.
Faults of the electromagnetic valve or carbon canister: If the nylon tube is connected to the carbon canister or electromagnetic valve, and the electromagnetic valve is stuck or the carbon canister is clogged, it will also trigger a similar leakage alarm.
Troubleshooting and Resolution
First, perform smoke leak detection: The repair shop uses a smoke leak detection instrument to inject smoke into the electromagnetic valve pipeline of the carbon canister and observe the smoking location to quickly identify the leakage point.
Check key areas: Prioritize checking the interfaces between the pipeline and the fuel tank, carbon canister, and electromagnetic valve, as well as whether there are obvious cracks, wear or high-temperature burn marks on the pipeline.
Targeted Replacement: If it is confirmed that the nylon tube is broken or the interface is aged, directly replace the corresponding pipeline or sealing parts; if the electromagnetic valve or carbon canister also has problems, they need to be dealt with together.
If the vehicle is still within the warranty period, it is recommended to check it at a 4S store. Some models have batch-specific pipeline design flaws (such as the pipeline being too close to the exhaust pipe), and you can try to apply for a goodwill claim to have the improved parts replaced for free.
Daily Prevention
Regular Inspection: Have the maintenance staff check the surface of the nylon tube for cracks, hardening or oil stains during maintenance.
Avoid overfilling: Overfilling of fuel may cause liquid fuel to enter the carbon canister, accelerating the damage of the pipeline and carbon canister.
