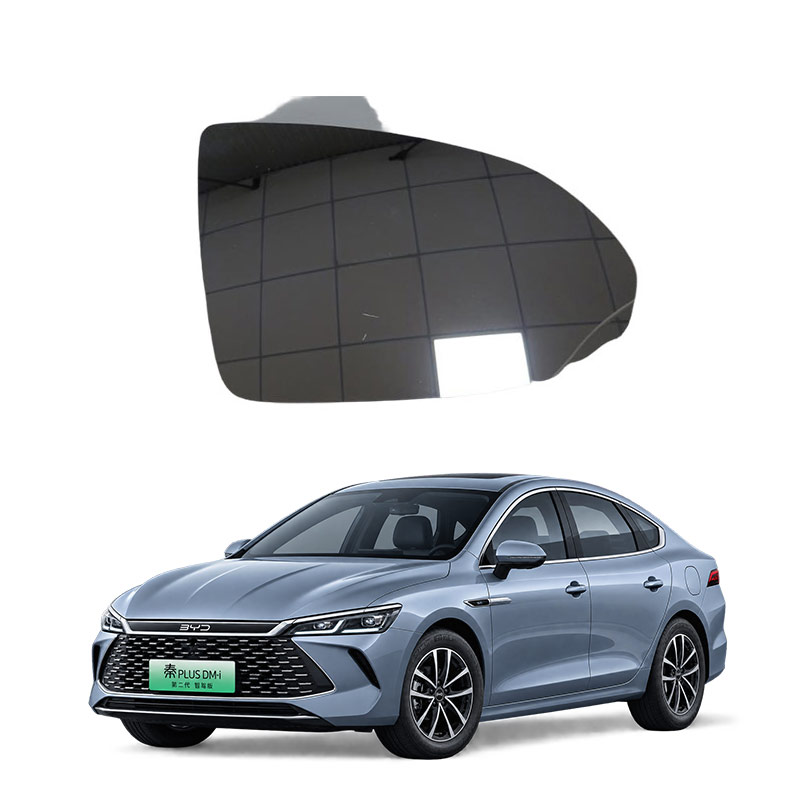

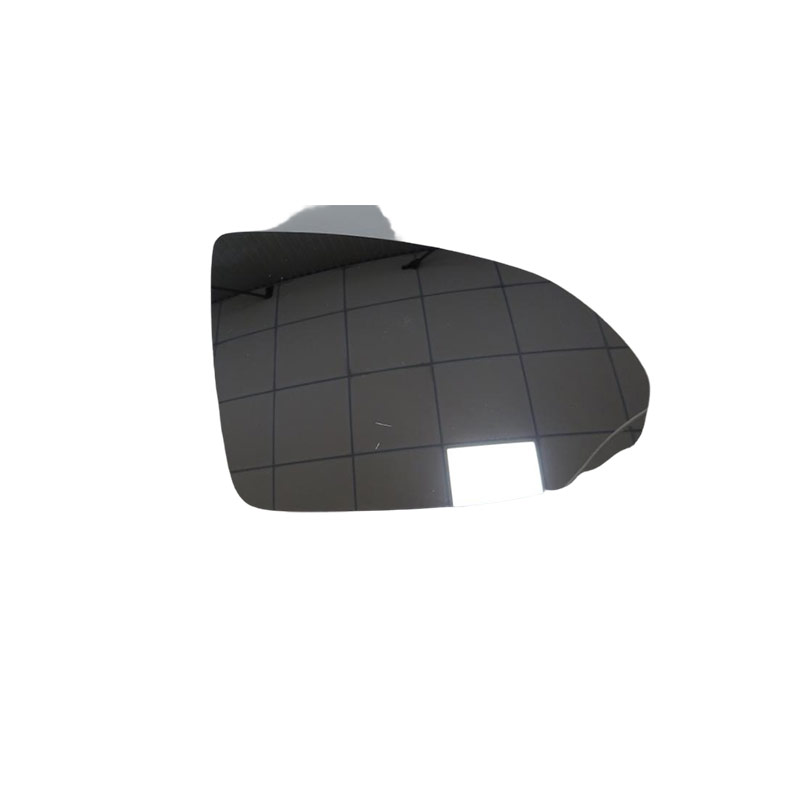

The function of the right mirror frame assembly of the car
The right mirror frame assembly is mainly used to fix the right exterior rearview mirror, securely connecting the mirror assembly to the car door or body, and ensuring that the mirror surface angle does not shake during driving. It is the basic structure that supports the normal operation of the rearview mirror.
Its specific functions can be broken down into the following points:
Fixation and Support: As a key component connecting the rearview mirror and the vehicle body, it withstands wind resistance, vibrations, and jolts during driving, keeping the rearview mirror stable and ensuring clear rear-viewing.
Integrated Adjustment Function: Inside or around the frame, there will be integrated electric adjustment motors, folding motors, etc., allowing the driver to control the up, down, left, and right swaying of the mirror lens, and even electrically fold and retract it.
Auxiliary Vision and Safety: Some models' right mirror frames are also used to fix auxiliary small round mirrors or split small square mirrors, helping to observe the right blind area, the position of the front wheels, and the rear section of the vehicle, reducing scratches and side-swipe accidents.
Protect Internal Components: The frame shell protects the mirror lens, motor, heating element, and other internal components from rain, sand erosion, and maintains the overall structure integrity.
It should be noted: If the right mirror frame is damaged or loose, the rearview mirror will shake during driving, directly affecting the right view, and in severe cases, it may fall off. It is recommended to have it repaired or replaced in time.
The right mirror frame is part of the entire rearview mirror assembly. The installation position and structure of different models may vary, and when replacing, it is usually necessary to match the original factory specifications of the model.
If there is a problem with the right mirror frame assembly of the car, don't rush to replace the entire assembly. Many cases are due to small parts being damaged, and repairing it is usually cheaper than imagined.
First, determine exactly what kind of fault it is, and then decide how to repair it:
Unable to adjust (up, down, left, right do not move): First, check if it is a problem with the door module. Some models (such as Hafer H6) have a malfunctioning right rearview mirror, which is actually a problem with the driver's side door module, not the rearview mirror itself. If the motor is not broken and the wiring is normal, it may be a problem with the position sensor (such as Volvo 08). In such cases, it often requires replacing the entire assembly.
Unable to fold or abnormal folding sound: It is likely to be a problem with the folding motor or internal gears. This is common in Audi vehicles. A small motor and gear replacement can fix it without replacing the entire assembly. If the motor teeth are damaged, there will be a clicking sound when folding, and usually, a replacement of the entire assembly is required.
Mirrors are loose or shaking: Most likely, the clamps are not tightened or the fixing screws are loose. First, press the edge of the mirror lens to listen for a "click" sound to reset, and if it doesn't work, remove the door interior panel and tighten the base screws.
Inaccurate adjustment, blind area: This is common in old cars. It may be a problem with the adjustment motor, poor wiring contact, or oxidation of the switch contacts, or internal adjustment gears wear.
Before doing it yourself, pay attention to the following points:
First, restart the vehicle to rule out temporary electronic control faults.
Check if the fuse is blown, and if the wire harness plug at the door interior panel is loose.
If you see cracks in the motor fixing bracket when disassembling, it is recommended to replace the bracket directly instead of just tightening the screws.
The adjustment, folding, heating, and turn signals of the right rearview mirror are separate circuits. If only one part fails, the problem usually lies in the corresponding motor or sensor, rather than the entire mirror frame being broken.
If your hands-on ability is average, or you still can't figure it out after troubleshooting, go to a reliable repair shop or 4S store. Use a diagnostic tool to read the fault code, which can save a lot of unnecessary detours.
