What is the left mirror frame assembly of the car?
The left mirror frame assembly of a car is simply a set of components installed on the left side of the car door to fix and support the left exterior rearview mirror. It is not a single part but a structural assembly that connects the rearview mirror to the vehicle body.
In simpler terms, it is the "base" and "framework" of the rearview mirror. This assembly typically consists of the following parts:
Mirror housing and base: The outermost plastic shell, the same color as the vehicle body, for protection and drainage.

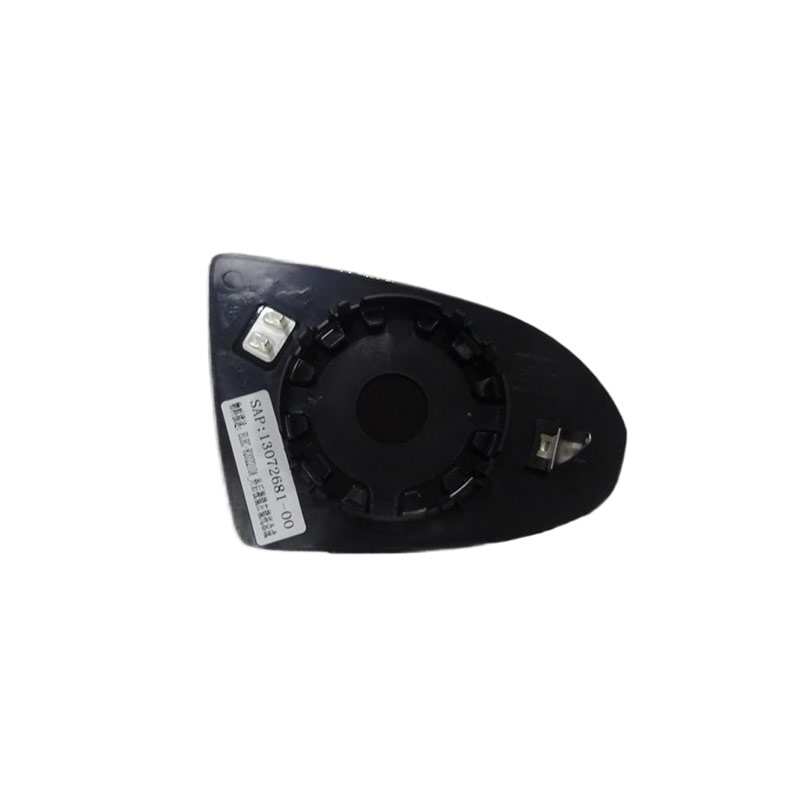

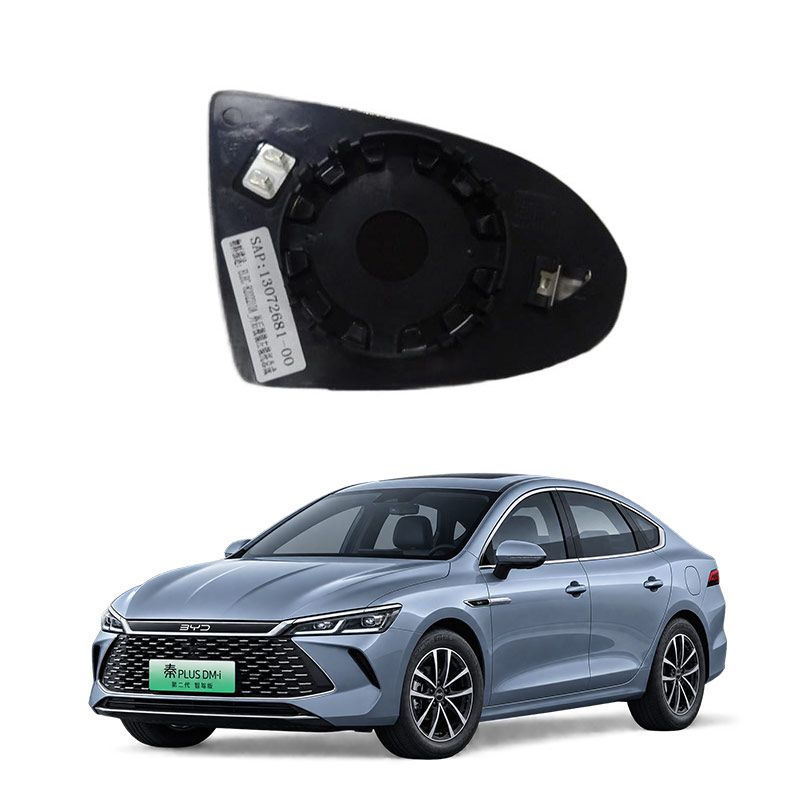

Mirror plate and adjustment mechanism: Fixing the mirror and connecting the micro motor and gear set to achieve up, down, left, and right adjustment of the mirror.
Bracket and rotating shaft: Connecting the mirror housing and the car door, supporting the entire rearview mirror. Some models also integrate electric folding functionality.
Internal wiring and accessories: Including heating elements, turn signals, adjustment motors, and wiring.
These components are usually integrated onto the car door and are part of the car's exterior accessories. If you need to replace or repair it, you typically need to disassemble the entire assembly or some of the parts together.
The core function of the car's left mirror frame assembly (i.e., the left rearview mirror base/bracket) is to firmly fix the rearview mirror on the vehicle body and ensure it can be adjusted in angle and has stable vision, directly affecting your safety when observing the left rear area.
It has the following specific functions:
Fixation and support: Stabilizing the rearview mirror assembly (shell, lens, motor, etc.) firmly on the car door or near the A-pillar, bearing the impact of driving bumps, sudden braking, and even minor collisions, preventing the mirror from loosening or falling off.
Ensuring vision adjustment: Through the internal structure connecting the angle adjustment mechanism (manual or electric), allowing you to adjust the mirror angle at any time to cover the blind area on the left rear; loose brackets can cause the mirror to shake, directly affecting judgment.
Integrated auxiliary functions: Some models' mirror frame bases also integrate turn signals, heating, electric folding, or blind spot monitoring and other module wiring and installation positions.
Safety design: Using high-strength metal or tough plastic materials, in the event of a severe collision, it will break according to the design to avoid sharp edges from scratching people.
Note: If the left mirror frame is damaged or loose, not only will the mirror shake, but it may also produce abnormal sounds due to wind resistance at high speeds or even fall off. It is recommended to have it repaired or replaced in time.
Common causes of car left mirror frame assembly failures are concentrated in the following categories: motor damage, mechanical jamming, circuit problems, and loose fixing parts. Don't rush to replace the assembly; in most cases, you can troubleshoot from simple to complex yourself to save on repair costs.
Determine the type of failure first
Lens adjustment failure: No response when pressing the adjustment button, or only one side fails. It could be oxidation of the button contacts, internal circuit shorting, or motor burnout or gear jamming.
Fold function abnormality: The rearview mirror cannot unfold when unlocking, or it folds in the opposite direction or shakes. It is likely an internal motor failure or mechanical jamming, requiring replacement of the motor assembly.
Mirror body loosening or abnormal sound: The mirror shakes during driving and makes abnormal sounds. It is mostly due to loose fixing screws, detachment of the lens clamps, or wear of the base ball head.
Troubleshooting steps
Check simple items first: Use an alcohol cotton swab to wipe the gap of the adjustment button to rule out dust or poor contact; then check if the wiring plug at the car door hinge joint is loose and reinsert it tightly.
Listen for sounds to determine: When pressing the button, you can hear the motor buzzing but the mirror does not move. It is likely that the internal transmission screw is off-center, requiring disassembling the mirror to reset the screw; if there is no sound at all, it is likely that the fuse is burned out, the circuit is broken, or the motor is faulty.
Check the fixing parts: If the mirror shakes, first find the rearview mirror base or the interior panel of the car door, use the appropriate tool to tighten the fixing screws; for some models, there are adjustable screws at the ball joint area.
Important Reminder
Before doing it yourself, make sure the vehicle has been turned off and safely parked. When tightening the screws, use moderate force to prevent slippage.
If the lens clip breaks, the ball head is severely worn, or the motor burns out, it will be difficult to handle by yourself. It is recommended to go to a 4S store or a professional repair shop to replace the parts directly.
When choosing replacement parts, make sure to check the model and year of the vehicle. The structure of the external rearview mirrors may vary for different models, and you also need to confirm whether it includes heating, electric folding and other functions.
Reference for repair costs: Tightening the screws or cleaning the contacts is basically free; replacing the motor assembly or the entire left mirror frame component varies in cost from several hundred to several thousand yuan depending on the model. Original factory parts will be much more expensive than brand parts.
