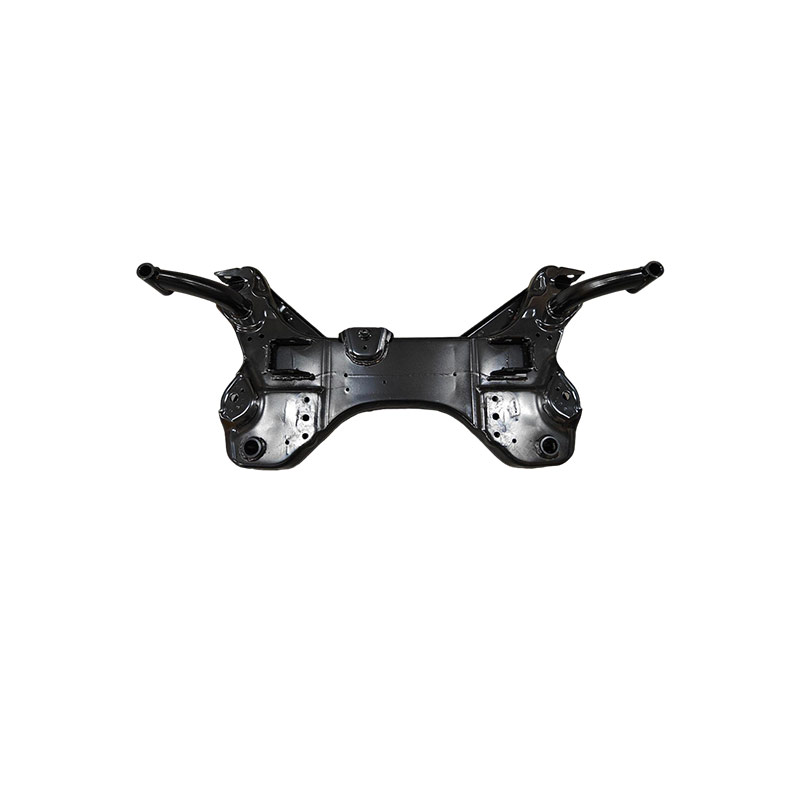

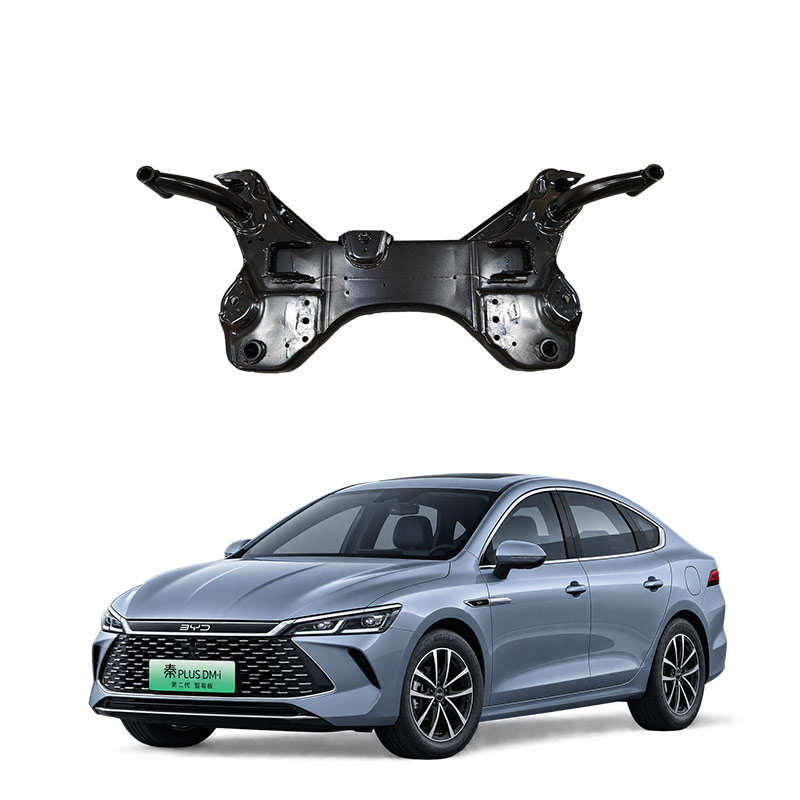

What is the front sub-frame assembly of the car?
"The front subframe assembly of a car" usually refers to the front subframe, which can be understood as a transitional connection structure between the suspension and the body. Components such as the engine, steering gear, and lower arm are first installed on it and then fixed to the body as a whole.
Its main functions are as follows:
- Enhancing handling: The subframe has good rigidity and deforms minimally when subjected to impact, providing more precise suspension and wheel alignment.
- Filtering vibrations: It is connected to the body through rubber bushings, filtering some road vibrations and improving comfort.
- Facilitating production and assembly: First, the suspension, engine, and other components are integrated onto the subframe, and then installed as a whole on the body on the production line, which is efficient and has more stable positioning accuracy.
The front subframe also has different structures. The common ones include the the "full frame" type. The former is lightweight and suitable for platform production， while the latter has higher structural strength.
It should be noted that the subframe is not a complete frame； it is merely an intermediate support that connects the "axle/suspension" and the "main frame". Do not confuse it with the front longitudinal beam or the front bumper bracket， which are part of the front structure.
The "subframe" in the front of a car usually refers to the front subframe ， which is a key transitional structure connecting the suspension， engine， and body. Its core functions are to enhance handling accuracy， filter road vibrations， improve assembly efficiency， and protect the body in a collision.
In simple terms， the front subframe is first assembled with the suspension， engine， and other components into a single unit， and then connected to the body through rubber or hydraulic bushings， rather than directly attaching these components to the body.
Main functions
- Enhancing handling performance： The subframe has good rigidity and minimal deformation， allowing for more precise suspension and wheel alignment. The vehicle is more stable during high-speed cornering or emergency lane changes， and the steering response is also more direct.
- Filtering vibrations and noise： The subframe is connected to the body through elastic rubber bushings， absorbing road bumps and engine vibrations， making the interior quieter and the ride more comfortable.
- Improving assembly efficiency and quality： On the production line， the suspension， control arms， etc. are integrated onto the subframe to form a complete assembly， which is then installed onto the body as a whole， which is fast and ensures more stable positioning accuracy.
- Enhancing collision safety： The subframe can absorb some impact energy during a collision， reducing damage to the body and the passenger compartment， and also controlling the descent trajectory of the engine to avoid it invading the driver's cabin.
Common structures and materials
- Structural forms： Common types include full frame (U-shaped)， H-shaped， (semi-sectioned) three forms. The full frame has the best rigidity and the highest safety level， H-shaped is more common in mid-range vehicles， has lower cost and lighter weight， mostly used in economy-class family cars.
- Materials： Steel subframes have high strength， low cost， but are heavy； aluminum subframes are lighter， less prone to rust， can improve handling and fuel efficiency， but are expensive， and can only be replaced as a whole after a collision.
When purchasing or repairing， the front subframe is not a universal part. It must be matched according to the vehicle model and part number， such as left and right sides， and the driver and passenger positions often have differences； for key collision safety parts， it is not recommended to use inferior substitutes.
