What is the front cabin buffer block of a car?

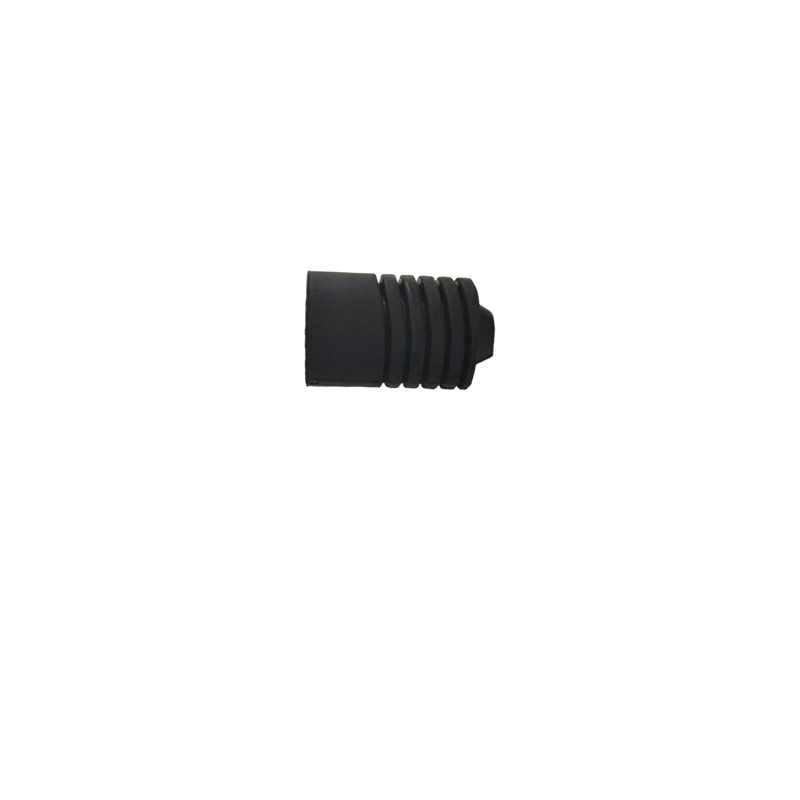

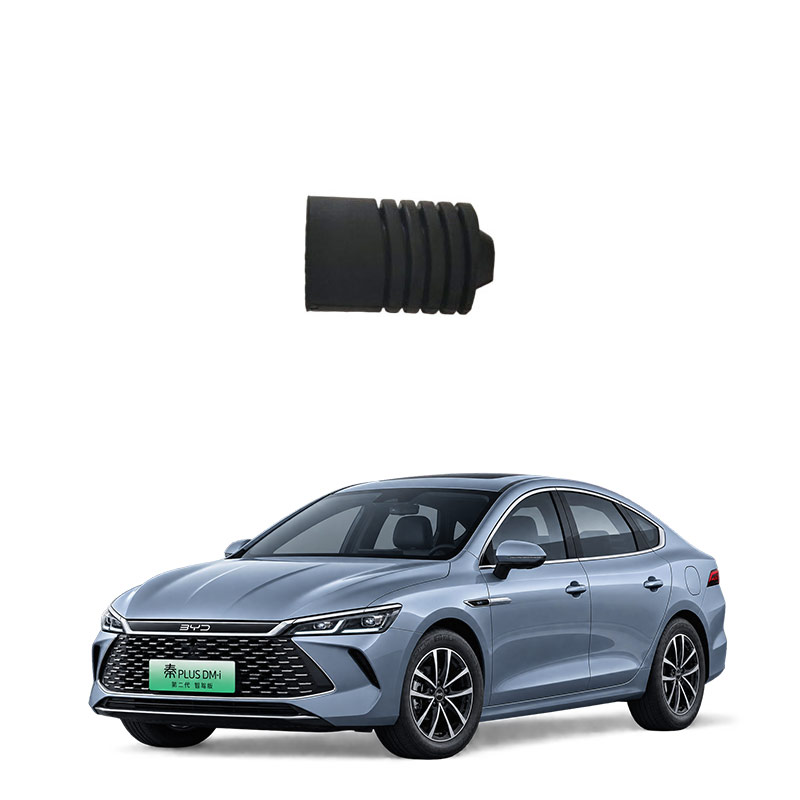

The front cabin buffer blocks usually refer to the rubber/polyurethane soft pads installed on the inner side of the engine hood (at the front sides or near the latch), also known as "front cabin cover limit buffer pads", or buffer gel blocks, gel pads. Their main functions are:
Buffer and shock absorption: When the engine hood is closed, it is first compressed to absorb the impact force, avoiding the "clunking" sound caused by direct metal collision, and can also protect the paint surface and sheet metal over the long term.
Limiting support: It supports the gap between the engine hood and the vehicle body, preventing abnormal noise when the hood moves up and down during bumps.
Auxiliary sealing: It reduces the infiltration of rain through the gaps into the engine compartment.
Note: Do not confuse it with "shock absorber buffer blocks": That is the foam/polyurethane block installed in the shock absorber to prevent the shock absorber from "bottoming out" and damaging it. The front cabin buffer block is a small soft pad on the engine hood, and their positions and functions are completely different.
In addition, there is another type of "buffer block" in the front cabin, which is "engine foot glue/upper cover plate buffer pad", used to absorb the vibrations of the engine operation, reducing the transmission of vibrations to the cabin. If it ages and hardens, during bumps, it may produce a "thumping" sound.
Daily care:
The buffer blocks will age and deteriorate due to sunlight exposure, high and low temperatures. Generally, they should be checked once every 3-5 years to see if they have hardened, cracked or flaked off.
If you find that the feel when closing the engine hood becomes "empty", the gaps are uneven or water seeps in during rain, it is likely that the buffer blocks have failed. Replacing them is very cheap and can be done yourself. The front cabin buffer blocks mainly absorb shock and vibration, preventing metal parts from colliding directly, and protecting the shock absorber, engine hood and the vehicle body.
Specifically, its functions are reflected in the following aspects:
Protecting the shock system: This is the core function. When the vehicle passes through potholes rapidly， the shock absorber will compress significantly， and the buffer blocks can act as a cushion at this time to prevent the shock absorber from "bottoming out" or bursting through， avoiding direct metal collision， thereby extending the lifespan of the shock absorber and suspension.
Reducing vibrations and noise： The buffer blocks can effectively absorb the high-frequency vibrations from the road bumps and engine operation， reducing the noise of driving， improving the quietness and comfort of the cabin.
Limiting suspension travel： As a device to limit the maximum deformation of the suspension， it can reduce the direct impact of the axle on the vehicle body， preventing excessive deformation of the elastic elements.
"Soft landing" of the engine hood： It provides flexible support when the engine hood is closed， avoiding abnormal noise caused by direct metal collision， scratching the paint surface， and maintaining the gap between the engine hood and the fender， reducing shaking and wind noise during driving.
In simple terms， buffer blocks at different positions in the front cabin each have their own duties， but the core logic is to use their own elastic deformation to absorb shock and protect more expensive components.
The most typical symptom of a failure of the front cabin buffer blocks is that when passing over bumpy roads ， the front cabin emits "clunk" "thumping" sounds， or the engine hood is difficult to close， and the gaps are uneven. This component is a rubber part， which will age and harden， crack or fall off. The failure manifestations and solutions for different positions of the buffer blocks vary greatly. The following will be discussed separately.
Two common positions of the front cabin buffer blocks and their failure manifestations
Engine hood buffer block (hood gel block)： Installed on the sides of the engine hood or the edge of the front cabin， its main function is to support the hood and absorb the impact force when closing. After aging and failure， the engine hood will shake and make a "clicking" sound when passing over bumps， and the noise when closing the engine hood becomes louder， or there will be a "clunking" sound of metal collision.
Shock absorber buffer block (top gel buffer gel)： Installed at the top of the shock absorber， it is a buffer between the shock absorber and the vehicle body. After aging and breaking， when passing over uneven roads， the chassis or the front cabin position will make a "clunk clunk" sound， and in severe cases， the buffer fails， and the shock absorber cylinder directly hits the vehicle body.
Self-examination and solution
First, check the engine hood buffer block: Open the hood and check if the rubber cylinders on both sides of the front compartment are aged, cracked or missing. If it is a threaded adjustable type, you can rotate it to adjust the height - if it feels difficult to close the hood, it means the cylinder is too high, and turn it clockwise to lower it; if the gap between the hood and the fender is too small, it means it is too low, and turn it counterclockwise to raise it. Try to adjust both sides to the same height.
Then, check the shock absorber buffer block: After lifting the vehicle, observe if there are any obvious cracks, hardening or fractures on the surface of the rubber buffer block at the top of the shock absorber. If there is significant looseness when shaking the shock absorber assembly by hand, it is basically a failure of the shock absorber.
Replacing is not complicated: These rubber parts are inexpensive and can be bought online by model. The engine hood rubber blocks are mostly fixed by threaded rotation or snap fasteners, and can be disassembled and assembled by pliers or hands within ten minutes, without the need for professional tools.
If the shock absorber top rubber fails, it is recommended to replace both sides of the same axis at the same time to avoid inconsistent support force on both sides of the vehicle and causing deviation; for vehicles with a front McPherson suspension, it is best to replace the flat bearing at the same time, and remember to do four-wheel alignment after replacement.
Other situations that may be misdiagnosed as buffer block failures
If the abnormal noise persists after replacing the buffer block, it may be due to the aging of other components. Common ones include:
- Problem with the upper support of the shock absorber or the flat bearing: When turning the steering wheel at the stand, the front suspension makes a "clicking" sound, which is mostly due to the different axis of the shock absorber or damaged bearings, and needs to be disassembled for inspection.
- Aging of the rubber sleeve of the engine decorative cover: When starting the cold engine or stepping on the accelerator, the cover makes a "clicking" sound, replacing the matching buffer rubber block can solve the problem.
