What is the rear stabilizer bar pull rod and ball joint assembly of the car?
The rear stabilizer bar link and ball joint assembly is a flexible hinged transmission mechanism that connects the rear lateral stabilizer (anti-roll bar) to the suspension control arms/shock absorbers. Its core function is to precisely transfer the torsional force generated by vehicle body roll, while allowing for the multi-directional angle changes of the suspension during up-and-down movement, in order to suppress rear body roll and ensure handling stability.
Core Definition and Structure

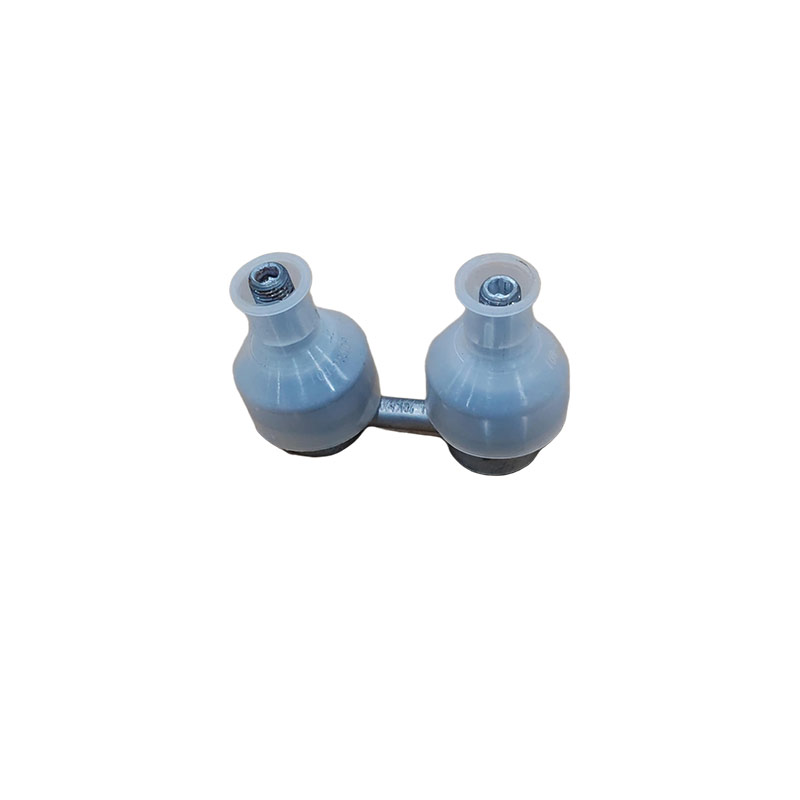

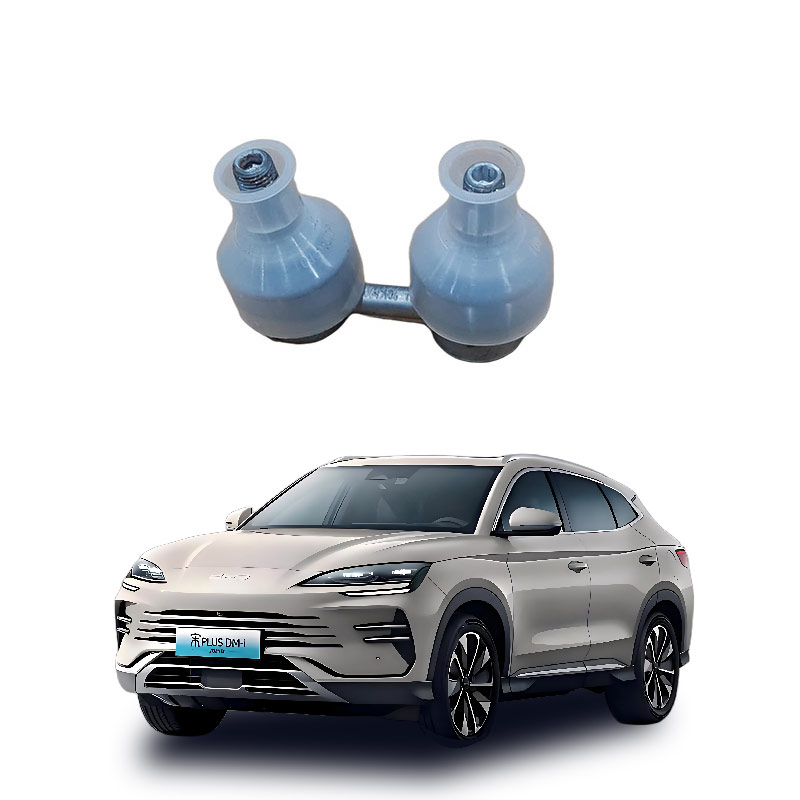

Component Composition: Consists of the stabilizer small link (rope), both ends of the ball joint (including ball pin, ball seat, and grease chamber), dust-proof sealing cover, and fixing nut;
Installation Position: Located in the rear suspension system, one end is hinged to the end of the rear stabilizer bar through the ball joint, and the other end is connected to the rear lower arm or shock absorber bracket;
Motion Characteristics: The ball joint structure allows for multi-degree-of-freedom micro oscillation during vehicle cornering and bumpy driving, avoiding interference or fracture caused by rigid connection.
Main Function Principle
Torque Transmission: When the vehicle corners, the height difference between the left and right rear wheels causes the stabilizer bar to twist. This component transmits the anti-roll torque from the stabilizer bar to the suspension pivot point;
Decoupling Movement: In straight driving or single-wheel bumps, it allows the suspension to independently jump up and down, preventing unnecessary resistance from the stabilizer bar and balancing comfort and handling;
Damping Noise Reduction: The internal rubber bushing or low-friction bearing structure absorbs high-frequency vibrations, preventing metal direct impact from causing a "clicking" sound.
Failure Symptoms and Impacts
Typical Symptoms: When passing over speed bumps or potholes, the rear chassis emits a clear metallic impact sound (clicking noise), during lane changes, the rear follows poorly (floats), and the side roll amplitude increases significantly during cornering;
Potential Risks: If the ball joint clearance is too large, it will cause an increase in steering free play, abnormal tire wear, and in extreme cases, the connecting rod may break, completely rendering the stabilizer bar ineffective, severely affecting handling safety.
This component is a chassis vulnerable part. It usually fails due to rubber aging or ball joint looseness as the vehicle ages (such as 6-100,000 kilometers), and it needs to be replaced in pairs to maintain chassis balance.
The rear stabilizer bar link (commonly known as "small suspension arm") and ball joint assembly of the car have the core function of rigidly connecting the lateral stabilizer to the rear suspension guide arm, transmitting torsional force to suppress vehicle body roll, and using the ball joint structure to allow the suspension to have multi-angle relative movement during up-and-down movement.
