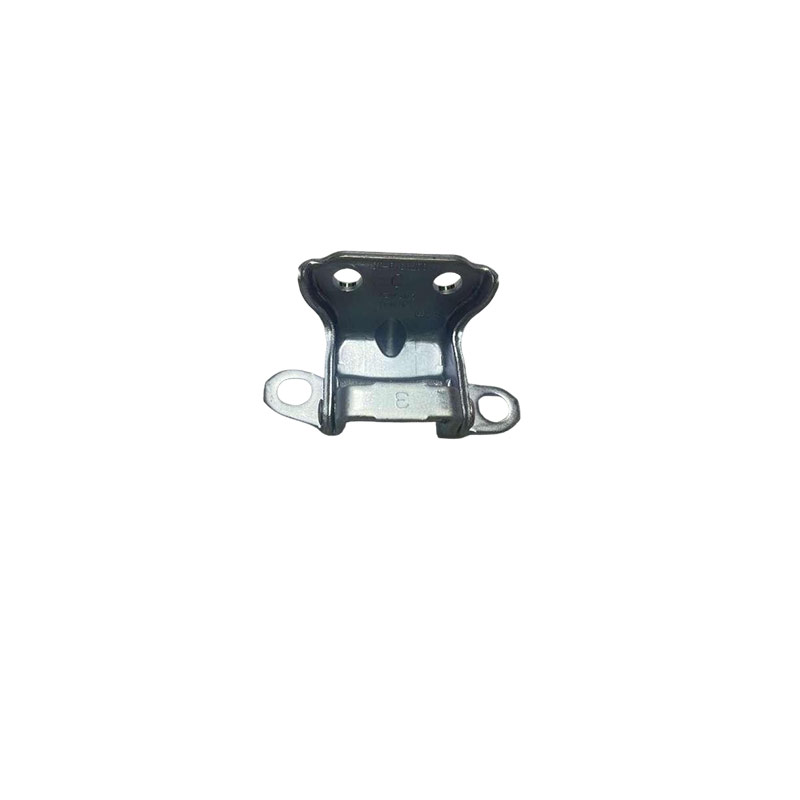

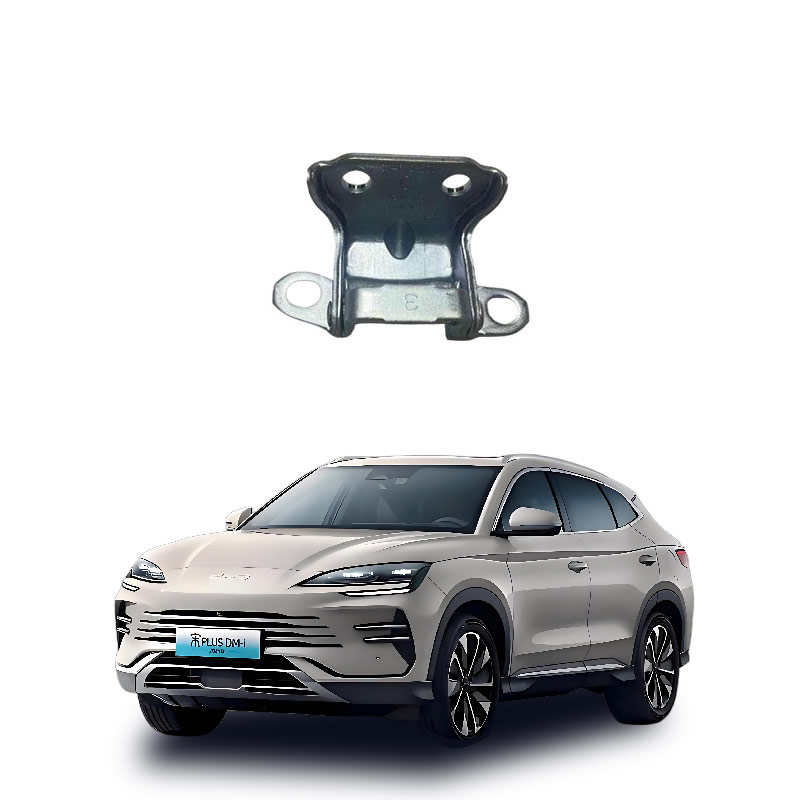

What is the hinge assembly on the right front door of the car?
The hinge assembly on the right front door of the car is a mechanical transmission component that connects the right front door to the vehicle body pillar, supports the weight of the door and enables its rotation and opening/closing around an axis. It is typically composed of the upper hinge body, a pin shaft, bearings/liner, and fixing bolts.
Core Definition and Composition
Essence: This is the "hinge" of the door, specifically referring to the force-bearing support point installed on the right front side of the door.
Main Components:
Body part: A base fixed to the B-pillar or A-pillar (depending on the opening direction) via bolts.
Door part: A connecting plate fixed to the upper edge of the right front door.
Rotation mechanism: Includes the pin shaft and bearings/liner, ensuring smooth rotation of the door and reducing wear.
Fixing parts: High-strength bolts or rivets used to lock the components in place on the vehicle body and the door panel. Core function
Load-bearing support: When the door is open, 100% of the door's weight is shared by the upper and lower hinges, preventing the door from sagging and deforming.
Motion guidance: Limits the door to rotate along a specific axis, ensuring precise opening and closing trajectories and avoiding interference with the vehicle body.
Safety retention: Maintains the door structure stable during collisions or vibrations, and cooperates with the door lock to prevent accidental opening.
Common types and features
By manufacturing process: Mostly in the form of stamping (low cost, light weight) or casting (high strength, common in German vehicles), both meet national standards for strength.
By structure: Divided into simple hinges (requiring an independent limiter) or integrated limiter hinges (with built-in limit teeth or torsion bar functions).
Position characteristics: The upper hinge of the right front door is usually arranged in the same line as the lower hinge, with an axis that slightly inclines inward to optimize the opening angle and uniformity of the gap.
This component is a key safety component. If there are abnormal sounds, the door sinks, or the opening and closing is stuck, it usually indicates that the hinge pin is worn, the bearing fails, or the installation position is loose, requiring professional maintenance or replacement.
The core function of the right front door upper hinge component is to connect the door to the vehicle body, bear the weight of the door, and guide its smooth opening and closing along a fixed trajectory.
Support and bearing: Supports the weight of the right front door (usually 20-40 kg), preventing the door from sagging or deforming, and ensuring the long-term suspension stability;
Motion guidance: Limits the rotation axis of the door and the opening and closing trajectory to avoid friction with the vehicle body or abnormal sounds during opening and closing;
Position retention: Maintains the uniformity of the gap between the door and the vehicle body, ensuring sealing and the tightness after closing;
Safety assistance: Some designs integrate limiters or anti-shock structures, assisting in force dispersion during collisions and reducing the risk of detachment.
This component usually works in conjunction with "limiters" (the hinge is responsible for bearing weight and rotating, and the limiters are responsible for limiting the maximum opening angle), and their functions cannot be confused.
The core failure symptoms of the right front door upper hinge component are door sinking, abnormal sounds or sticking during opening and closing, poor closure, or vibration during driving, and require first distinguishing whether it is a lack of oil and loosening (repairable through maintenance) or wear, deformation, or fracture (must be replaced).
Core symptoms and quick self-check
Abnormal sound characteristics: When opening or closing the door, emits a dry "clicking" sound (lack of oil) or a "creaking/clicking" metallic friction sound (wear/metal debris); continuous vibration and abnormal sounds during driving.
Position deviation: The right front door is significantly sinking (the lower edge rubs against the threshold or the gap is wider at the top and narrower at the bottom), it requires a strong impact to lock when closing, or there is still a shaking margin after closing.
Physical state: Visual inspection of the hinge shows rust spots, cracks, or deformation, or when shaking the door panel, it feels that the fixing screws are loose, or the gap between the hinge shaft is too large.
Simple judgment: Clean and apply lubricating agent (such as white lithium-based grease) and repeatedly open and close 3-5 times. If the abnormal sound still exists and there is obvious margin or sinking, it is determined as structural damage, and replacement is required.
Treatment plan and steps
Lubrication and maintenance (for lack of oil/mild rust): Clean the hinge gap of oil residue, apply white lithium-based lubricating grease or anti-rust agent (do not use ordinary engine oil), repeatedly open and close to allow the grease to penetrate; maintain once every 2-3 months.
Fastening adjustment (for loose screws/mild misalignment): Mark the original position, loosen the hinge fixing screws (do not remove), adjust the height/position of the door to have uniform gaps, tighten the screws in a diagonal sequence; if the screws are stripped, replace them.
Replacement component (for wear/deformation/fracture): If there is still margin, abnormal sound, or the door cannot be reset after lubrication and adjustment, the upper hinge assembly must be replaced; involving vehicle body structural safety, it is recommended to be operated by professional technicians to prevent installation deviation from affecting collision performance.
Safety warnings and precautions Safety Risks: The hinges are safety components. Severe wear and tear may cause the car door to accidentally open during driving or fail to remain locked during a collision, thereby affecting the overall crash safety of the vehicle.
Operating Prohibitions: Do not forcefully open or close the door that has become deformed and stuck. This could exacerbate the risk of fracture; when adjusting, two people must cooperate to support the door to prevent it from suddenly dropping and damaging the paint or new parts.
Professional Advice: If there are cracks at the welding points of the hinges, obvious metal fatigue, or deformation of the vehicle frame, do not attempt DIY repairs. Instead, it is essential to go to a reputable repair shop for professional assessment and replacement.
