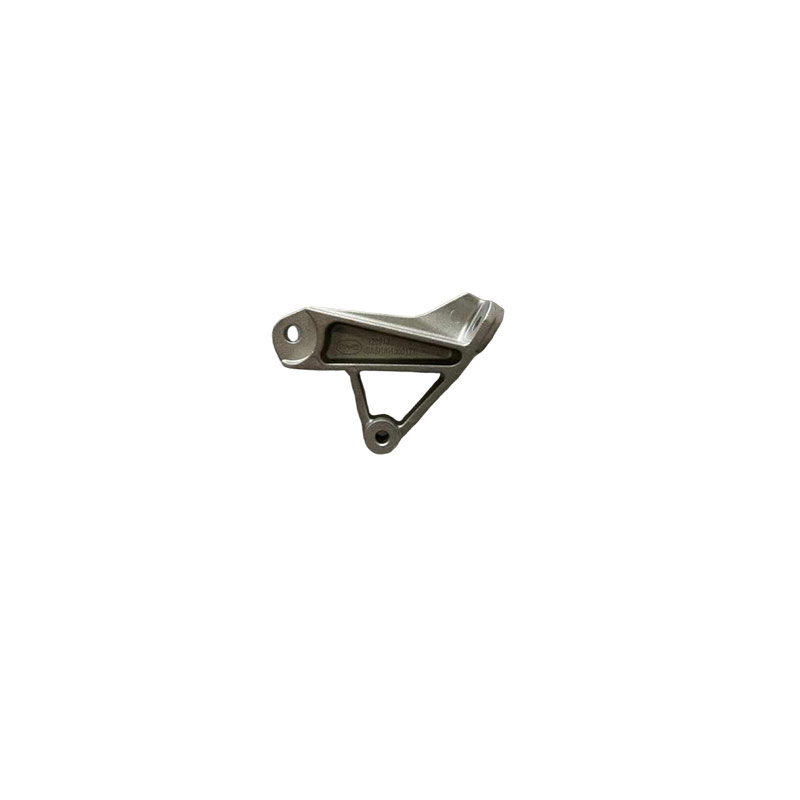

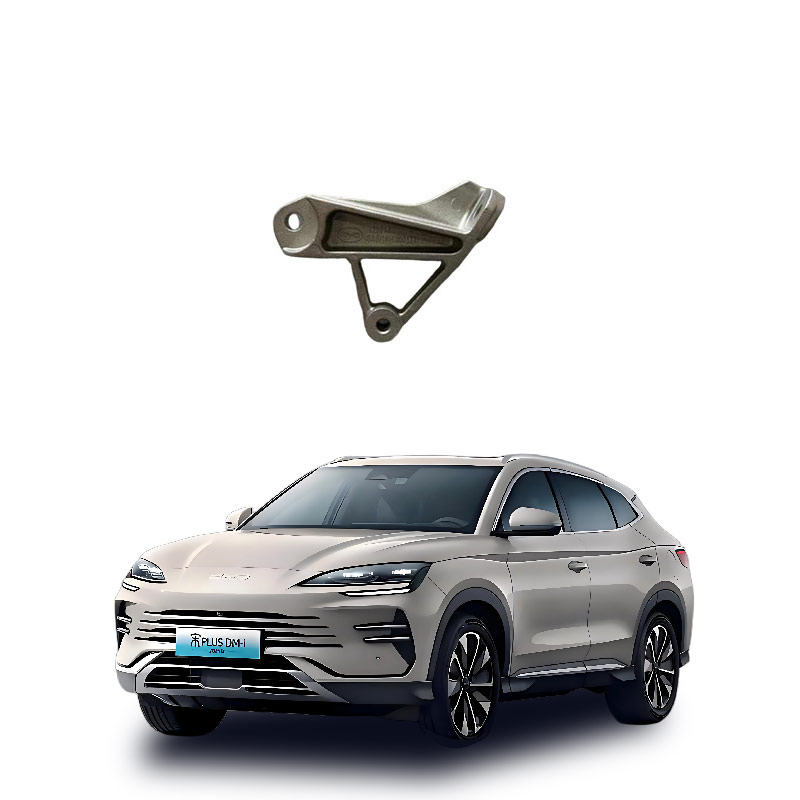

What is the connection bracket between the car engine and the transmission?
The engine and transmission connection bracket, also known as the engine mounting system (commonly referred to as "engine feet" or "torque brackets"), is a supporting, positioning, and vibration-isolating component that connects the powertrain (engine + transmission) to the vehicle body or subframe. Its main function is to bear weight, limit displacement, and absorb vibrations.
Core Definition and Composition
Scientific name: Engine Mount / Powertrain Mount;
Common name: Engine foot glue, engine bracket, torque bracket, engine isolation pad;
Structural composition: Metal bracket body (cast aluminum or stamped steel) + elastic buffer element (rubber sleeve or hydraulic shock absorber) + connecting bolts;
Connected objects: One end is fixed to the engine block or transmission housing, and the other end is fixed to the vehicle body longitudinal beam or subframe.
Main Categories and Functions
Engine foot glue (main support/isolation)
Location: Mostly at the bottom of the engine or below the side;
Function: Directly bear the weight of the powertrain, absorb high-frequency vibrations, and prevent transmission to the driver's cabin (noise reduction, vibration reduction);
Characteristics: Usually in the form of rubber blocks or hydraulic structures, focusing on vertical vibration isolation.
Torque bracket (limitation/anti-torsion)
Location: Mostly at the engine side or front, connecting the front axle/subframe;
Function: Limit the intense torsion and lateral displacement of the engine during acceleration, deceleration, or gear shifting, and balance the reaction force generated by the output torque;
Characteristics: Shape like a "iron rod" or arm-like, containing special rubber sleeves, focusing on lateral/rotational stability.
Summary of Key Functions
Support and positioning: Fix the spatial position of the powertrain, prevent displacement and collision during driving;
Vibration isolation and noise reduction: Through elastic elements to attenuate engine vibrations, improving NVH (noise, vibration, and harshness) performance;
Stress buffering: Alleviate impact loads during start-stop, acceleration, and deceleration, protecting surrounding pipelines and vehicle structure.
If this component ages and cracks, common symptoms include idle steering shake, acceleration abnormal noise, and gear shifting hesitation, and it needs to be replaced in time.
The core function of the engine and transmission connection bracket (collectively known as the powertrain suspension system) is to support and fix the powertrain, isolate vibrations and noises, and limit displacement and torque, ensuring smooth driving and component safety. Core function
Supporting and positioning: Supports the weight of the engine and transmission, precisely fixes them on the frame or subframe, maintaining the alignment of the powertrain's spatial position and axis.
Vibration isolation and noise reduction: Absorbs engine idle and operating vibrations through rubber or hydraulic elastic components, blocking the transmission to the vehicle (steering wheel, seats), improving comfort.
Torque control: Limits the intense twisting and front-to-back movement generated by the powertrain during acceleration, deceleration or gear shifting, preventing interference with surrounding components and improving handling response.
Load distribution: Reasonably disperses the gravitational and dynamic impact loads of the powertrain to the vehicle structure, preventing loose connection bolts and deformation of the structure.
Main types and divisions of work
Engine foot gasket (main suspension): Mostly located at the bottom or side below, mainly bearing vertical loads and lateral damping, being the main force for vibration isolation.
Torque bracket (limiting bracket): Mostly located on the side or above, mainly inhibiting lateral oscillation and displacement caused by the engine's rotational torque, playing a "limiting" role.
