What is the rear pressure relief support assembly of the car?

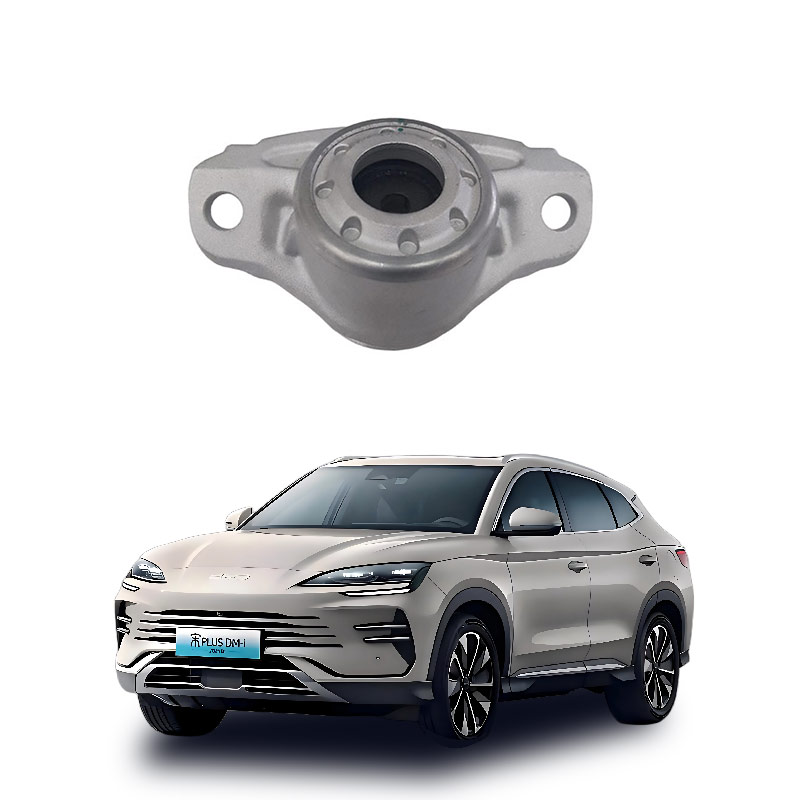

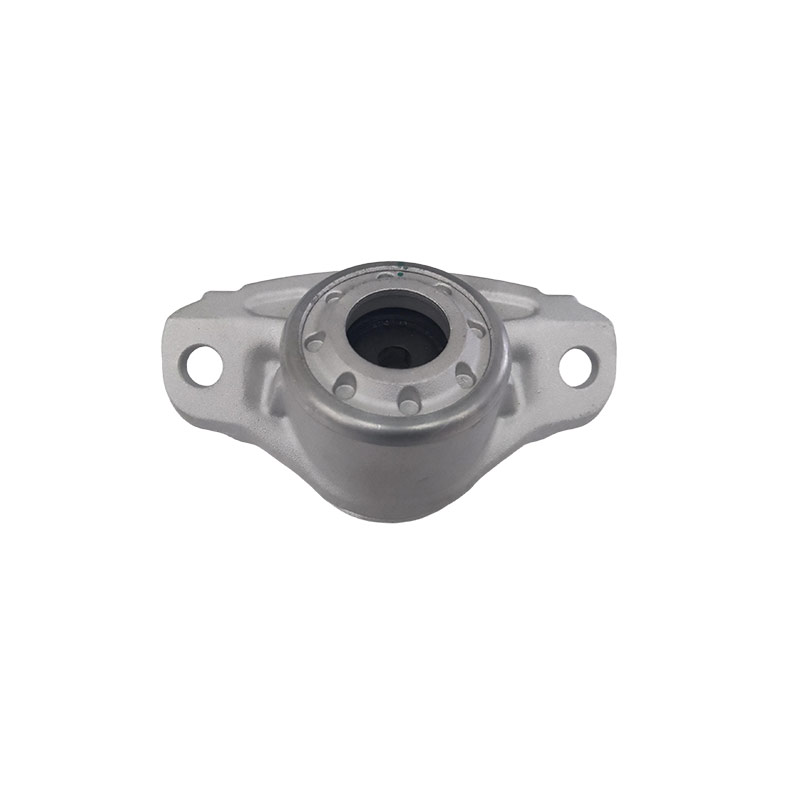

The rear compression upper support assembly is not a standard term. It actually refers to the support component at the top of the rear shock absorber assembly (including the upper seat/cover, bearings, and fixing nuts), which is used to connect the shock absorber pillar to the vehicle body, transfer loads, and attenuate vibration and noise.
Core Definition and Composition
Essentially: The topmost installation and vibration isolation module of the rear suspension shock absorber assembly. In some contexts, "compression" may be a misnomer for "damping/buffeting" function or a marketing term specific to certain manufacturers.
Main Components: Upper support seat (metal housing), rubber shock absorber pad (cover), flat bearing (required for steering models, sometimes simplified for non-steering rear suspensions), tightening nut, and matching washers.
Location: Located at the top of the shock absorber piston rod, directly fixed to the vehicle body fender lining or subframe mounting point.
Core Functionality
Structural Connection: Rigidly connects the shock absorber piston rod to the vehicle body, bearing vertical loads and longitudinal/lateral forces during driving.
Vibration Isolation and Noise Reduction: Absorbs high-frequency vibrations through the rubber element (cover), preventing metal direct contact from causing abnormal sounds, and enhancing comfort.
Relative Motion Guidance: The built-in bearings allow the shock absorber piston rod to undergo slight rotation or angle deflection during compression and rebound, preventing the rod from twisting and damage (required for McPherson front suspension, depending on the structure of the rear suspension).
Limitation Protection: As a buffer stop in extreme compression conditions, preventing hard metal impacts.
Common Faults and Maintenance
Typical Symptoms: Metal impact sound from the rear of the vehicle when crossing bumps, abnormal resonance in the trunk area, and accelerated oil leakage from the shock absorber (due to uneven force distribution).
Replacement Suggestions: This component is usually replaced along with the shock absorber assembly; if damaged alone (such as aging and cracking of the cover), it can be replaced separately but the bearing smoothness needs to be checked.
Note: There is no standard component name "compression upper support assembly" in public materials; it is mostly expressed in colloquial or misinterpreted terms as "rear shock absorber upper support" or "rear shock cover and bearing assembly".
The rear "compression upper support" in automobiles is not a standard term. It actually refers to the upper control arm (upper arm) of the rear suspension working in conjunction with the shock absorber/spring components. Its core function is to limit the wheel movement trajectory, transfer longitudinal/ lateral forces, and assist in attenuating vibrations, rather than being an independent "compression" function.
Core Function Analysis
Geometric Positioning: The upper support arm (upper control arm) connects the vehicle body to the steering knuckle/steering arm, constraining the changes in the camber and caster angles of the wheels, ensuring stable tire contact area during cornering and braking.
Torque Transmission: Transmits and transfers the frontward torque during braking, the rearward force during acceleration, and the lateral centrifugal force during cornering, preventing excessive vehicle body shaking.
Vibration Decoupling: Through the rubber bushing at the arm end, isolates high-frequency road noise and minor vibrations, and cooperates with the shock absorber to suppress spring rebound, enhancing comfort (failure of the bushing can lead to abnormal sounds and control degradation).
Structural Support: In some structures, it directly supports the upper seat or the spiral spring of the shock absorber, sharing the vertical load and maintaining the geometric height of the suspension.
Common Misconceptions Clarification
No Independent "Compression" Function: There is no mechanical component called "compression valve" in the vehicle suspension for this position; "compression" is often a misnomer for the "buffering effect of the bushing" or "damping energy release of the shock absorber".
Not an Engine Component: This component belongs to the chassis suspension system and is completely different from the shock absorption isolation function of the engine foot rubber (powertrain suspension); do not confuse them.
If your vehicle has abnormal sounds in this area, loose when crossing bumps, or abnormal wear of the tires, it usually means that the ball joint of the upper arm is worn or the rubber bushing has cracked, and it is necessary to check and replace in time to restore control safety.
