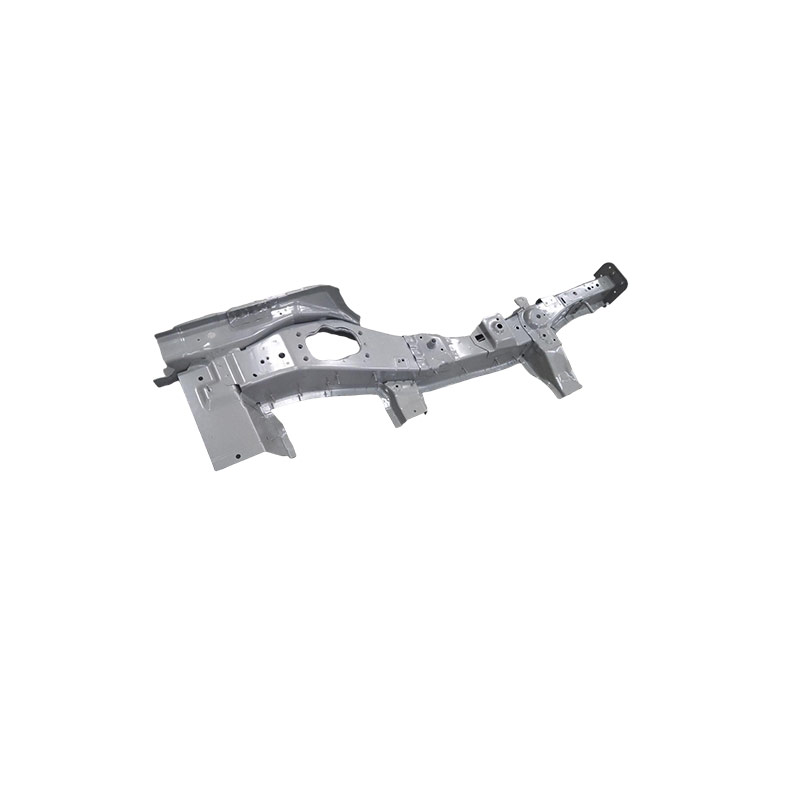

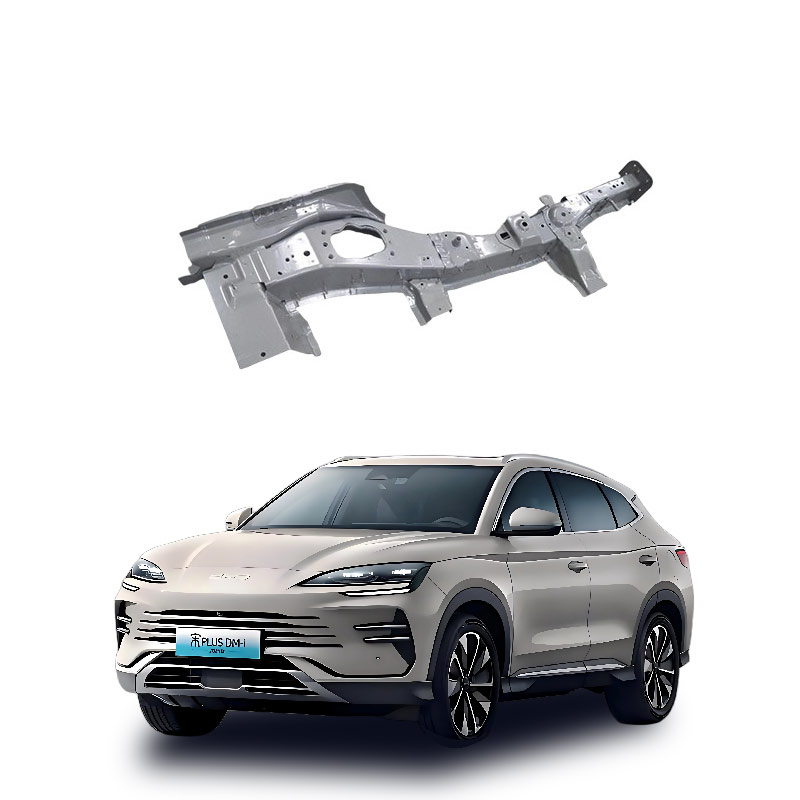

What is the left rear longitudinal beam assembly of the car?
The left rear longitudinal beam assembly of the vehicle is a core load-bearing and energy-absorbing structural component located on the left rear side of the body and beneath the trunk. It is responsible for supporting the rear weight of the vehicle, transmitting loads, and absorbing energy during rear-end collisions to protect the passenger compartment and key components.
Core definition and location
Location: The left rear of the vehicle body, usually beneath the trunk floor plate and in front of the left rear wheel, symmetrically distributed with the right longitudinal beam.
Essence: It is a key longitudinal component of the beam frame or the underbody structure of a body-in-white vehicle, often welded with cross beams to form a rigid frame.
Alternative names: Rear Side Member (left), Floor Side Rail, etc.
Main functions
Load-bearing support: Supports the weight of the rear part of the vehicle, supports the suspension, auxiliary frame, and rear compartment structure, maintaining the torsional stiffness of the vehicle body.
Collision energy absorption: In a rear-end collision, it serves as one of the main force transmission paths, absorbing the impact energy through pre-set crushing deformation to prevent the impact force from directly invading the passenger compartment.
Safety protection: Protects the fuel tank, battery pack (for electric vehicles), and rear passengers' safety, preventing catastrophic collapse of the vehicle structure.
Structure and materials
Form: The cross-section is mostly in a trough shape, box shape, or I-shaped. Some models adopt variable cross-section design to meet the force requirements.
Material: Traditionally, it is mostly high-strength low-alloy steel (such as DP590, etc.). Modern high-end or electric vehicle models often use aluminum alloy integrated die-casting to reduce weight and improve energy absorption efficiency.
Component composition: Besides the main beam, it usually includes energy-absorbing boxes connected to the impact protection beam, suspension mounting nodes, and strengthening plates, etc., which are welded assemblies.
Significance of maintenance and inspection
Accident determination: If this component shows wrinkles, cuts, secondary welding, or asymmetry between left and right, it is the core basis for determining a major accident vehicle.
Maintenance difficulty: Severe damage requires professional beam correction equipment for repair or overall replacement. However, the strength after repair is difficult to fully restore to the original factory level, directly affecting handling safety and four-wheel alignment data.
The left rear longitudinal beam assembly of the vehicle is the core load-bearing structure of the vehicle's rear end, mainly responsible for four functions: supporting the vehicle's load, absorbing energy from rear-end collisions, ensuring the integrity of the passenger compartment, and providing a mounting base for the suspension and components. Core function
Structural Support and Rigidity Maintenance: As a key longitudinal component of the side-ribbed frame or the body structure of a body-in-white vehicle, it forms a rigid frame with the right rear longitudinal beam and crossbeam, supporting the trunk floor, rear suspension system, and some power/battery components, ensuring the vehicle's torsional stiffness and driving stability.
Collision Energy Absorption and Protection: In a rear-end collision, it undergoes controlled crushing deformation within the preset crush zone (often combined with energy absorption boxes), efficiently absorbing and distributing the impact energy, preventing the impact force from directly transmitting to the passenger compartment, and protecting rear passengers and the fuel tank/battery pack safety.
Load Transmission and Distribution: The longitudinal impact forces from the rear wheels, braking inertia forces, and collision impacts are reasonably transferred to other parts of the vehicle, avoiding stress concentration that could lead to structural failure.
Installation Reference Points for Components: Provides precise installation points and fixed supports for key components such as the rear suspension (such as multi-link, torsion beam), spare tire, exhaust system, and fuel tank.
Key Features
Position: Located on the left rear wheel side of the vehicle, beneath the trunk, extending along the vehicle's longitudinal axis.
Material and Process: Mostly uses high-strength low-alloy steel (such as DP590) or aluminum stamping/pressing, balancing lightweighting and impact resistance; severe damage requires professional correction or replacement, and improper repair can significantly reduce safety.
Collaborative Mechanism: Usually works in conjunction with the rear impact beam and energy absorption box, forming a graded energy absorption chain of "impact beam → energy absorption box → longitudinal beam".
