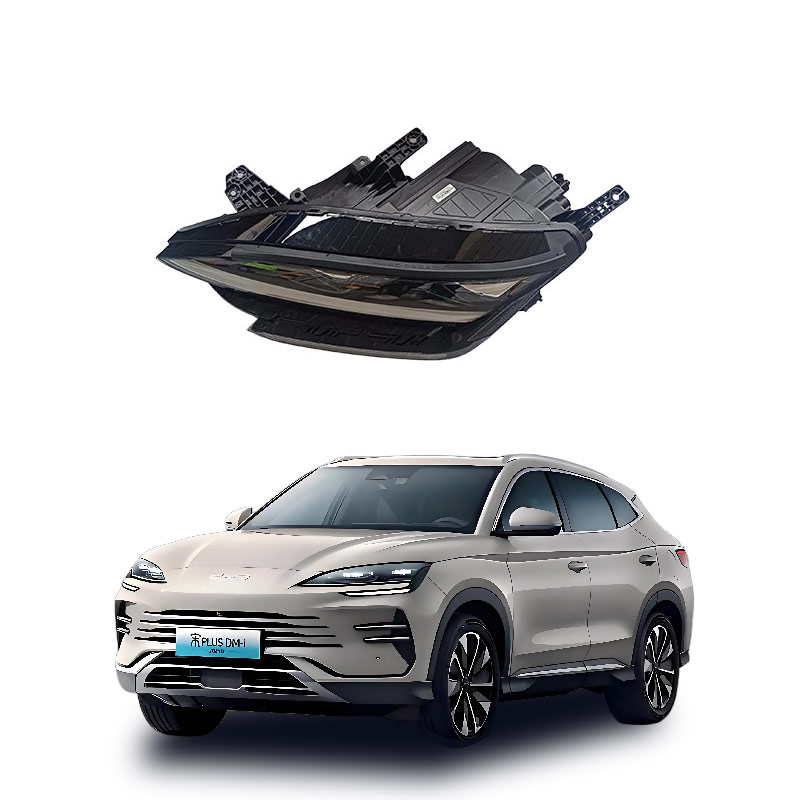

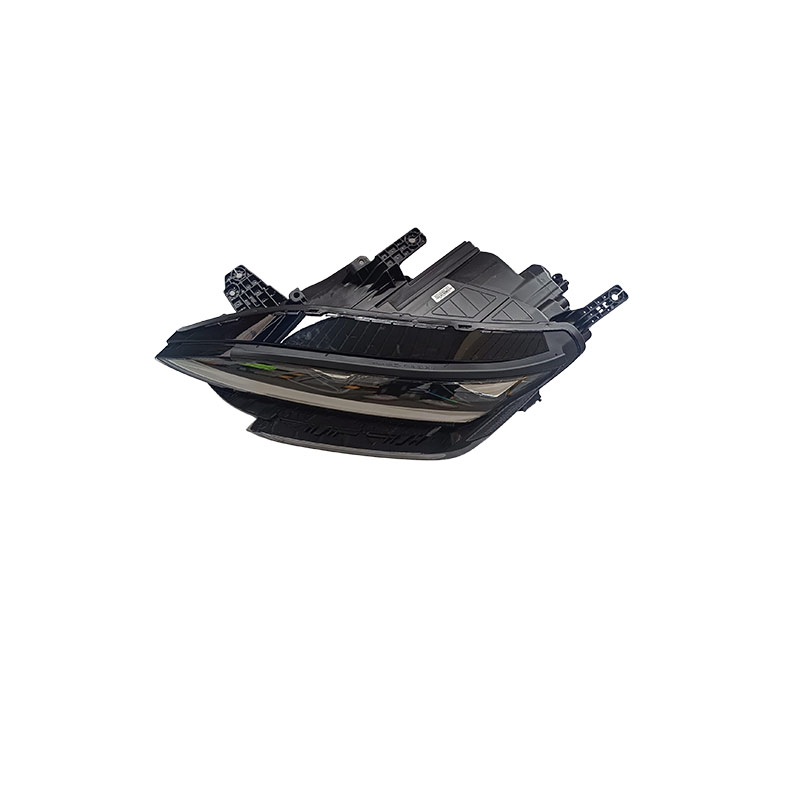

What is the integrated front headlight assembly on the left side of the car?
The integrated front headlight assembly on the left side of the car is an integrated lighting and signaling system installed at the left front end of the vehicle. It encapsulates functions such as high/low beam lights, turn signals, marker lights, and daytime running lights in a single lamp housing, controlled by a unified wiring harness. It offers road lighting, vehicle outline indication, and turn signal warning functions, as well as features for road illumination, vehicle outline marking, and turn signal indication.
Core Definition and Composition
Position Attribute: Specifically refers to the front lighting components on the driver's side (for right-hand drive vehicles, it is the left side), symmetrical to the right side but with internal circuits or lens angles possibly adjusted for left/right traffic regulations.
"Integrated" Meaning: Refers to integrating multiple separate lighting functions (such as near light, far light, turn signal, and outline light) into a single housing assembly, rather than separate and independent installation.
"Assembly" Concept: Includes the lamp housing, lens/reflector, light source (bulb/LED module), lamp holder, wiring interface, and fixing bracket, forming a complete replaceable unit, not a single part.
Main Functions: Nighttime/low-light road illumination (switching between high and low beams), vehicle position and intention indication, flashing signals during turns, and some models integrate curve-assist lighting.
Common Light Source Types and Technical Characteristics
Halogens: Low cost, moderate brightness, high energy consumption, commonly used in entry-level models.
Xenon (HID) lights: High brightness, long lifespan, require a stabilizer, and have a delay in startup.
LED lights: Fast response, low energy consumption, long lifespan, and can achieve matrix intelligent lighting (such as ADB adaptive high beams).
Laser/matrix: High-end configuration, supports dynamic beam shielding and curve lighting.
Maintenance and Replacement Tips
This component is typically replaced as a whole module, involving disassembly of the bumper or inner lining of the wheel arch, disconnecting the wiring harness clips and fixing screws; due to the need for lighting angles and compliance with regulations, it is recommended to have it operated or replaced by professionals or with original factory/authorized assemblies.
Left-side integrated front headlight assembly is a core component of integrated lighting, signaling, and safety protection. Its main function is to provide nighttime/low-light road illumination, indicate vehicle position and intention, and provide front-end protection.
Core Functions
Road Lighting: Provides near light (uniform illumination for 40-60 meters) and far light (with a range of over 100 meters), ensuring clear vision in nighttime or dim conditions.
Signal Indication: Integrates turn signals (indicating turning intentions), marker lights (indicating vehicle width), and daytime running lights (improving daytime visibility), preventing collisions and rear-end accidents.
Special Environment Assistance: Some assemblies include fog lights to utilize strong penetration to deal with low visibility weather conditions.
Intelligent Adaptation: High-end models have AFS/ADB systems, automatically adjusting beam angles and brightness to avoid glare and optimize the illumination range.
Structural Protection: The lamp housing serves as a weather-resistant shell, protecting the internal optical components (bulb, lens, reflector) and wiring from impact, moisture, and dust erosion.
Component Composition
Optical System: High/low beam light sources, lenses/reflection bowls, daytime running light strips.
Signal System: Turn signal module, marker light.
Auxiliary System: Front fog light (depending on configuration), automatic leveling motor.
Support Structure: Lamp housing, mounting bracket, electrical interface wiring.
"Integrated" means integrating the above multiple function modules into a single assembly on the left side, and in case of damage to the housing or internal circuit failure, it is usually necessary to replace the entire assembly rather than repair individual parts.
