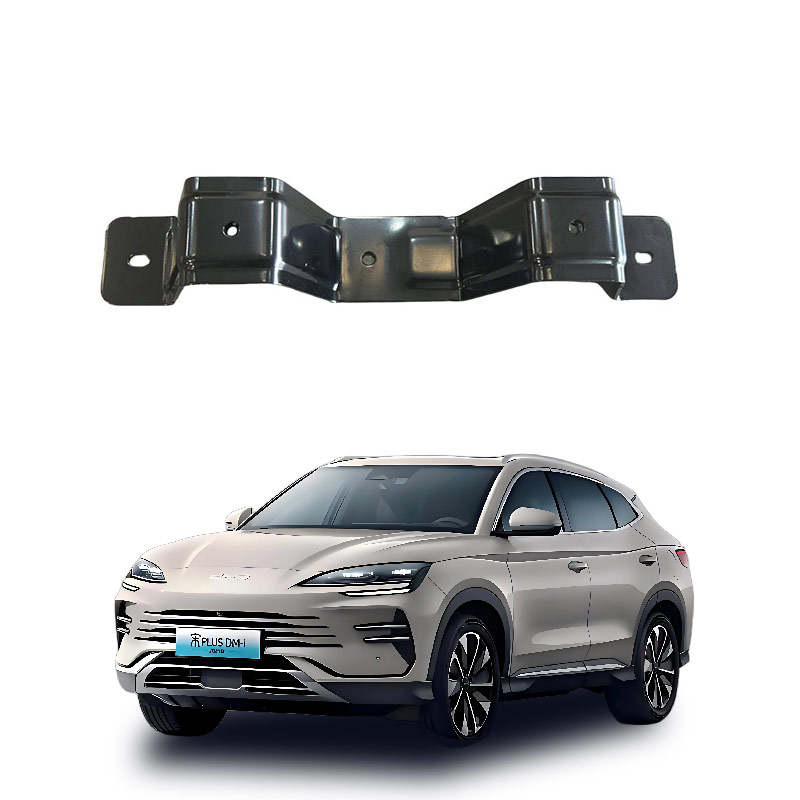

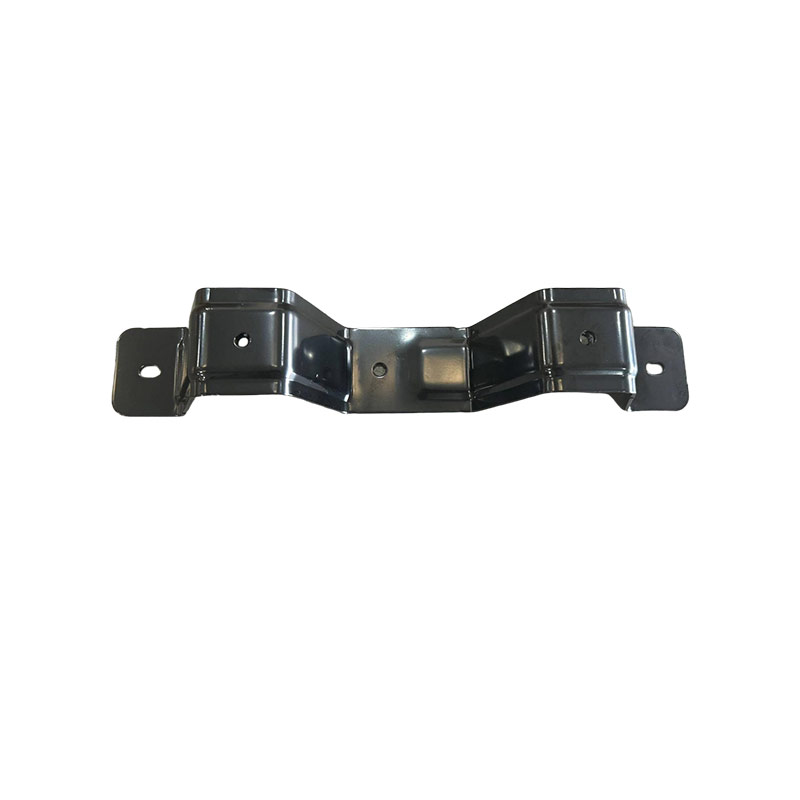

What is the right side bracket assembly of the chassis guard of the vehicle's body department?
The right side bracket assembly of the car chassis fender is a metal or engineering plastic support structure assembly that fixes the right fender (or the inner lining of the wheel housing) to the body/frame of the vehicle. Its core functions are positioning, load-bearing, and vibration-resistant fixation, preventing the fender from falling off or making abnormal sounds.
Core Definition and Function
Essence: Non-load-bearing structural component, serving as the installation base of the external protection system of the chassis, typically made of stamped steel plates, cast iron, or high-strength modified plastics.
Location: Located behind or on the inner side of the right front or rear wheel arch of the vehicle, connecting the vehicle longitudinal beam, fender frame, or bumper crossbeam to the fender body.
Main Functions:
Precise positioning: Ensuring that the fender maintains a safe gap from the tires, avoiding friction with the tires during driving.
Vibration and noise reduction: Absorbing road vibrations through rubber sleeves or its own elasticity to prevent abnormal sounds from being generated from rigid impacts.
Protection and support: Withstanding mud, water impact, and wind resistance loads, protecting the fender from deformation or detachment.
Common Types and Naming Logic
The name of this component varies depending on the vehicle model (passenger car/heavy truck) and installation position (front/rear), and it is not a universal standard part:
By vehicle model classification: Passenger cars often have "clip-type or bolt-type small brackets"; heavy trucks (such as the Sinotruk series) are often called "right fender bracket assembly", with a more robust structure and an independent part number (such as WG1671230856).
By position classification: It is divided into "right front fender bracket" and "right rear fender bracket", and the shapes of the two are usually not interchangeable.
Composition form: It may be a single stamped part, or an assembly component including bolts, sleeves, and reinforcing ribs. Notes for Attention
General model not applicable: This component has a very strong vehicle model specificity. The hole positions and arcs of the brackets for different brands and even different years of the same brand's vehicles are all different. It is necessary to query the matching based on the vehicle frame number (VIN) or the original factory part number.
Fault manifestation: If this component breaks or rusts, it will cause the guard panel to shake, scrape the tires or fall off. It is necessary to replace the entire bracket assembly instead of just repairing the guard panel.
Core function explanation
The core role of the right-side guard panel bracket component is to firmly connect the right-side guard panel to the vehicle/suspension system, ensuring its precise positioning to intercept the splashing from the tires, and at the same time, bearing vibrations and impacts to prevent detachment or abnormal sounds.
Core functions
Fixation and support: As a rigid or semi-rigid connection piece, it securely installs the guard panel on the right-side fender, bumper, or suspension support point, resisting the airflow impact and road vibrations during driving, avoiding loosening and displacement.
Precise positioning: Maintaining the optimal gap between the guard panel and the tires (usually not touching the tires and covering the splashing angle), ensuring effective blocking of mud and debris from splashing onto the right-side chassis components (such as steering tie rod, brake lines, suspension ball joint) and the rear of the vehicle.
Stress buffering: Some designs contain rubber sleeves or elastic structures to absorb high-frequency vibrations, preventing metal fatigue fractures or resonance abnormal sounds, and extending the lifespan of the guard panel and installation points.
Adaptation compensation: For the specific vehicle arc and suspension travel of the right side, it performs geometric matching to eliminate interference, suspension, or protection caused by manufacturing tolerances or chassis deformation.
Failure consequences
If this bracket is damaged or missing， it will cause the guard panel to sag， rub against the tires， or fall off completely， losing the anti-corrosion protection for the right-side chassis components (such as steering tie rod， brake lines， suspension ball joint) and the rear of the vehicle. It will increase the risk of paint scratches and may cause driving abnormal sounds or foreign object entrapment safety hazards.
Note： "right side" only indicates the installation position specificity. Its mechanical principle is the same as the left side； the specific structural form (welded， snap-fit， or adjustable bolt type) should be confirmed according to the corresponding vehicle repair manual.
