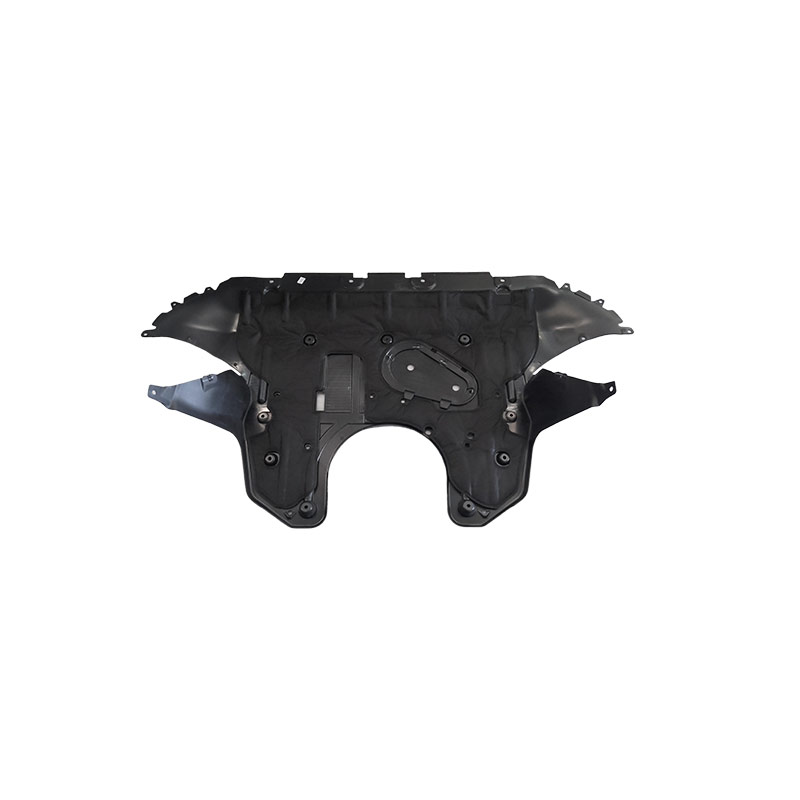

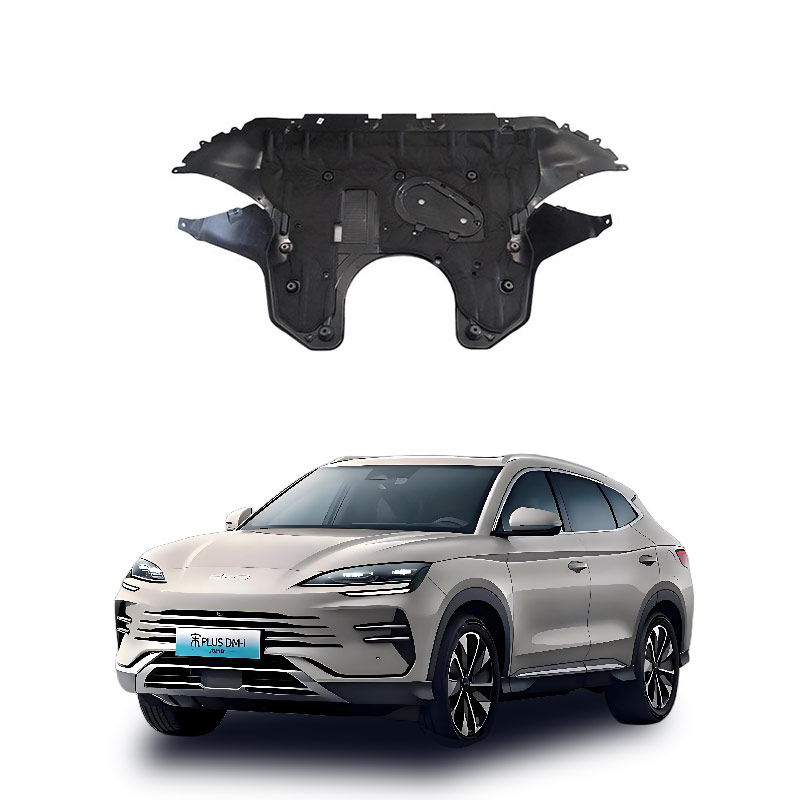

What is the mudguard assembly for the front lower frame of the car?
The front lower frame mudguard assembly is a protective component installed behind the front wheels and connected to the lower structure (such as side skirts/undersides), consisting of the mudguard body and fasteners. Its main function is to prevent the splashing of mud, water, and gravel from the tires from reaching the underside of the vehicle, the chassis, and the engine compartment.
Core Definition and Composition
Essence: It is not a single independent part, but a combination of "mudguard sheet + snap/fastener + mounting bracket", specifically referring to the lower part of the front wheel area and located slightly below.
Position: It is located behind the front wheel arch or at the lower edge, fixed to the front lower skirt (underside) or the lower edge of the bumper, closely following the rearward rotation path of the wheels, typically protruding about 3-5 cm beyond the vehicle's outline.
Material: Mostly made of TPO engineering plastic, rubber, or composite materials, it must have the properties of aging resistance, impact resistance, and certain flexibility to adapt to bumps.
Main Functions
Paint Protection: Preventing the stones, sand, and gravel thrown by the tires during high-speed driving from directly impacting the side and bottom paint surfaces of the vehicle, thus preventing paint chipping and rusting.
Mechanical Protection: Reducing the entry of mud, snow-melting agents, and sewage into the braking system, suspension ball joints, steering rods, and the bottom of the engine, thereby reducing wear and corrosion risks.
Cleaning and Aerodynamics: Maintaining the chassis relatively clean, and some designs also aim to optimize local airflow to reduce the adhesion of mud and water to the vehicle windows, affecting visibility.
Common Misconceptions
This component is different from the front bumper (mainly responsible for collision energy absorption) or the inner lining of the fender (covering the interior of the wheel arch). It specifically refers to the exposed or semi-exposed lower splash guard. If the vehicle is of a sporty or off-road type, this component may be designed as detachable or raised, and the specific structure should refer to the vehicle's maintenance manual.
The core function of the car's front lower frame mudguard assembly (commonly referred to as the front wheel liner/mudguard) is to prevent the splashing of mud, gravel, and water from the tires from reaching the underside of the vehicle, the chassis, and the engine compartment, protecting the vehicle's paint surface, chassis components, and engine compartment from corrosion and physical damage.
Core Functions
Splash Protection: Blocking the high-speed throw of stones, sand, and gravel from the tires towards the vehicle's sides and bottom, preventing paint cracking and damage.
Protecting Chassis Components: Reducing the adhesion of mud and water to the metal parts of the chassis such as the tie rods, ball joints, and the bottom of the engine, delaying rusting and extending the lifespan.
Maintaining Engine Compartment Cleanliness: Preventing large amounts of water and dust from entering the engine area due to road conditions, assisting in maintaining normal heat dissipation and component cleanliness.
Enhancing Safety and Cleanliness: Reducing interference from splashing from rear vehicles, keeping the vehicle and pedestrian clothing clean. Additional Explanation
This component is usually located inside the front fender or behind the rear frame, and is made of engineering plastic or rubber. It has both certain aerodynamic optimization and noise reduction effects. Some sources refer to it as "front fender", but it is strictly different from the "wingspan" structure covering the area above the wheels. If damaged or missing, it can easily cause abnormal noises in the chassis, accelerated rusting, and increased washing frequency.
The main failure manifestations of the front lower frame mudguard component are loosening and detachment, cracking and breaking, or failure of the snap fasteners. The core handling principle is: minor cracks can be repaired, while severe damage or detachment must be replaced to prevent erosion of the chassis by mud and sand and increase wind resistance.
Fault manifestations and causes
Loosening/Detachment: Loose screws, broken snap fasteners, incorrect installation position, or long-term vibration;
Cracking/Breaking: Aging and brittle material, stone impact, scraping against obstacles, or low-temperature brittleness;
Functional failure: Accumulation of mud on the chassis after damage, increased abnormal noises, and increased wind resistance leading to a slight increase in fuel consumption.
Diagnosis and handling plan
Check steps: Squat down and observe the plastic plate behind the front wheel and below the bumper to confirm if there are large cracks, missing parts, rattling or abnormal sounds during driving;
Minor damage (<3cm fine lines and not loose): Clean and repair with a plastic welding gun or special adhesive, no replacement required;
Severe damage (large-scale cracking, holes, complete failure of snap fasteners or detachment): Directly replace with a new component, do not attempt to bond勉强；
Part confirmation： Need to match the vehicle's front wheel inner liner / front lower guard plate specific parts (not ordinary rear mudguard cover)， mostly made of engineering plastic or rubber composite materials.
Risk warning
If not handled in time， flying stones will damage the car paint， corrode the chassis metal parts and wiring， and long-term accumulation of mud may affect the heat dissipation and lifespan of components such as the steering knuckle； Damaged parts may completely detach during high-speed driving， posing a safety hazard of hitting the vehicle or getting caught in the chassis.
It is recommended to go to the repair shop as soon as possible to check the fixation points. If the snap fastener seat is damaged， it is necessary to repair and reinstall the base simultaneously to ensure the new part is firmly fastened.
