What is the rear stabilizer bar assembly of a car?

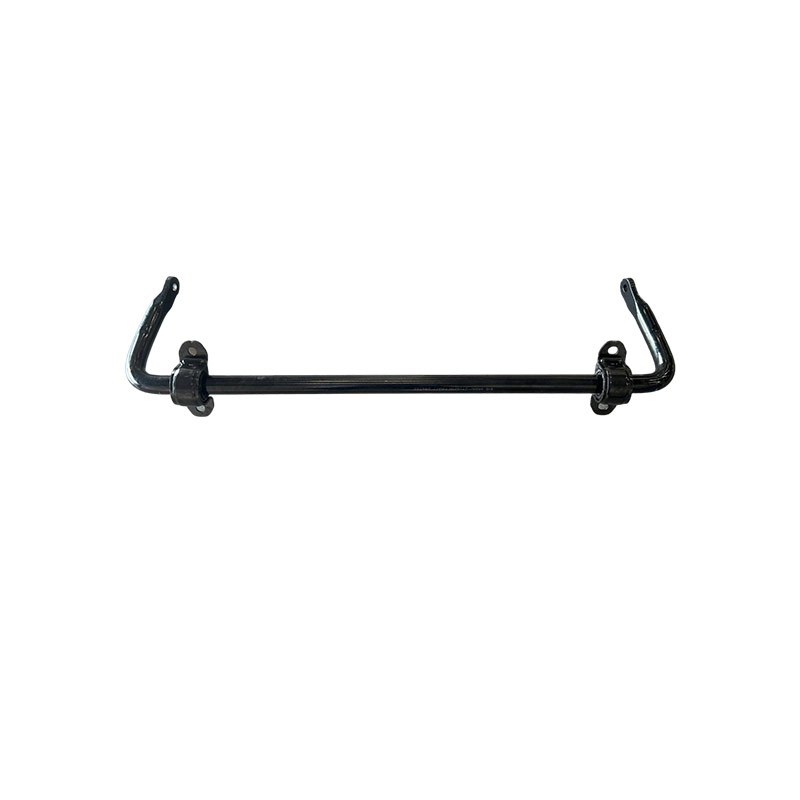

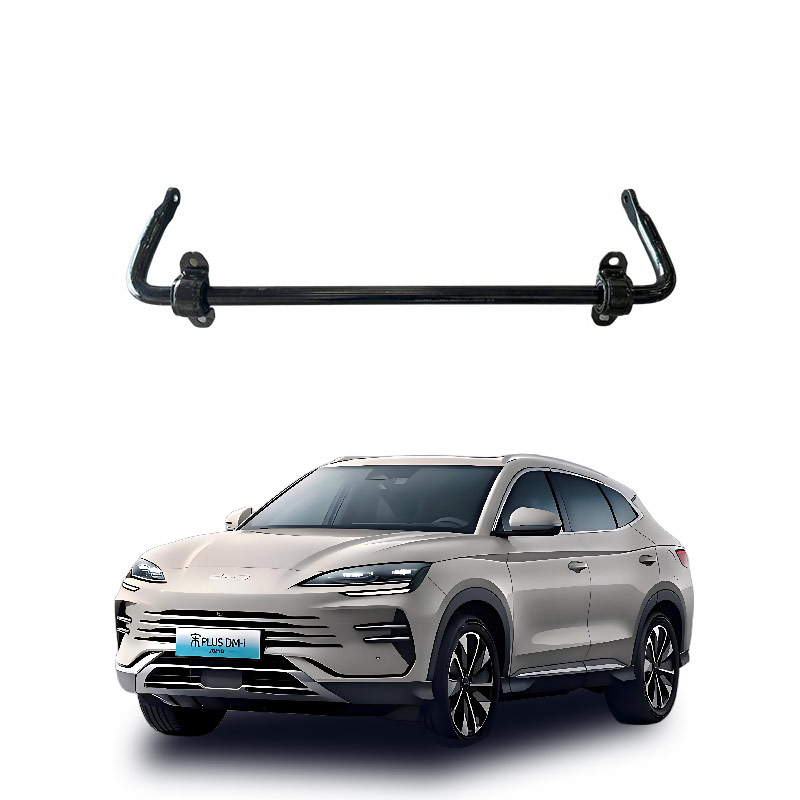

The rear suspension stabilizer bar assembly is a lateral torsion bar mechanism in the suspension system used to suppress side roll during cornering and balance the movement of the left and right wheels. It is composed of the stabilizer bar body, connecting rod (small link), rubber bushing, and fixed bracket.
Core definition and composition
Essentially: Also known as "rear anti-roll bar" or "rear lateral stabilizer bar", it is a spring steel torsion bar placed horizontally between the rear axles and the suspension, in a "U" shape or approximately arc-like.
Main components:
Bar body: Made of high-strength spring steel, the middle part is hinged to the frame through a bushing, and the ends are connected to the suspension arm.
Connecting rod: Connects the ball joint pin to the end of the stabilizer bar and the lower control arm to transfer torsional force.
Bushing and bracket: Rubber material bushings reduce friction and buffer vibrations, and the fixed bracket ensures precise installation position.
Working logic: When driving in a straight line, the left and right wheels move synchronously, and the bar body does not twist (does not intervene); during cornering or single-side bumps, the height difference between the left and right wheels forces the bar body to twist, generating an opposing torque to hold the depressed suspension, thereby resisting the vehicle's side roll.
Core function and role
Suppressing side roll: During cornering, the vehicle generates centrifugal force, causing the outer suspension to compress and the inner suspension to stretch. The stabilizer bar, due to the height difference between the two ends, undergoes torsional deformation, generating an opposing torque to hold the outer side and support the inner side, significantly reducing the vehicle's tilt angle (can reduce 20%-30%).
Adjusting steering characteristics: By changing the lateral stiffness of the rear axle, it affects the ratio of lateral resistance between the front and rear axles; hardening the stabilizer bar can alleviate steering deficiency (pushing forward), and softening it can help improve excessive steering (swerving), which is particularly crucial for rear-wheel drive and performance cars.
Balancing left and right wheels: It exerts force only when the left and right suspensions have relative motion (such as single-side crossing or continuous bumps), coordinating the extension and contraction of both sides to reduce the lateral shaking of the vehicle body, and does not interfere with the shock absorption comfort during straight-line driving.
Fault characteristics and precautions
Common failures: Aging and cracking of the rubber bushing (causing "creaking" noise), loose ball joint pins or deformation of the bar body.
Abnormal manifestations: Significantly increased side roll during cornering, slow vehicle return to straight line during lane change, looseness or abnormal noise of the rear axle during bumpy roads.
Installation conditions: Most independent suspension models are equipped with it, and some tie-rod suspension models (such as European cars) also have it; very few high-end electronically controlled active suspension systems may eliminate the physical rods.
Core function of the rear suspension stabilizer (rear anti-roll bar) is to suppress excessive side roll during cornering, optimize steering characteristics (reduce the risk of push-forward or excessive swerving), and balance the forces on the left and right wheels in non-independent motion conditions, thereby improving handling stability and safety.
Core function mechanism
Suppressing side roll: When the vehicle corners, the centrifugal force causes the outer suspension to compress and the inner suspension to stretch. The stabilizer bar, due to the height difference between the two ends, undergoes torsional deformation, generating an opposing torque to hold the outer side and support the inner side, significantly reducing the vehicle's tilt angle (can reduce 20%-30%).
Adjusting steering characteristics: By changing the lateral stiffness of the rear axle, it affects the ratio of lateral resistance between the front and rear axles; hardening the stabilizer bar can alleviate steering deficiency (pushing forward), and softening it can help improve excessive steering (swerving), which is particularly crucial for rear-wheel drive and performance cars.
Balancing left and right wheels: It exerts force only when the left and right suspensions have relative motion (such as single-side crossing or continuous bumps), coordinating the extension and contraction of both sides to reduce the lateral shaking of the vehicle body, and does not interfere with the shock absorption comfort during straight-line driving.
Component composition and working principle
Structural composition: Usually consists of a U-shaped elastic metal bar body, connecting rods (small link) at both ends, and a rubber bushing to fix the vehicle body, spanning and connecting the left and right rear suspensions.
Trigger conditions: It works only when the left and right wheels move inconsistently (during cornering, single-side bumps); if they move synchronously up and down (such as passing over )， the bar body does not twist and does not function.
Mechanical principle： Utilizing the torsional stiffness of the spring steel material， it transfers the force of one suspension to the other， increasing the angular stiffness of the suspension and preventing the vehicle body from "swaying like a boat". The effects of absence or failure
Steering decline: The side-slip during cornering becomes significantly more severe, and the vehicle takes longer to return to its original position when changing lanes at high speed, increasing the risk of skidding or losing control of the direction.
Reduced comfort: The lateral sway on bumpy roads becomes more pronounced, and passengers are more prone to getting motion sickness.
Safety risks: In extreme cases (such as emergency avoidance on slippery roads), a significant side-slip may increase the probability of a rollover; faults often manifest as abnormal noises when crossing obstacles (due to worn bushings) or broken connecting rods.
