What is the rear suspension lower arm assembly of a car?
The rear suspension lower arm assembly is the core load-bearing and guiding component in the rear suspension system that connects the wheel steering joint to the vehicle body (or sub-frame). It is typically composed of a metal arm body, rubber bushings, and ball joints, and is responsible for constraining the wheel's movement trajectory, transmitting road shock forces, and maintaining positioning parameters.
Core Definition and Composition
Essentially: Also known as "rear lower arm" or "rear lower control arm", it is a key lever component in independent or non-independent rear suspensions, serving as a mechanical bridge between the wheel and the vehicle body.

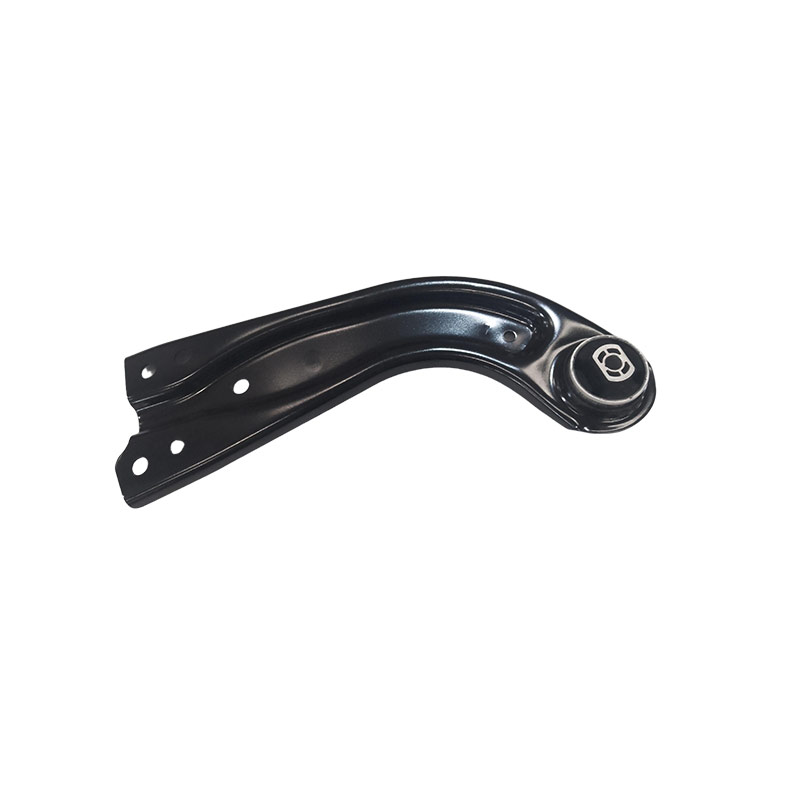

Composition: Arm body (high-strength steel or aluminum alloy), bushing (for connecting the vehicle body to absorb vibrations), ball joint (for connecting the steering joint and allowing rotation). If the arm body is deformed during maintenance, the "assembly" needs to be replaced; only the bushing or ball joint aging can be replaced individually.
Location: Located on both sides of the vehicle's rear axle, one end is fixed to the sub-frame or vehicle body, and the other end is hinged to the rear wheel steering joint (spoke) through the ball joint.
Main Functions
Load-bearing support: Supports the vehicle weight and vertical road impact loads.
Guidance and constraint: Limits the wheel's only up-and-down movement, prevents abnormal lateral or longitudinal displacement, and ensures a stable driving trajectory.
Positioning maintenance: Collaborates with other connecting rods to maintain the positioning parameters of the rear wheels, such as camber and toe, to avoid tire wear.
Vibration absorption and buffering: Absorbs high-frequency vibrations through the bushing and ball joint structure, improving ride comfort and isolating noise.
Fault Symptoms and Replacement Suggestions
Typical Symptoms: Abnormal "clunking" sound when passing over potholes, steering wheel shaking at high speeds, vehicle veering, and abnormal tire wear on the rear wheels.
Life Expectancy Reference: Generally, it is recommended to check after 8-12 thousand kilometers. If the rubber bushing ages and cracks or the ball joint is loose (with a gap > 0.5mm), it needs to be addressed.
Maintenance Principles: The arm body bending or cracking must be replaced with the "assembly"; only the bushing or ball joint damage can be replaced individually; after replacement, a four-wheel alignment must be performed, and it is recommended to replace them in pairs on the same side to ensure balance.
Different vehicle models (such as multi-link, double wishbone, E-arm, etc.) have significant structural differences. This component cannot be used interchangeably. When purchasing, it is necessary to strictly match the vehicle model year and suspension type.
The rear suspension lower arm assembly connects the wheel to the vehicle body/sub-frame and is a core guiding and load-bearing component, primarily responsible for four functions: supporting the vehicle weight, transmitting longitudinal/sideways forces, constraining the wheel's movement trajectory to maintain positioning parameters, and coordinating with the spring shock absorber for vibration absorption.
Core Function
Load-bearing and force transmission: Supports the vehicle weight and effectively transmits longitudinal forces from braking, lateral forces from turning, and road impact to the sub-frame, distributing the load.
Precise guidance: Through geometric structure, limits the up-and-down movement of the rear wheel, dynamically maintains positioning parameters such as camber, and ensures stable tire contact area, improving grip and handling stability.
Buffer and vibration absorption: Utilizes the rubber bushing and ball joint structure to absorb high-frequency vibrations, isolating the transmission of road bumps to the vehicle body, and ensuring ride comfort.
Safety redundancy: In extreme impacts or low-speed collisions, it absorbs energy through deformation to prevent instantaneous suspension geometric failure and prevent loss of control.
