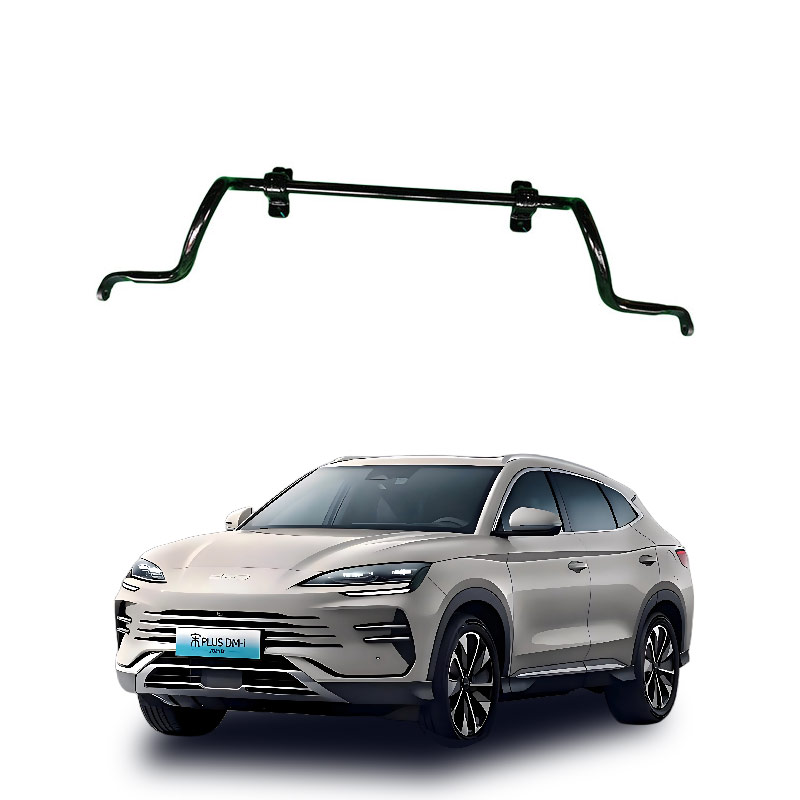

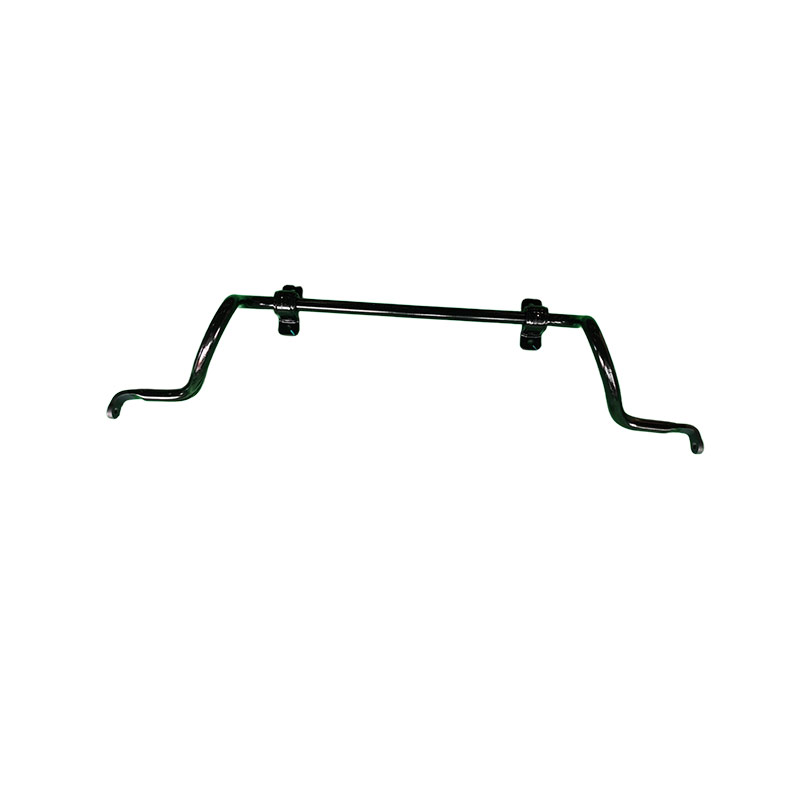

What is the front stabilizer bar assembly of a car?
The front suspension control arm assembly is a lateral torsion spring assembly used in the suspension system to suppress the side-sway during cornering. It consists of a stabilizer bar body, connecting rods (ball joints), rubber bushings, and fixed brackets. Its core function is to balance the forces on the left and right wheels through torsional elasticity, thereby enhancing handling stability and safety.
Core Definition and Function
Essence: A U-shaped metal torsion bar arranged laterally on both sides of the front axle, it is an auxiliary elastic element that only operates when the vehicle body experiences side-sway (unequal deformation of the left and right suspension).
Main Function: To resist the vehicle body tilt caused by centrifugal force during cornering or lane changing, reducing the risk of rollover, and enhancing tire grip and steering accuracy; it does not intervene in straight and flat road driving or single-side bumps, preserving the independence of the suspension.
Alias: Anti-roll bar, anti-sideslip bar, balance bar, lateral stabilizer bar (Stabilizer Bar / Anti-Roll Bar).
Component Composition and Structure
Stabilizer bar body: Usually made of spring steel (such as 60Si2MnA) or lightweight alloy, providing torsional elasticity.
Connecting rod (stabilizer bar link / ball joint): A rod with ball joints at both ends, transmitting the rod force to the left and right lower control arms or shock absorber brackets, allowing for angle changes during the suspension's up-and-down movement.
Rubber bushings and brackets: The middle part is fixed to the subframe through the bushing, allowing the bar body to rotate relatively and buffering vibrations to prevent metal noise.
Fixed clamps/trucks: Lock the position of the bushing to ensure a stable connection between the bar body and the frame. Working principle
Non-operational state: When the vehicle is traveling in a straight line or on a flat surface, the left and right wheels move up and down synchronously, and the lever body does not twist, thus no force is generated.
Operational state: When turning or making an emergency lane change, the outer wheel compresses and the inner wheel stretches, causing the lever body to undergo torsional deformation. A reverse torque is generated, pressing the inner wheel downward and lifting the outer wheel upward, thereby counteracting the vehicle's side roll.
Common faults and maintenance
Typical symptoms: Creaking noise when passing over a (the bushing is aging)； excessive side roll during turning； steering drift (connecting rod deformation).
Key component lifespan： Rubber bushings are prone to aging and cracking (usually 3-5 years)； the dust cover of the ball joint becomes damaged， leading to increased wear and tear.
Maintenance tip： Replacing the rubber bushing or the connecting rod individually is less costly. If the lever body is deformed， the entire assembly needs to be replaced； always check this component after a chassis collision.
The core function of the front suspension stabilizer bar assembly is to suppress the vehicle's side roll during turning and lane changing， improving handling stability and driving safety. It only works when the left and right suspension movements are not consistent. Core function
Reduce roll: When the vehicle is cornering or making an emergency lane change, the lever twists to generate an opposing torque, counteracting the body tilt caused by centrifugal force, significantly reducing the risk of rollover.
Enhance handling response: Reduce the amplitude of body sway, shorten the time for lane change correction, and make the steering more precise and the vehicle's nose direction more clear.
Balance left and right forces: When a single wheel is under pressure or the road surface is uneven, coordinate the deformation of the suspensions on both sides to maintain the contact area of the tires and reduce abnormal wear. Working principle
Straight-line driving / Parallel oscillation: When the left and right suspensions compress or rebound simultaneously, the stabilizer bar does not twist and does not generate force.
Swaying condition: When turning, the outer suspension compresses and the inner one stretches. The stabilizer bar is twisted and deformed, generating reverse elastic force to hold the outer side and support the inner side, forcing the vehicle body to remain level.
Failure consequences: If the components (gaskets, connecting rods) age and break, it will cause a significant increase in side sway on the over-curved side, loss of control at high speeds, abnormal noises from the chassis, and uneven wear of the tires.
Key components and characteristics
Structure: Usually consists of a U-shaped metal rod (spring steel or hollow tube), connecting rods at both ends (suspension arms) and fixed bushings.
Characteristics: It belongs to a "transverse torsion bar spring", with hardness mainly depending on the diameter of the rod; if it is too thick, it will sacrifice the independence of the single-side suspension and transfer the bumps to the opposite side.
Position: Installed laterally between the front suspension control arm and the frame, specifically responsible for resisting side sway of the front axle.
