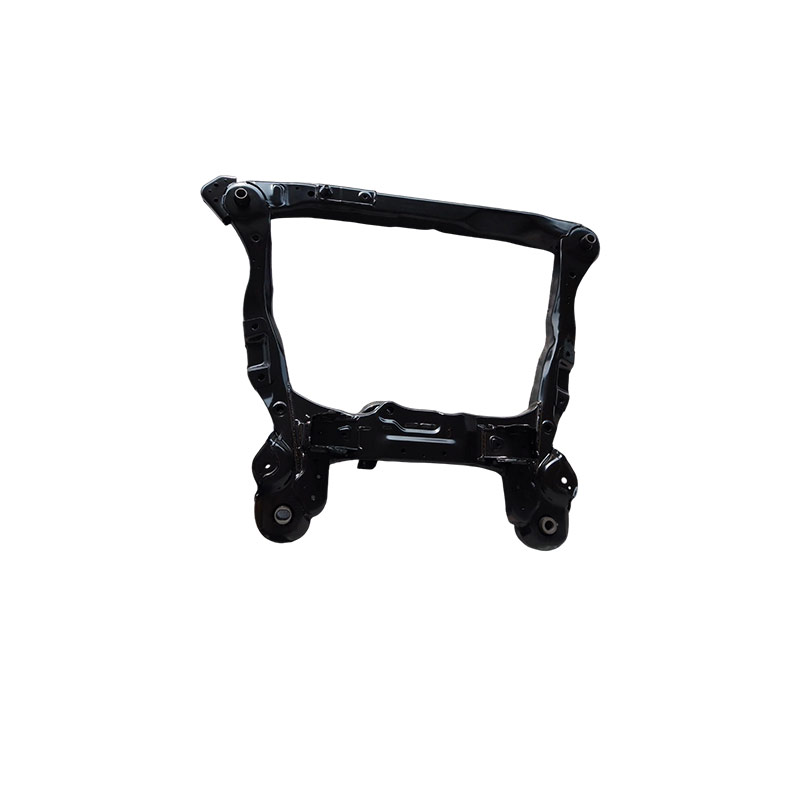

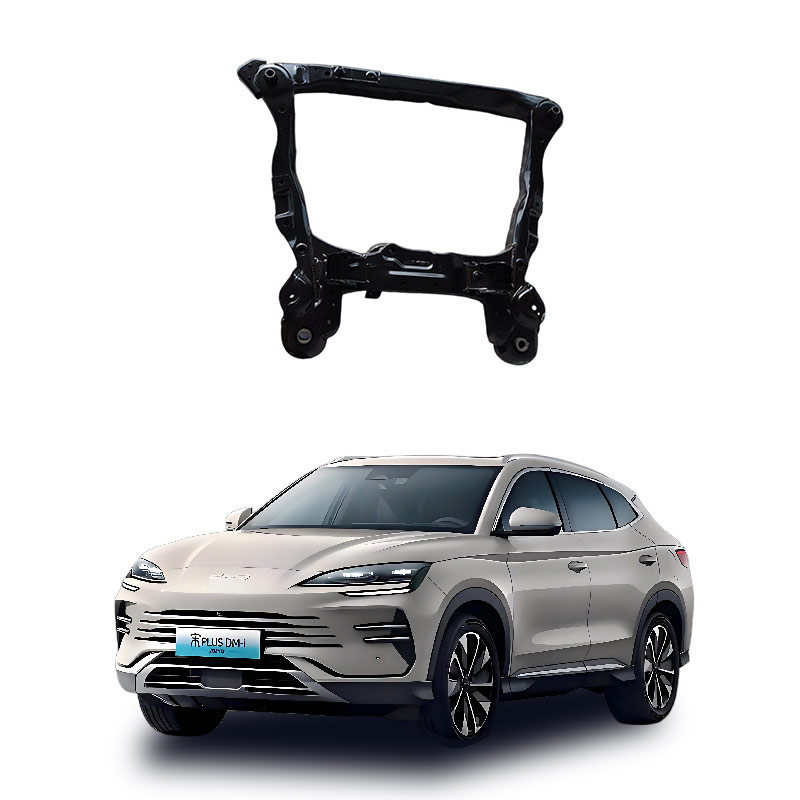

What is the front sub-frame assembly of the car?
The front subframe assembly of the vehicle (commonly known as the front subframe or front chassis frame, depending on the specific structure) is an independent load-bearing bracket located beneath the front chassis of the vehicle. It is used to connect the engine/transmission, front suspension, and steering system to the main body of the vehicle. Its core function is to support the powertrain, absorb road shocks, and isolate vibration and noise.
Core Definition and Alternate Names
Professional Name: Front Subframe (also known as "subframe" in engineering terminology).
Commonly Used Alias: It is often mistakenly referred to as "chassis frame" or "cooling system frame", but strictly speaking, "chassis frame" usually refers to the upper front frame where the radiator and headlights are installed, while "subframe" is the lower chassis structure that supports the suspension and powertrain; some models have both components integrated, while others are separate.
Existence Form: It is only present in vehicle bodies with a load-bearing structure (off-road vehicles without a load-bearing structure usually do not have this independent component). Main function
Support and fixation: As the installation base for the engine, gearbox, front axle and suspension system, it maintains the precise relative positions of each component.
Vibration isolation and noise reduction: Connected to the vehicle body through rubber bushings, it blocks the direct transmission of road vibrations and noise into the cabin, enhancing comfort.
Collision energy absorption: In a frontal collision, it undergoes controlled deformation to absorb impact energy, protecting the passenger compartment and key power components.
Enhanced rigidity: It strengthens the torsional stiffness of the front chassis and optimizes handling stability.
Structure and Materials
Position: Below the engine compartment, the vehicle needs to be lifted from the chassis for observation, located between the front wheel suspension and the bottom of the engine.
Material: Commonly high-strength steel, while luxury or performance models often use aluminum to reduce the unsprung mass.
Connection method: Connected to the main body of the vehicle through high-strength bolts and rubber hydraulic bushings, and some structures are welded as a single unit. Notes for Attention
If there is a severe collision at the front part, this component is prone to bending or fracture deformation. In the assessment of used cars, whether there are cuts, welding marks or correction marks is one of the key structural component indicators for determining an "accident vehicle" (according to the "Technical Specifications for Passenger Vehicle Appraisal and Evaluation").
The front sub-frame of the car (commonly known as the "front sub-frame" or often mistakenly referred to as the "chassis frame/water tank frame") is the key load-bearing structure that connects the body and the front axle assembly. Its core function is to support the power and driving systems, transfer forces, absorb impacts and prevent collisions, and maintain geometric positioning.
Core Function
Support and Fixing Components: It bears and rigidly fixes the engine, transmission (front-wheel drive/four-wheel drive), front suspension (McPherson/double wishbone etc.), steering gear and braking components, ensuring the precise relative positions of each component and avoiding driving interference.
Load Transmission and Buffering: It effectively transmits road impacts, braking reaction forces, acceleration traction forces and steering torque from the wheels/suspension to the main body of the vehicle, and filters high-frequency vibrations through its own elastic deformation to improve ride comfort.
Collision Absorption and Protection: In a frontal collision, it serves as the first structural line of defense, absorbing impact energy through the preset crush zone, distributing the load to the frame/body, and preventing the powertrain from moving backward and invading the passenger compartment.
Maintaining Geometric Stability: It locks the front wheel positioning parameters (such as camber, kingpin inclination angle), preventing suspension geometric deviations caused by bumps, and ensuring handling stability.
Key Difference Indicators
Terminology Clarification: The strictly defined "sub-frame (Subframe)" is the metal load-bearing base for the suspension and engine; while the term "chassis frame" commonly used in the public is mostly the "water tank frame", which mainly fixes the radiator, headlights and grille, and is a plastic part that is not the main load-bearing structure. The two cannot be completely equivalent.
Safety Significance: If the front sub-frame undergoes severe deformation or welding fracture, it will directly lead to the failure of four-wheel alignment, abnormal noises and safety hazards, and is one of the key bases for determining a major accident vehicle.
