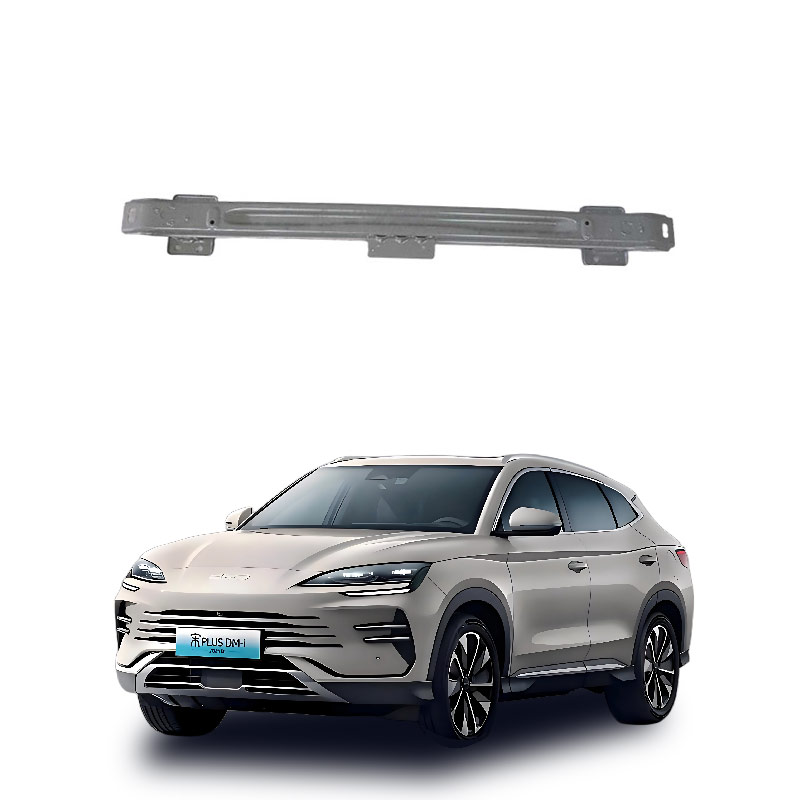

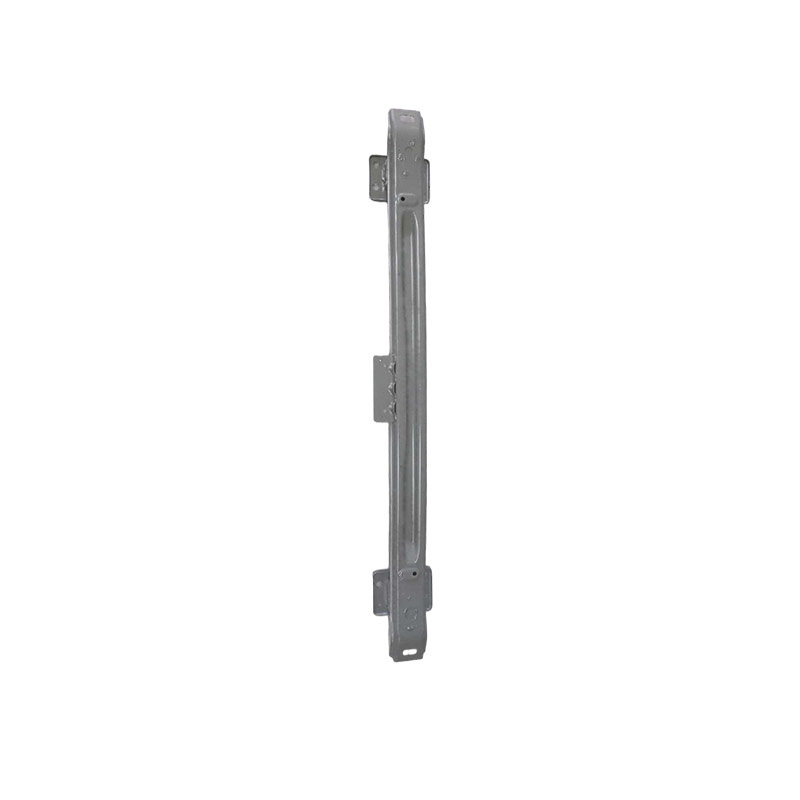

What is the rear impact beam assembly of a car?
The rear impact beam assembly of a vehicle is a passive safety structure component located on the inner side of the rear bumper. It consists of a main beam, an energy absorption box, and installation and connection components. Its core function is to absorb impact energy during low-speed rear-end collisions and protect the vehicle's longitudinal beams and the passenger compartment safety.
Core Components and Functions
Main Beam: A transverse metal beam (steel or aluminum), responsible for resisting impacts and distributing the impact force to the vehicle's sides;
Energy Absorption Box: A collapsible structure connecting the main beam to the vehicle's longitudinal beams, with crush-inducing grooves, which absorbs the main energy through controlled deformation during a collision;
Installation Plate/Connection Components: Fixed to the vehicle's longitudinal beams through welding or bolts to ensure an effective force transmission path.
Main Functions: Reduces bumper, tail light, and rear panel damage during low-speed collisions (typically <30 km/h), reducing maintenance costs; assists in force transmission during high-speed collisions to prevent severe structural collapse and intrusion into the passenger compartment.
Material and Configuration Status
Common Materials: High-strength steel (single-layer stamping or double-layer rolling), aluminum (for high-end lightweight models); some low-cost models may use foam or plastic instead, significantly reducing the protective effect;
Regulations and Configuration: The Chinese national standard does not mandate the standard installation of rear impact beams, but C-NCAP and other evaluation systems have included rear-end collision tests, prompting most mainstream models to be equipped with metal beam structures.
The core function of this component is to absorb energy during low-speed collisions and transfer force during high-speed collisions, absorbing impact and guiding force to the vehicle's longitudinal beams to protect the integrity of the passenger compartment.
Core Function Mechanism
Low-speed Collision (typically <30 km/h): The impact beam and energy absorption box undergo preset collapse deformation, absorbing most kinetic energy, preventing the impact force from directly acting on vulnerable components such as the rear panel and tailgate, significantly reducing maintenance costs (up to 70% or more).
High-speed Collision: As a force transmission channel, it disperses and transfers the concentrated impact force to the high-strength longitudinal beams on both sides, coordinating with the passenger compartment to resist deformation, providing time for the safety system to activate and preventing the passenger compartment from invading the space that could endanger the survival.
Structural Protection: Prevents local severe collapse caused by a single impact point, achieving "one point of force, overall sharing", protecting the trunk, spare tire bracket, and rear pipeline equipment.
Component Composition and Collaboration
Main Beam: Made of high-strength steel or aluminum, responsible for bearing and transmitting the main impact force.
Energy Absorption Box: A low yield strength component connecting the main beam to the longitudinal beams, prioritizing collapse deformation to consume energy.
Installation Connection Components: Fixed to the longitudinal beams through bolts or welding to ensure an effective force transmission path.
It should be noted that the rear impact beam is a passive safety component, mainly optimizing maintenance economy and assisting in high-speed safety. It cannot independently withstand extremely high kinetic impacts (such as a large truck rear-end collision at high speed). Its effectiveness depends on the overall structural match with the vehicle's longitudinal beams. Some models may use foam filling or be reduced in configuration due to cost considerations, which will weaken the above functions.
A rear impact beam failure refers to the deformation, crack, fracture, or connection failure of this structural component, which will directly result in the loss of low-speed collision protection capability and increase the risk of occupants being injured and the longitudinal beams being damaged in a rear-end collision accident. It requires immediate parking and professional inspection.
Core Fault Manifestations and Causes
Appearance Abnormalities: Vehicle tail depression, coating peeling, visible cracks or rust holes (common in long-term humid environments or cases where previous collisions were not fully repaired).
Structural Noise/Looseness: Metal friction sounds during driving, loose closure of the trunk lid, mostly due to beam deformation causing misalignment of the installation position or bolt loosening. Function-related failure: Reverse radar false alarm/failure (sensor bracket deformation interfering), abnormal collapse of energy absorption box.
Main causes: High-speed/low-speed rear-end collision (most common), side impact transmission force, material fatigue and aging, welding quality defects or improper repair/installation.
Handling principles and decision criteria:
Minor deformation (no cracks, not affecting installation points): Can be repaired by professional technicians through cold correction, but the strength must be re-tested. Violent knocking is strictly prohibited as it can cause metal fatigue.
Severe deformation, fracture or collapse of energy absorption box: Must be replaced as a whole. Repair cannot restore its energy absorption function. Forced use poses safety risks.
Rust perforation or loose/broken connecting bolts: Replace the component directly to ensure rigidity with the frame.
Attention to accident definition: Replacing the impact beam usually does not be regarded as a "major accident vehicle", but if it affects the rear panel (side structure of the C-pillar) the nature changes, and the rear panel needs to be inspected for cutting and welding. Emergency Advice
Act Immediately: If you notice any suspected faults (such as abnormal noises or visible damage), do not continue driving at high speed or for long distances. This will prevent you from losing protection in a secondary collision.
Professional Inspection: Go to a 4S store or a reputable repair shop. Request to lift the vehicle to inspect the underside of the frame, the energy absorption box, and the rear panel. If necessary, use a paint film tester or an endoscope to check for hidden damages.
Insurance and Claims: If it is caused by an accident, preserve the scene evidence. If you suspect a quality issue (natural cracking without a history of impact), contact the manufacturer for a claim.
The anti-collision beam is a key component for passive safety. It cannot be solved by "making do". Its failure means that the integrity of the vehicle's rear structure has been compromised. It is essential to repair or replace it according to the standard procedures.
