What is the mounting bracket installed on the right side of the front module of the car?

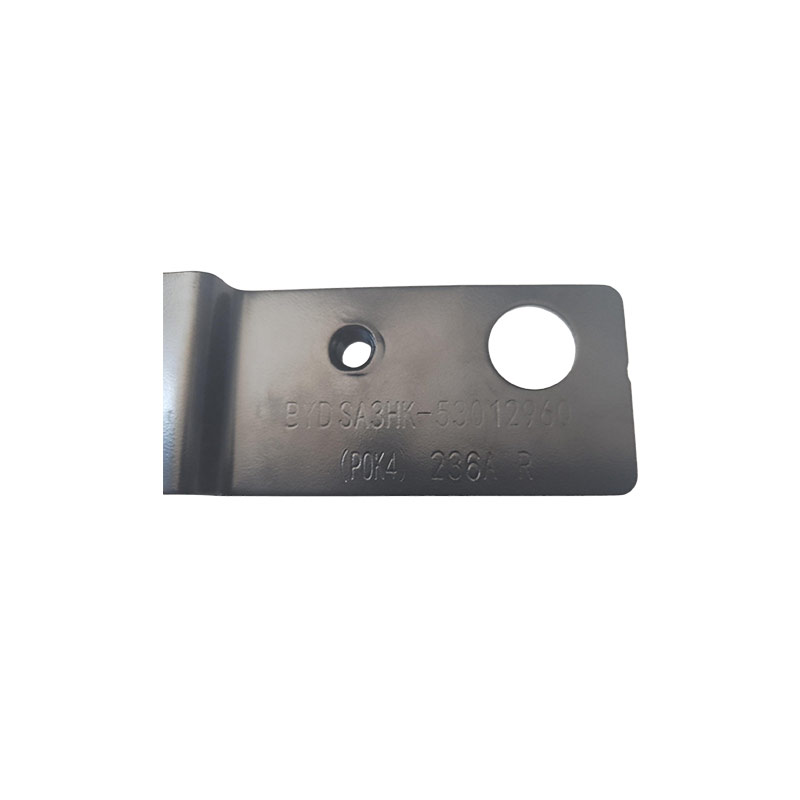

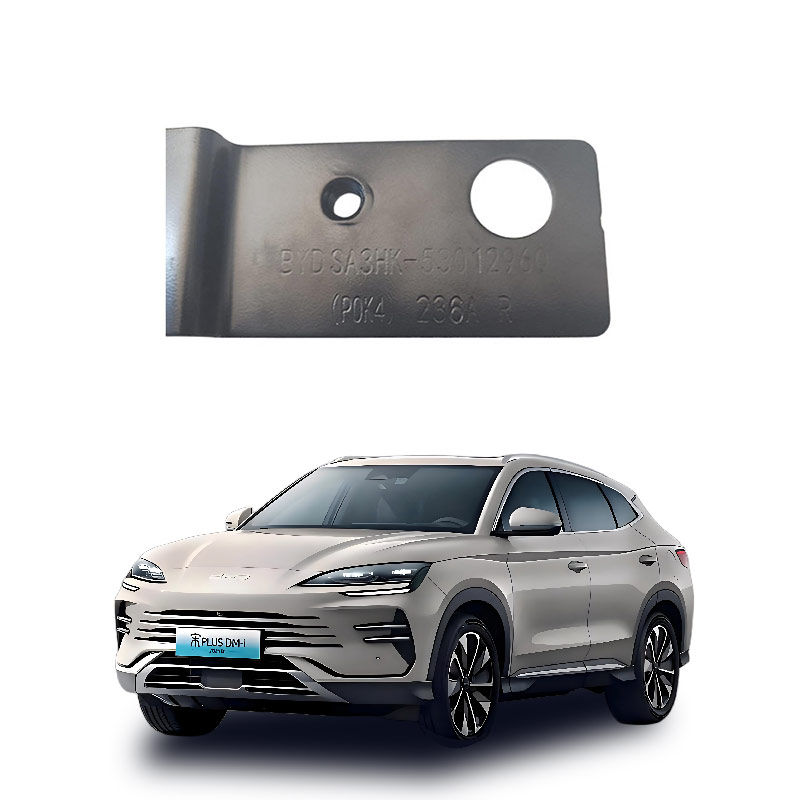

The rear mounting bracket on the right side of the vehicle's front module is a dedicated metal or high-strength plastic support component that is fixed to the right front longitudinal beam of the vehicle and is used for precise positioning and to bear the front assembly components such as the radiator, headlights, and bumper.
Core definition and function
Essentially: The right half of the front module (Front End Module, FEM) serves as a suspension and positioning support point, often designed symmetrically with the left bracket.
Function: It securely connects the water tank frame, condenser, headlights, front bumper, etc., into a single integrated module to the front longitudinal beam of the vehicle, ensuring the accuracy of the assembly clearance surface difference, absorbing vibrations and transmitting collision loads.
Location: It is installed on the front end exterior or upper surface of the vehicle's right front longitudinal beam, and is fastened to the vehicle through bolts or welding. The front end has a slot or hole for locking the module frame. Key features
Positioning reference: Provides X/Y/Z limit positions to prevent the module from shifting during vehicle vibration, ensuring the stability of sensors such as radars and cameras.
Lightweight design: Mostly uses high-strength steel, aluminum alloy or engineering plastics, balancing strength and weight requirements.
Modular interface: Integrates wiring clips and heat dissipation air duct guiding structures, supporting the "total assembly" process to enhance production line efficiency.
Common misunderstandings clarification
Non-engine mount bracket: Different from the "right suspension bracket" for fixed engines, this part is dedicated to the front body assembly and does not involve shock absorption of the powertrain.
Not merely a bumper support bracket: Although it participates in the support of the front bumper, its core task is to fix the entire front frame (including water tanks, headlights, etc.), covering a wider range.
If you need to query the specific vehicle model part number or disassembly specifications, it is recommended to provide the vehicle brand and model to match the original factory drawing data.
The right installation bracket on the rear side of the vehicle front module is mainly used to fix the front components, ensuring the accuracy of the vehicle body clearance and transmitting collision loads. It is a key component connecting the front module assembly with the vehicle frame, directly affecting the appearance matching and safety of the vehicle.
Component fixation and support
The core function of this bracket is to bear and fix the key components on the front module.
Carrying components: Responsible for supporting the weight of components such as headlights, water tanks, condensers, radiators and front bumpers, preventing loosening or displacement due to vibration during driving.
Connecting the body: Firmly installs the front module assembly on the right longitudinal beam or fender mounting points of the vehicle body, maintaining the stability of the overall vehicle structure.
Position accuracy and matching
The design of the bracket is crucial for vehicle appearance quality, especially at the connection between the right side and the fender.
Controlling the gap: Through precise positioning pins and installation holes, ensure the uniform gap between the front bumper and the right front fender, avoiding the expansion of the gap or misalignment over long-term driving.
Anti-deformation design: Has sufficient rigidity to prevent the bracket from deforming, thereby ensuring the matching effect of exterior parts, and some designs adopt lapping or clamping forms to reduce the impact on the headlights.
Safety and collision protection
In the event of a vehicle collision, the bracket participates in energy management.
Distributing impact force: In minor collisions, distribute the impact force, delay the transfer of force to the passenger compartment, providing a buffer space for the core components of the engine compartment.
Protecting personnel: Cooperates with the bumper system to absorb and mitigate external impacts, reducing the risk of injury to passengers and protecting the safety of both the occupants and the vehicle.
