What is the connecting plate on the right side of the crossbeam of the car radiator?

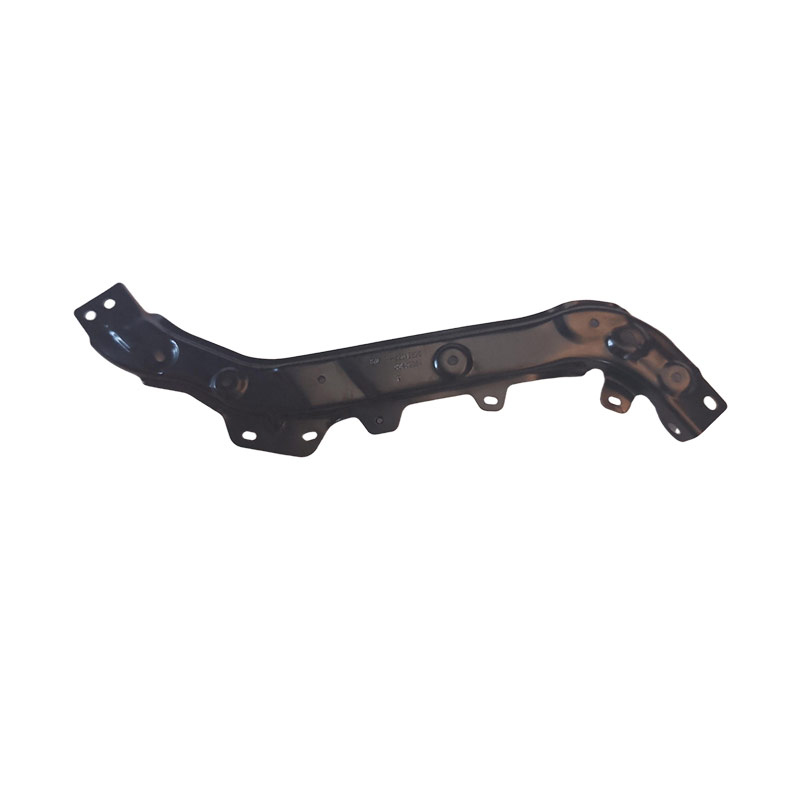

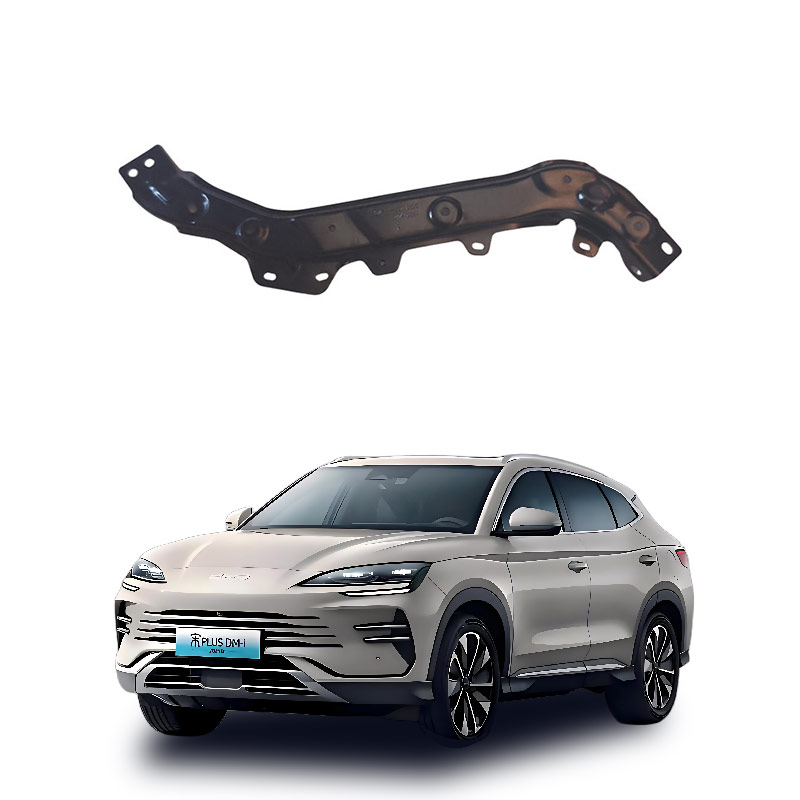

The connecting plate on the right side of the crossbeam of the car water tank is a sheet metal component extending/connected to the right side of the water tank frame beam. It is used to fix the upper crossbeam to the front longitudinal beam or the inner lining reinforcement structure of the fender, serving the functions of supporting, positioning, and load transmission.
Official name: Usually referred to as "Water Tank Upper Crossbeam Connecting Plate (Right)" or "Upper Crossbeam Right Extension Plate", some models are labeled as "Crossbeam Connecting Plate (Right)";
Function: Connects and fixes the upper crossbeam to the vehicle longitudinal beam/strongening beam, maintaining the stiffness of the front frame, and providing an installation reference for headlights, radiators, etc.;
Material and process: Mostly made of steel stamping parts (welded or screwed), a few models use injection-molded engineering plastics for one-piece molding;
Position characteristics: Located on the right side above the front of the engine compartment, one end is connected to the end of the upper crossbeam, and the other end is connected to the vehicle structure through bolts or welds;
Notes: The specific name may vary depending on the manufacturer and model (such as "Right Support Plate" or "Right Connection Bracket"), and when purchasing or repairing, it is necessary to confirm the original part name and drawing number based on the model year + part number.
If precise matching of parts is required, please provide the specific model, year, and the rear part of the VIN code so that the original part name and drawing number can be verified.
The core function of the right connecting plate of the upper crossbeam of the car water tank is to rigidly connect and fix the crossbeam to the vehicle longitudinal beam/wheel well strengthening component, transmitting loads and maintaining the geometric stability of the front structure. Core function
Structural Anchoring: As a critical interface, the crossbeam on the water tank is fixed to the right front longitudinal beam or the inner lining reinforcement of the fender to prevent the radiator and front modules from moving during vibration or collision.
Load Transmission: The longitudinal impact (such as a minor collision) received by the vehicle head and the gravity of components are transferred to the main longitudinal beam of the body, contributing to the improvement of the torsional stiffness of the front compartment.
Positioning Support: Provides precise installation benchmarks for the right headlight assembly, condenser frame, etc., ensuring consistent gap surface differences of the front exterior components.
Process Adaptation: Some models are designed as detachable (bolted connection), facilitating the maintenance and disassembly of components such as the right battery and headlights, avoiding welding obstruction. Additional Explanation
This component is usually symmetrically arranged with the left connecting plate and together they form the upper support of the "girder frame". If it undergoes collapse deformation, it may affect the overall geometric shape of the water tank frame. In the assessment of used car appraisal, attention should be paid to whether it involves cutting and welding. The specific structural form (welding or screwing) and the connected objects vary depending on the vehicle model platform.
The failure of the right connecting plate on the upper crossbeam of the car water tank belongs to a structural support failure. The core risk is that the water tank/condenser may shift, resulting in water leakage, cooling failure, and misalignment of the front exterior components. It is necessary to immediately stop the vehicle and assess and replace it.
Core judgment and handling of the failure:
Must be replaced situations: The connecting plate breaks, is severely deformed, is rusted and perforated, or causes the entire crossbeam to lose stability (single-sided failure destroys the force balance);
Can be temporarily observed situations: Only minor cracks (<2cm) and not the main reinforcing bars, without displacement leakage, but need to be quickly professionally reinforced or replaced;
Prohibited behavior: Welding repair at non-original design points, forcibly continuing to use (vibration may cause the water tank to crack or fall off).
Typical symptoms and self-check points:
Appearance abnormalities: Visible cracks, rust stains, elongated bolt holes at the right connection point, or the water tank/condenser tilting to the right;
Leakage signs: Cooling fluid dripping and leaking from the right fender or the right side of the chassis, accompanied by a rapid drop in fluid level;
Functional abnormalities: Abnormally high water temperature, the fan running wildly but unable to cool down, or the gap between the hood/bumper is asymmetrical on the left and right;
Abnormal sounds and vibrations: Metal friction or shaking sound in the front during driving, and intensified body resonance at idle speed.
Maintenance suggestions and precautions:
Preferred solution: Replace the original or certified sub-brand water tank frame assembly (including the upper crossbeam and connecting plate), ensuring that the installation holes and stiffness match;
Concurrent inspection: Simultaneously check whether the water tank foot pad, condenser bracket, and front bumper installation points are damaged due to uneven force;
Warning for accident vehicles: If this failure is caused by a collision, it is necessary to detect whether the front longitudinal beam is deformed to avoid "replacing parts but not solving the problem";
Cost reminder: Welding repair alone is usually not recommended, as heat treatment will weaken the metal strength, and the long-term is greater than the replacement cost.
Such structural component failures directly affect the safety of the cooling system and the rigidity of the vehicle body. It is recommended to tow the vehicle to a professional repair shop for disassembly and confirmation. Do not drive the vehicle with faults.
