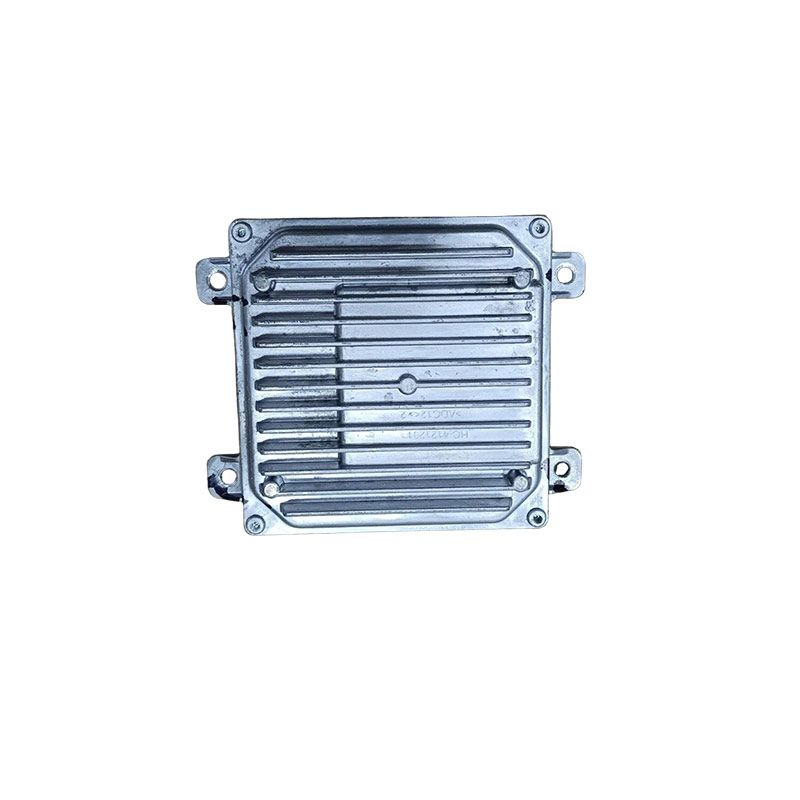

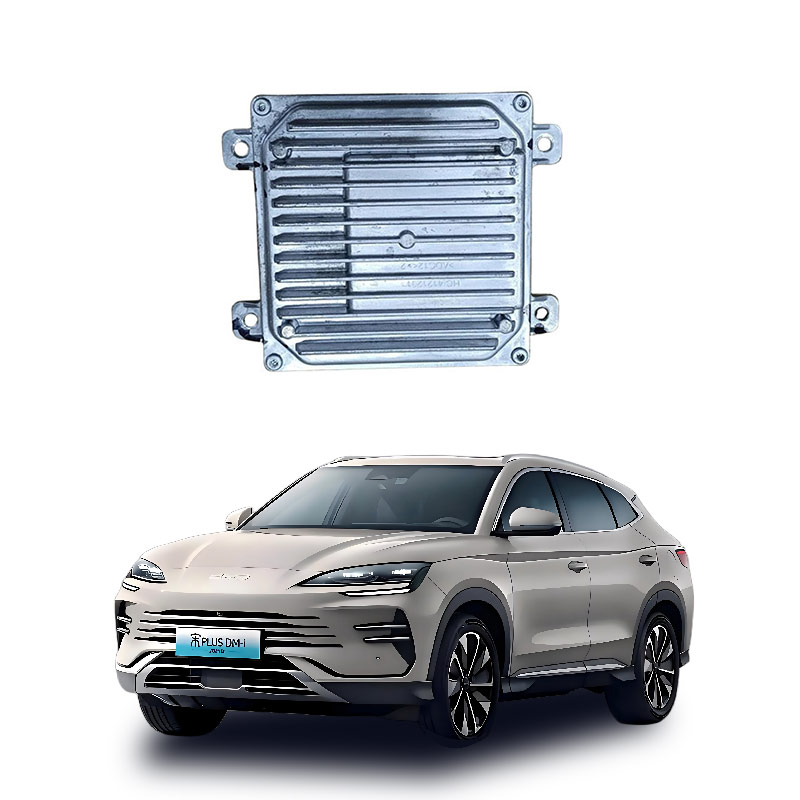

What is the left combined front headlight driving assembly of the car?
The left integrated front headlight driver assembly is an electronic control and power execution unit that is responsible for receiving control signals and precisely driving the light sources of the left integrated lamp assembly (near light, far light, daytime running light, steering, etc.) to emit light and perform dynamic adjustments (such as follow-up steering, height adjustment). It also includes functions like overvoltage/overcurrent/short-circuit protection and fault diagnosis.
The core components and functions
Electronic control module (Driver/ECU): Contains a MCU or dedicated driver IC, receives vehicle signals via CAN/LIN bus, parses light mode instructions, and has overvoltage/overcurrent/short-circuit protection and fault diagnosis capabilities.
Power drive circuit: Provides constant current or high-voltage triggering for different light source types (LED/Helium Gas/Halogen); for LED solutions, a boost/dropout topology and MOSFET switch matrix are often used to achieve independent control of multiple lamp strings and non-flashing switching.
Execution mechanism (for intelligent headlights): Includes a micro-stepping motor and its driver, used to control the horizontal deflection of the light beam (follow-up steering) and the vertical angle adjustment (automatic leveling), and some high-end modules integrate ADB matrix control chips.
Interfaces and sensor feedback: Connects to the vehicle wiring harness, and some are integrated with temperature sensors to dynamically adjust output power consumption and prevent overheating and light attenuation.
Key feature descriptions
Position-specificity: "Left" refers to only serving the left headlight assembly, and its driving logic may be independent of the right side to achieve asymmetric lighting or independent fault isolation.
Integrated trend: Modern combined headlight assemblies often integrate the power drive circuit directly onto the PCB inside the lamp housing or adjacent to the module, replacing the traditional external relay box, supporting the unified control of daytime running lights, near/far light, and steering signals in a single component.
Technical differences: Traditional halogen/xenon lamp drivers focus on high-voltage triggering and relay on-off; LED matrix headlight drivers require high-precision PWM dimming, thermal management, and pixel-level addressing capabilities.
This component is the core hardware for the transition from "passive lighting" to "active intelligent lighting" of the headlights. If damaged, it will cause the left lights to fail to light up, mode switching to fail, or the follow-up function to be lost.
The core function of the left integrated front headlight driver assembly is to receive control signals and precisely drive the left light sources to turn on/off and adjust the angle of the motor, achieving the execution of lighting functions and dynamic beam control. Core function
Light source drive control: Converts the vehicle power supply into the current and voltage suitable for LED/halogen/xenon light sources, precisely controlling the on/off and brightness of modes such as near light, far light, daytime running light, and turn signal light (including PWM dimming).
Angle execution drive: Drives the vertical/horizontal stepping motors inside the left headlight to adjust the illumination angle according to the vehicle height, speed, and steering angle signals, achieving AFS dynamic steering and automatic horizontal adjustment.
Intelligent logic execution: As the execution terminal, it receives instructions from the BCM or independent ECU, and cooperates with the matrix/ADB system to independently control the on/off of specific light beads on the left side, avoiding glare from the opposite direction and optimizing curve lighting.
Status monitoring feedback: Real-time monitors the circuit load, temperature, and motor status of the left side, and reports diagnostic codes when faults occur and reduces operation (such as forcibly switching to near light).
Work logic flow
Receives instruction signals (switching, mode, angle data) from the vehicle body control module (BCM) or headlight control unit.
Internal processor parses the signals and calls the corresponding drive circuit (constant current source or motor driver).
Outputs power to drive the left light-emitting unit or angle adjustment motor to act.
Feedback the execution result and fault information to the vehicle network.
This component is usually integrated inside the headlight assembly or installed closely to it, serving as a key hub connecting the "control brain" and the "optical execution", ensuring independent, precise, and safe response of the left lighting. If missing or damaged, the left headlight will experience faults such as not lighting up, inability to change light, or fixed angle.
