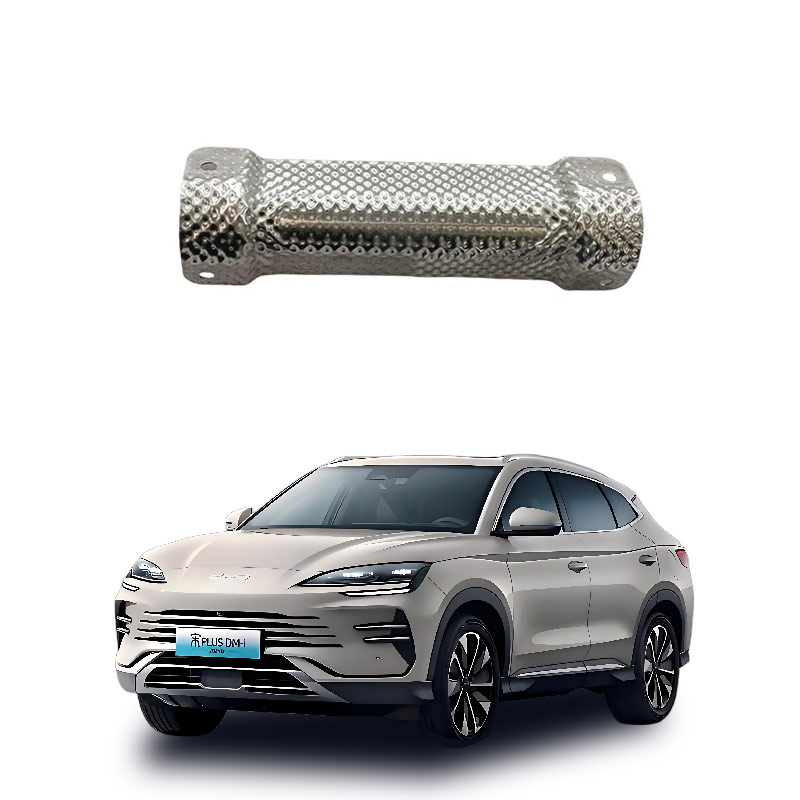

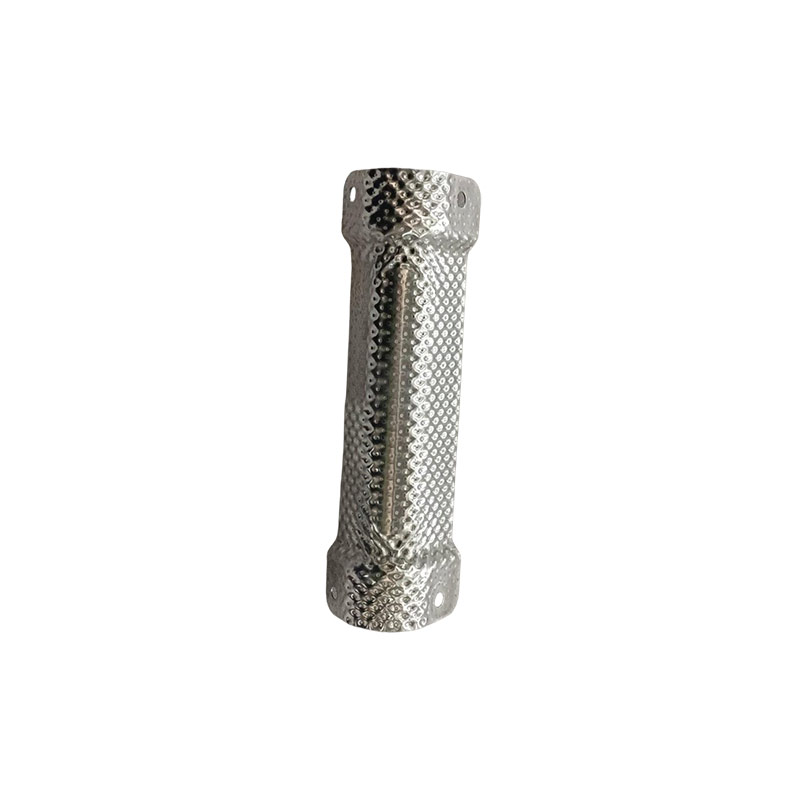

What is the automotive steering heat shielding component?
The automotive steering thermal shielding component is not a standard general term. It usually refers to a customized heat protection component (often a metal reflector or insulation plate) installed at key parts of the steering system (such as the steering knuckle ball joint, near the steering column), used to block the heat radiation from heat sources like brake discs, exhaust, or motors, and prevent rubber seals from aging and failing, thereby providing a thermal insulation protection structure.
Core definition and function:
Essentially: A customized heat protection part (often a metal reflector or insulation plate), not part of the steering mechanism itself, belonging to the thermal management system branch.
Core function: Reflect or absorb the thermal radiation from high-temperature sources (mainly brake discs), reducing the thermal shock on adjacent ball joint seals, dust covers, or electronic sensors, preventing rubber from hardening and cracking, leading to oil leakage or dust intrusion, and prolonging the lifespan of steering components.
Application scenarios: Commonly seen in high-performance cars, new energy vehicles (with dense motor and electrical heating), or models with compact braking layouts, often integrated between the steering knuckle and the brake disc.
Common forms and principles:
Ball joint protection cover/thermal shield: Located between the steering knuckle ball joint and the brake disc, using a metal folded edge structure to reflect thermal radiation, directly protecting the ball joint seal cover.
Steering column thermal shield: Installed between the engine compartment and the driver's cabin firewall, blocking the heat from the engine from being conducted along the steering column to the steering wheel area.
Material characteristics: Mostly use high-reflectivity aluminum (such as 5182 aluminum plate) or stainless steel, some designs contain air gaps or cooling channels to enhance the insulation effect.
Note the distinction:
This concept is easily confused with "steering gear" or "electromagnetic shielding": the former is the core of mechanical transmission, the latter is for signal interference; "thermal shielding" specifically refers to the blocking of heat transfer, currently mostly a specific protective design in automotive patents, and has not yet formed a unified independent assembly name across the industry.
The "automotive steering thermal shielding component" is not a standard general component name. It usually refers to a thermal protection device installed near the steering system to block the heat radiation from the engine or exhaust system to the steering column, power assist motor, and electronic control unit, with the core function being to prevent thermal damage leading to steering failure, material aging, or electronic faults.
Core function:
Thermal insulation protection: Block the high-temperature (up to 600°C+) from the engine compartment from heating the steering column, EPS motor, sensors, and wiring harness through radiation or conduction, avoiding plastic parts melting, lubricating oil loss, or electronic components overheating and malfunctioning.
Safety redundancy guarantee: Prevent sudden loss of steering assist or jamming in extreme heat environments, ensuring normal steering function during emergency avoidance.
Longer lifespan: Reduce the aging impact of thermal cycles on rubber seals, bearings, and electronic connectors of the steering system.
Cooperation with thermal management strategies: In the scenario of battery thermal runaway in new energy vehicles, some designs also serve as heat transfer steering diversion structures, guiding the hot air away from the steering channel (a specific patent solution, not a standard production feature).
