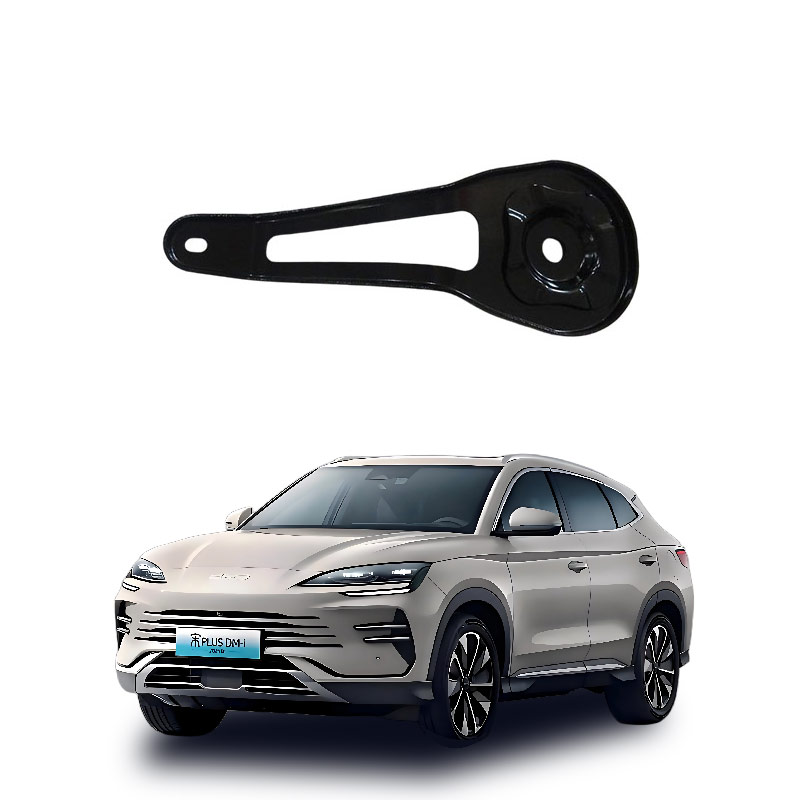

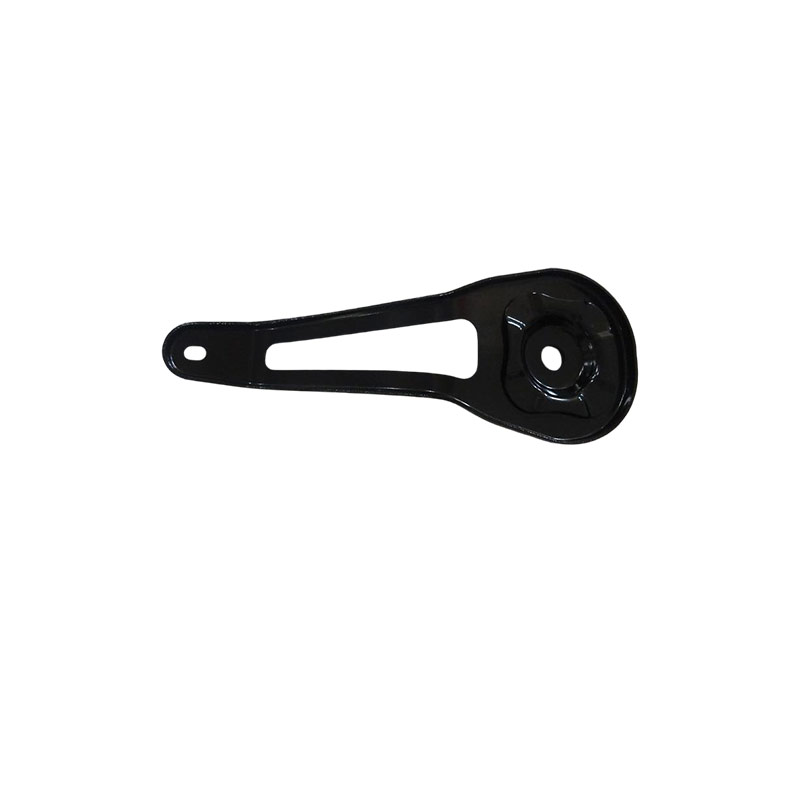

What is the front sub-frame of the car - the front-mounted bracket - the component?
The front subframe assembly - front mounting bracket - component refers to a modular support assembly installed at the front end of the vehicle's subframe (Subframe) to fix components such as radiators, condensers, headlights, and the front bumper. It is a modular support structure belonging to the front part of the vehicle's body structure rather than an independent load-bearing frame.
Core Definition and Function
Essential Attributes: It is a dedicated installation base or crossbeam component on the front subframe system, often referred to as "water tank frame bracket", "front bumper bracket", or "girder mounting seat", responsible for precisely positioning and locking the front-end modules (Front End Module) onto the subframe.
Main Function: It supports radiators, condensers, fans, headlights, and the front bumper energy absorption box; it guides the impact force to the subframe during a collision to protect the core components of the engine compartment; it maintains the assembly gap and geometric accuracy of the front components.
Structural Characteristics: Usually made of high-strength steel or aluminum through stamping or casting, it includes the longitudinal beam connection part, the crossbeam installation surface, the radiator fixation point, and the impact absorption beam interface. Some designs may contain crushable energy absorption structures.
Key Components and Position Relationship
Connection Body: Directly bolted or welded to the front crossbeam or longitudinal beam of the front subframe (front axle frame).
Carrying Object: Above is installed the radiator frame / condenser bracket, and on both sides are connected the headlight assembly and the front bumper impact absorption bracket.
System Classification: It belongs to the underlying supporting structure of the "front end module (FEM)", distinct from the engine foot pads (shock absorbers) or simple plastic snap-in brackets for the bumper.
Confusing Concepts Distinction
Non-engine mount: It does not support the engine weight or suppress engine vibrations (those are the functions of the foot pads / torsion bars).
Non-independent frame: It is an accessory component of the subframe, and the subframe is the core load-bearing skeleton connecting the suspension and the body.
Non-appearance accessories: It is a structural metal part, and damage can cause the front components to shift, cooling failure, or reduce collision safety performance.
If this component breaks or deforms, it usually indicates that the vehicle has suffered a front impact. It is necessary to check if the subframe body is damaged and it is recommended to replace the original part to ensure the normal collision energy absorption path.
The "front subframe assembly - front mounting bracket - component" of the vehicle is not a single standard part, but a total assembly of the front subframe (元宝梁) and its front mounting bracket / support. Its core function is to support the powertrain and suspension， transfer forces， isolate vibrations， and maintain the geometric accuracy of the front structure.
Core Function
Support and Positioning： Stabilizes the engine， transmission， and front suspension components， ensuring the accurate relative position of each assembly and preventing displacement during driving.
Shock Absorption and Noise Reduction： Absorbs engine torque fluctuations and road impacts through rubber sleeves or special rubber pads， significantly reducing NVH (Noise， Vibration， and Sound Insulation Roughness) transmitted to the vehicle body.
Force Flow Transmission： Smoothly transmits engine torque， braking reaction force， and collision loads to the vehicle's longitudinal beams， participating in the collision energy absorption design.
Structural Connection： As a key node in the front part， it connects the left and right subframes or the front body panel to maintain the rigidity of the front structure.
Component Composition and Division of Labor
Front subframe (subframe )： The main bearing structure， usually an "H" shape or closed frame steel piece， directly installs the suspension links and powertrain.
Front mounting bracket (front support / connection arm)： The transitional component connecting the front subframe and the body longitudinal beam or front panel， often containing reinforcing ribs and installation holes.
Elastic Elements (sleeves / rubber pads)： Embedded between the bracket and the frame， responsible for flexible connection and damping reduction， is the key to isolating vibrations. Non-auxiliary bumper bracket: The bumper bracket only fixes the exterior covering parts and does not bear the weight of the powertrain; this component is the core of the chassis that bears the force.
Not merely engine mounting feet: The mounting feet only fix the bottom of the engine, while this component involves the integrated support and force transmission of the entire front axle/auxiliary frame system.
If specific repair judgments are involved, it is necessary to distinguish whether it is rubber aging and fracture of the bracket (only replace the rubber sleeve) or deformation of the metal body (requiring replacement of the entire assembly), the latter may indicate that a collision or severe overload has occurred.
