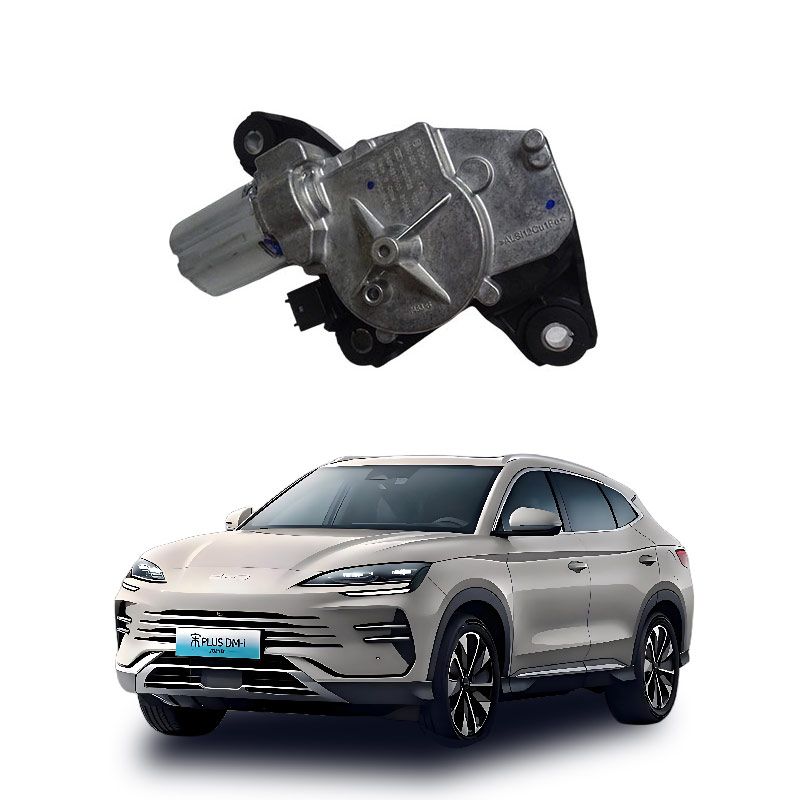

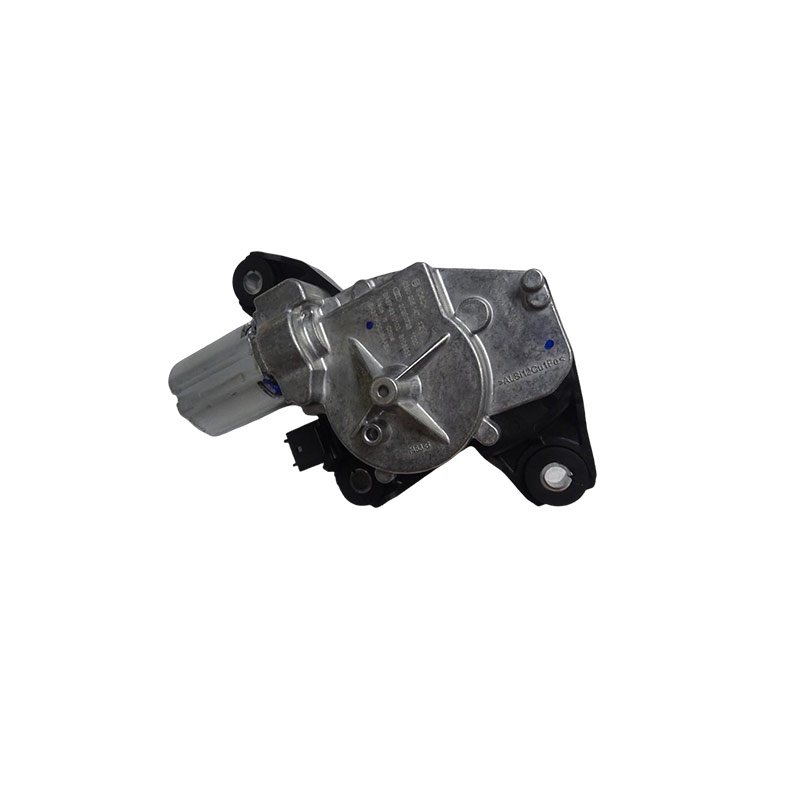

What is the electric motor for the rear windshield wiper of the car - and - the bracket?
The electric motor for the rear windshield wipers is a DC permanent magnet power source that drives the wiping of the rear window. The bracket is the transmission force framework that connects the motor output to the wiper arm/gasket. Together, they achieve the cleaning of the rear windshield.
Core Definition and Function
Rear Wiper Electric Motor: A DC motor with a worm gear reduction mechanism that converts electrical energy into low-speed high-torque rotational motion and is controlled by an internal return switch to stop at specific positions, specifically designed for the small-angle reciprocating swing of the rear window.
Bracket (Wiper Frame/Rocker Assembly): Refers to the metal connecting rod or framework structure in the rear wiper system that connects the motor output shaft to the rubber wiper blade; in the overall context, it often refers to the transmission connecting rod (rotational swing), and in the context of the wiper blade, it refers to the support framework of the articulated wiper (distributing pressure to adhere to the curved surface).
Key Differences and Collaborative Relationship
Role Division: The motor provides power (rotation), and the bracket is responsible for transmission and adhesion (converting rotation into oscillation or uniform pressure).
Structural Form: The motor is a sealed electromechanical assembly; the bracket is divided into "transmission connecting rod" (connecting the motor and the arm) and "wiper blade framework" (supporting the gasket), and rear wipers often require special arc-shaped brackets to prevent the wiper from jumping due to the large curvature of the glass.
Fault Manifestations: Motor failure is manifested as "no rotation or continuous operation"; the deformation/fatigue of the bracket is manifested as "abnormal noise, vibration, uneven wiping, or inability to adhere to the glass". Notes for Attention
The term "suspension" can have different meanings in different contexts: during maintenance, it usually refers to the transmission arm/lever; when purchasing wiper blades, it usually refers to the internal framework of the rubber strip. Without a bone wiper, there is no external framework, and it relies on the built-in steel plates to exert force.
The rear wiper motor is usually of low power and has an automatic reset function. The bracket must be precisely matched to the window angle of the vehicle model; otherwise, it is prone to causing cleaning blind spots.
The rear wiper motor of the car is the power source, responsible for converting electrical energy into mechanical energy and driving the swing; the bracket (including the arm/lever structure) is the transmission and pressure-bearing component, responsible for converting the rotational motion into reciprocating swing and evenly transmitting the pressure to the glass.
Core Function Analysis
Rear wiper motor: As the heart of the system, it uses a built-in permanent magnet DC motor combined with a worm gear reduction mechanism to convert high-speed rotation into low-speed, high-torque output and control the wiper arm to achieve low-speed, high-speed, intermittent, and automatic reset functions.
Bracket (wiper arm/lever assembly):
Transmission Conversion: Connects the motor output shaft with the wiper arm, precisely converting the circular motion of the motor into the specific angle reciprocating swing of the wiper blade on the rear window.
Pressure Application: Utilizes a metal elastic structure to tightly press the wiper blade against the rear windshield surface, ensuring uniform force distribution at multiple points and preventing "floating" or cleaning blind spots caused by high-speed airflow.
Structural Adaptation: Designs special arcs and clasps for SUV/convertible cars with large window angle curves to ensure the rubber strip is fully adhered to the glass throughout the process.
Collaborative Working Logic
Power Chain: Motor rotation → Reduction and torque increase → Connecting rod mechanism drives → Bracket drives the wiper arm to swing → Rubber strip cleans the glass.
Failure Impact: Motor failure will result in complete inactivity or inability to reset; deformation, rust, or elastic failure of the bracket will cause abnormal noise, vibration, incomplete cleaning, or damage to the glass.
