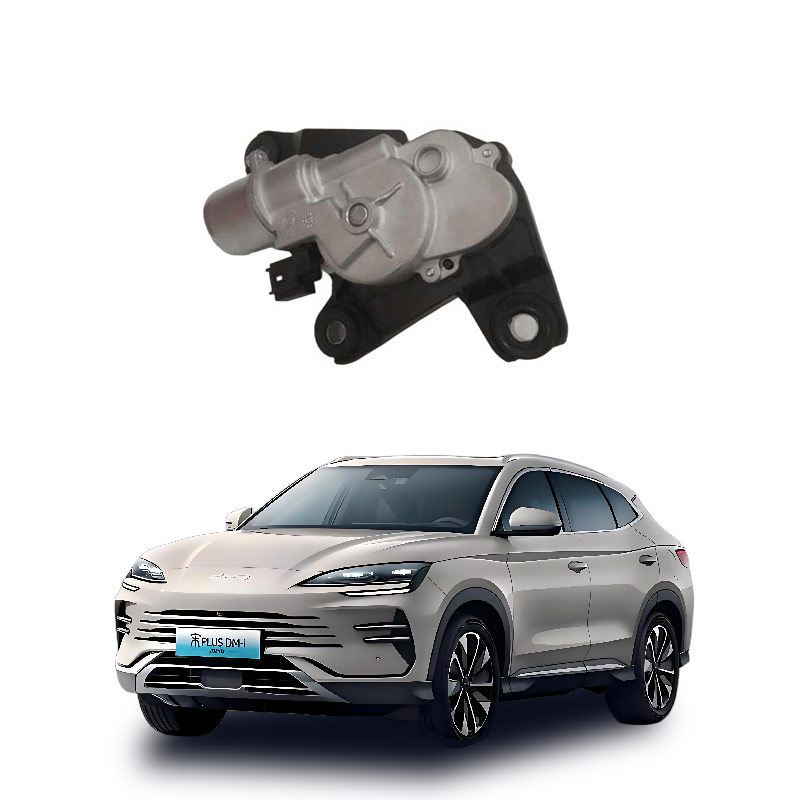

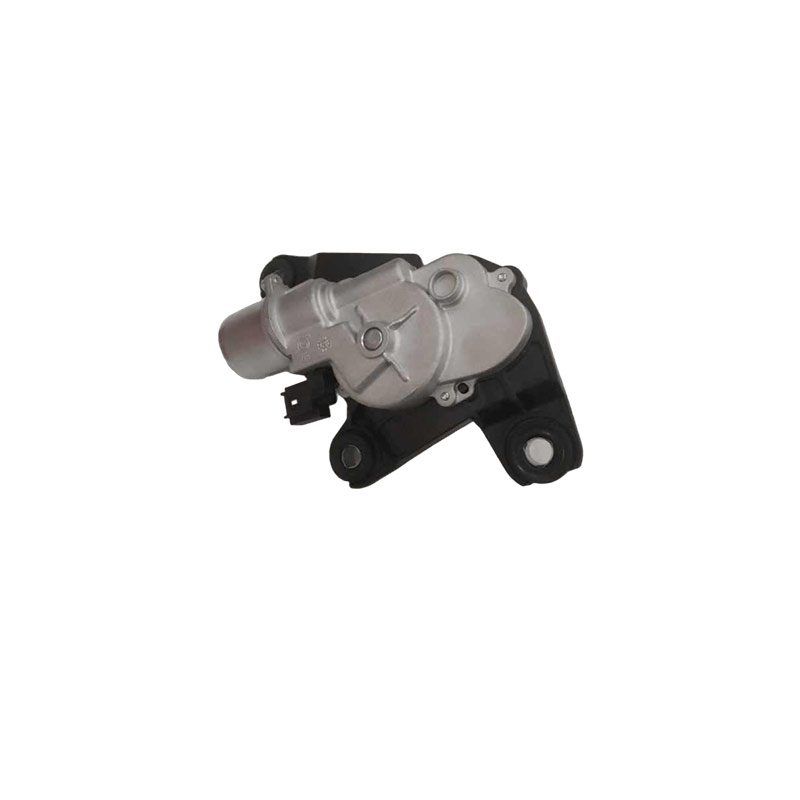

What is the rear windshield wiper motor and bracket assembly of the car?
The rear windshield wiper motor and bracket assembly is a power-driven and mechanical-supporting unit specifically designed for the rear windshield. It consists of a DC permanent magnet motor (with a reduction mechanism) and a fixed/transmission bracket, responsible for converting electrical energy into oscillating motion to clean the rear window.
Core Components and Functions
Rear Wiper Motor: Power source, with a built-in permanent magnet motor and worm gear reducer, converting high-speed rotation into low-speed, high-torque output, and featuring an automatic reset function; typically located on the inner side of the tailgate interior panel or beneath the rear window.
Bracket Assembly: Includes a motor mounting base (fixed to the vehicle's sheet metal) and a connecting rod/pendulum transmission mechanism, used to support the motor and convert rotational motion into the reciprocating oscillation of the wiper arm, while also withstanding the vibrations and stresses from the tailgate opening and closing.
Synergistic Function: The motor drives the connecting rod, which in turn moves the rear wiper arm and the wiper blade to conform to the curved surface of the rear windshield, achieving a combined action of wiping and spraying, ensuring clear rear vision during reversing or rainy driving.
Comparison with Front Wiper System
Installation Environment: The rear motor is often integrated within the tailgate, requiring adaptation to frequent opening and closing and a more compact space, with higher sealing and vibration resistance requirements; the front motor is mostly located near the firewall of the front compartment.
Working Logic: The rear wiper is mostly intermittent scraping or activated in conjunction with reversing, with a travel angle typically smaller than that of the front wiper, and a more compact structure.
Bracket Characteristics: The rear bracket needs to accommodate the passage of wiring for the tailgate and the avoidance of hinges, making the design more complex than the front wiper mounting base.
If this component has abnormal sounds, stops running, or fails to reset properly, it is usually caused by carbon brush wear of the motor, gear damage, or loosening of the connecting rod. Overall detection and replacement are required.
The core function of this component is to provide power-driven oscillation and transmit torque to maintain contact, jointly cleaning the rear windshield to ensure clear rear vision.
Core Function Analysis
Motor Component: As the power source, it converts electrical energy into mechanical energy, through the built-in worm gear reducer, converting high-speed rotation into low-speed, high-torque output, and driving the connecting rod to achieve reciprocating motion of the wiper arm; it features multiple speed settings (low speed/high speed/intermittent) and automatic reset function upon power loss.
Bracket Component: As the transmission and support hub, it connects the output shaft of the motor and the wiper arm, responsible for transmitting torque, converting motion trajectories (rotation to oscillation), and ensuring that the wiper blade adheres to the curved surface of the glass with uniform pressure, preventing jitter or uneven scraping.
Collaborative Work Logic
Power Output: The motor rotates when powered on, and after reduction and increase in torque, it drives the output shaft.
Motion Conversion: The bracket (including connecting rod/rotor) converts the rotational motion into a specific angle of reciprocating oscillation.
Pressure Maintenance: The bracket structure converts the motor's thrust into the vertical pressure on the glass, ensuring the cleaning effect.
Precise Reset: In coordination with the internal reset switch, it ensures that the wiper blade accurately stops in the non-obstructed area at the bottom when stopped.
Core Fault Phenomenon and Causes
Complete Inactivity: Mostly caused by blown fuses, motor burnout (no sound/no smoke), loose plug, or connecting rod detachment.
Oscillation but Unable to Wipe/Sluggish Movement: Bracket deformation, connecting rod rusted/frozen/unhooked, wear of the reduction gear or jamming of the rocker arm.
Continuous Operation/Unable to Reset: Internal reset contacts of the motor are damaged or the control switch is faulty, and the motor continues to rotate after power loss.
Strange noises accompanied by shaking: Gear breakage, bearing wear, or loose fixing bolts of the bracket cause resonance.
Quick diagnostic steps
Listen for the source: Turn on the rear windshield wipers. If you don't hear the motor's "buzzing" sound and there's no burnt smell, check the fuse first; if there is sound but the arm doesn't move, it is mostly likely that the connecting rod has fallen off or the mechanism is mechanically stuck.
Check the fuse and wiring: After locating the dedicated fuse for the rear windshield wipers (refer to the manual), replace it if it is blown; if the fuse is normal but there is no electricity, measure the voltage of the motor plug to determine if the circuit is open.
Mechanical structure inspection: Remove the rear door interior panel and observe if the connecting rod has come out of the ball joint, if the bracket is broken or rusted, and manually move the connecting rod to confirm if it is stuck.
Motor load test: Disconnect the connecting rod and power on the motor directly to test. If it runs normally in idle but doesn't rotate under load, it indicates that the reduction gear set is damaged or the motor torque is insufficient.
Maintenance and replacement plan
Only for connecting rod/bracket issues: Replace the connecting rod mechanism alone or correct the deformation of the bracket, lubricate the rusted joints (lower cost).
Motor damage: It is recommended to directly replace the motor assembly (including the built-in reduction gear), as single repair of carbon brushes/gears is unreliable and has high labor costs.
Installation points: The new motor must be installed precisely and accurately. Secure the ball joint of the connecting rod to prevent it from falling off. After reinstallation, test the automatic reset function and the scraping angle. Notes for Attention
Before operation, make sure to disconnect the negative terminal of the battery to prevent short circuits; the tailgate wiring harness is prone to breakage due to frequent bending, so it is necessary to carefully check the wires at the door opening.
For some models, the rear wiper motor and bracket are integrated. You need to purchase the original factory product or a matching model assembly to avoid mismatched installation holes.
If you do not have the experience of disassembling and installing the tailgate interior panel, it is recommended to go to a professional repair shop to prevent the snap fasteners from breaking or the seal from being insufficient, which could lead to water leakage.
