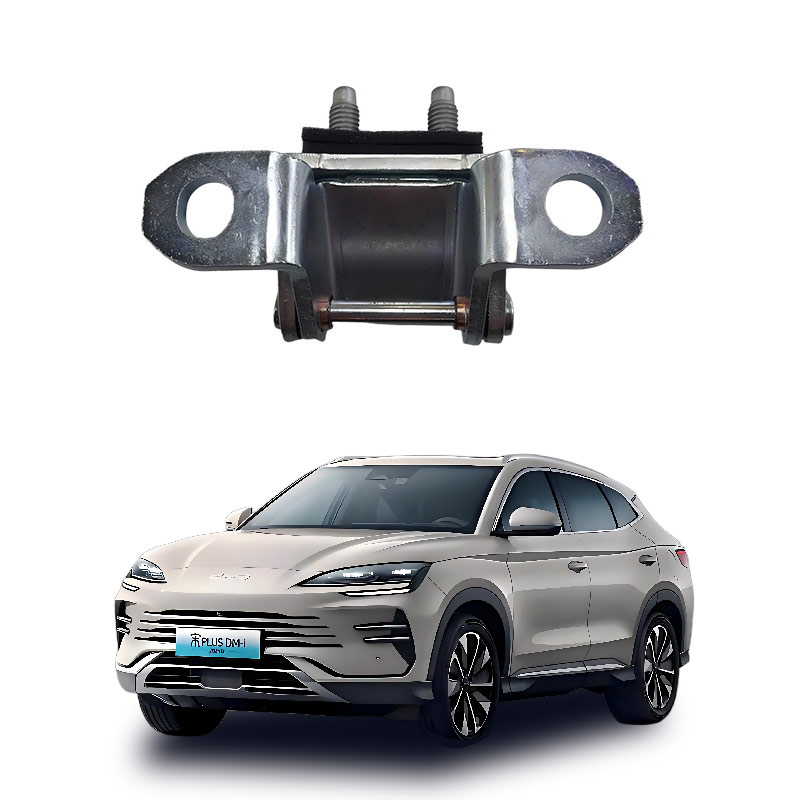

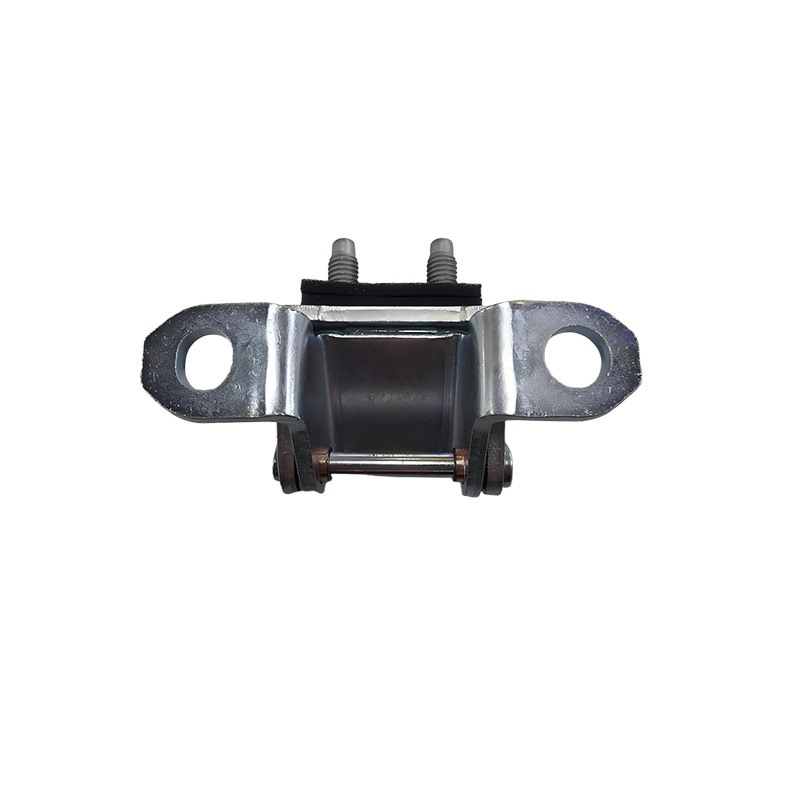

What is the left hinge component of the car's side door?
The left hinge assembly of the car side door is a mechanical assembly that connects the left side door of the vehicle to the body, supports the weight of the door and enables smooth opening and closing rotation. It is typically composed of two hinges (upper and lower) and an internal pin/bearing structure.
Core Definition and Composition
Functionality: As the "hinge" of the door, it is responsible for fixing the left front or left rear door on the vehicle body, bearing the entire weight of the door and allowing it to rotate and open/closed around the axis.
Basic Components: It consists of at least three parts: the vehicle body component (fixed to the B-pillar/vehicle body), the door component (fixed to the edge of the door panel), and the connecting rotating mechanism (pin, bearing or bushing).
Position Characteristics: Specifically refers to the hinge of the driver's side (left-hand drive vehicle on the left) door. It usually appears in pairs (upper hinge + lower hinge), and the larger the distance, the better the stability.
Key Characteristics and Functions
Load-bearing and Support: When the door is closed, it cooperates with the door lock to bear the force, and when opening, it is entirely borne by the hinge, requiring high axial strength to prevent sagging or loosening.
Motion Guidance: The axis design often has a rearward and inward inclination angle to ensure smooth opening and an automatic return trend, preventing self-opening due to wind.
Safety Standards: It must comply with national standards (such as GB15086), with a longitudinal load of ≥11000N and a lateral load of ≥9000N, to ensure that the door does not fall off during a collision.
Common Types: According to the manufacturing process, it is divided into stamping type (low cost, light weight) and casting type (high precision, high strength, heavier); according to the structure, it is divided into split type (independent hinge) and integrated type (integrated limit function). Notes for Attention
"The left hinge" refers to the component installed on the left side of the car door, not specifically referring to a single part, but rather the collective term for the upper and lower sets of hinges; during specific repairs, it is necessary to distinguish between the upper and lower positions and whether the limiters are integrated.
If there is abnormal noise, sinking, or jamming during opening and closing, it is mostly due to the lack of oil in the hinges, wear of the pin shaft, or deformation of the installation hole. Lubrication or replacement of the assembly is required.
The core function of the left hinge component of the car side door is to support the weight of the door, connect the door to the body, and guide the door to open and close smoothly along a fixed trajectory, ensuring smooth opening and closing and a secure locking when closed.
Load-bearing support: It bears the entire weight of the left door, prevents sagging deformation, and maintains uniform gaps between the door and the body;
Rotational connection: As the foundation of the mechanical rotating shaft, it enables the controlled opening and closing of the door relative to the body;
Trajectory guidance: In coordination with specific angle designs (such as inward/forward inclination), it regulates the opening path of the door to avoid interfering with surrounding components;
Cooperative limiters: Working in conjunction with limiters, it provides resistance feedback and assists in positioning during opening, preventing excessive opening or accidental swinging.
This component is usually installed in pairs (one on the top and one on the bottom), and the left hinge is responsible for the left front or left rear door. Its structural strength and wear resistance directly determine the looseness and safety of the door after long-term use.
