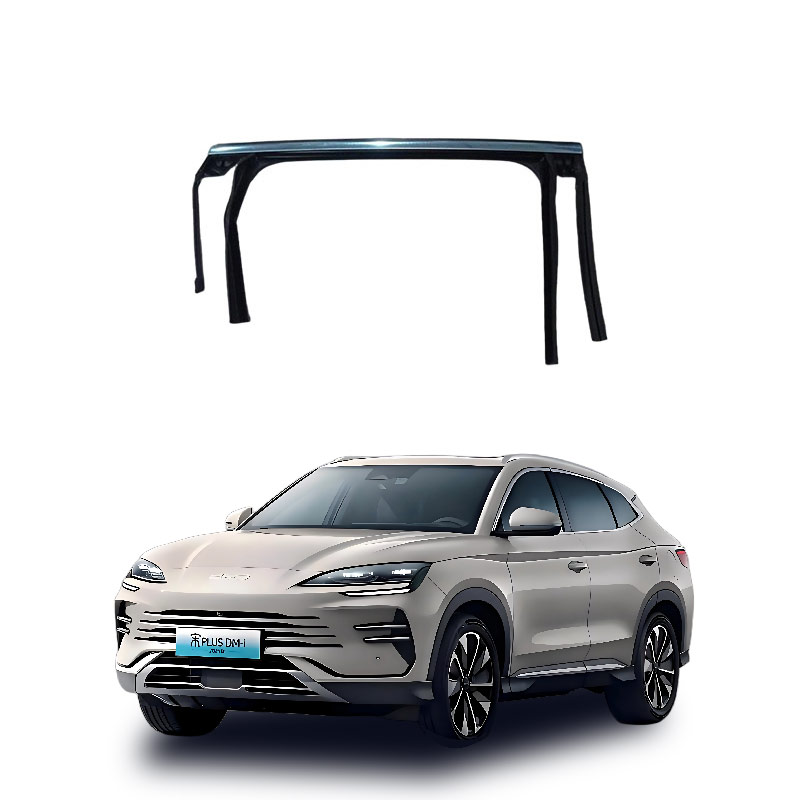

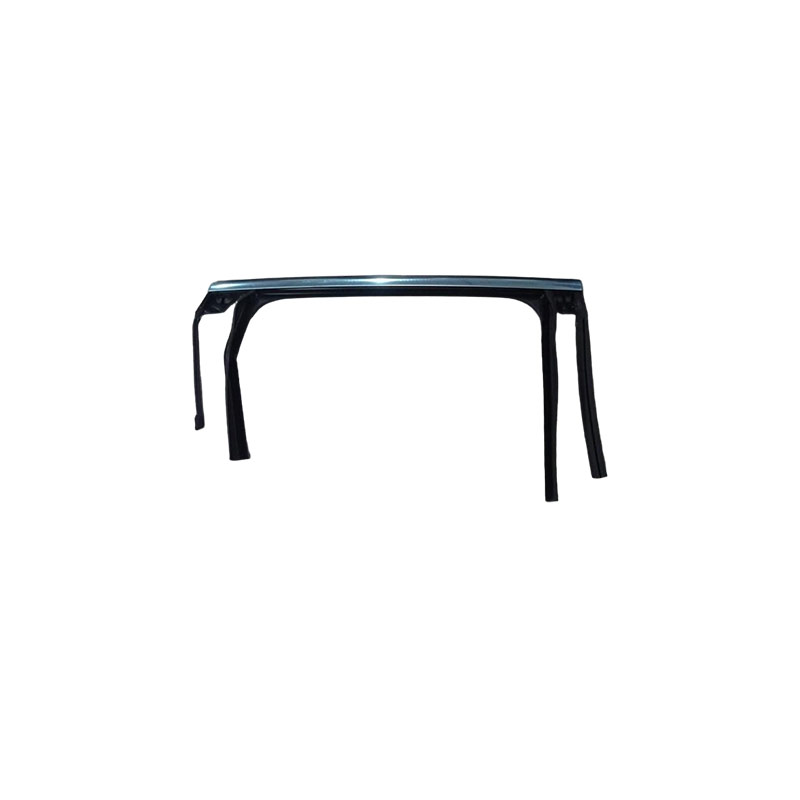

What is the glass groove on the right rear door of the car?
The right rear door glass groove, professionally known as the window glass guide groove (or the glass operation guide groove sealing assembly), is a rubber or composite material guide rail structure installed on the inner side of the right rear door, closely attached to the edge of the moving glass.
Core definition and function
Positioning: Specifically refers to the groove-shaped track on the right rear passenger door that guides the up and down sliding of the glass. The left and right side components are usually not interchangeable.
Three main functions:
Guidance and lubrication: As the "track" for glass operation, the inner wall is often covered with fibers or Teflon coating to reduce friction and ensure smooth and silent operation.
Sealing and waterproofing: It blocks rain, dust, and foreign objects from entering the interior of the door, protecting the motor and wiring of the glass operation.
Shock absorption and noise reduction: It buffers the glass movement and suppresses the slamming sound when closing the door and the wind noise during driving.
Common aliases and materials
Common name: In the repair and parts market, it is often called the "glass plush groove", "glass mud groove", or "ny groove".
Material: Modern models mostly use a composite structure of TPE soft rubber and hard PP frame, which has UV resistance, low-temperature resistance, and high resilience. Early models were mostly single-layer rubber.
If this component ages and cracks, it may cause glass operation to be stuck, produce abnormal sounds, or leak water in rainy weather, requiring timely replacement of the right rear door-specific guide groove for the corresponding model.
The right rear door glass groove (also known as the glass guide groove or plush groove) is the core guiding and sealing component of the window operation system. Its main functions are as follows:
Guidance positioning: Fixing the glass operation trajectory to ensure the glass slides smoothly and vertically during opening and closing, preventing glass shaking or derailment.
Sealing and dust-proof waterproofing: Using rubber material with elasticity to closely adhere to the glass, blocking rain, dust, and foreign objects from entering the interior of the door, protecting the motor and mechanical structure of the glass operation.
Noise reduction and friction reduction: The inner wall is usually covered with fibers or special coatings, significantly reducing the friction coefficient between the glass and the groove, achieving silent operation and reducing glass wear.
If this component ages and cracks, it may cause problems such as glass operation jamming, abnormal sounds, water leakage in rainy weather, and increased wind noise, requiring timely replacement of the original factory parts to restore performance.
Common fault causes of the right rear door glass groove usually include glass operation jamming, abnormal sounds, glass tilting, or automatic retreat. The main reasons are often accumulated dirt in the guide groove, aging of the rubber guide groove, or excessive mechanical resistance.
Common fault causes
Accumulated dirt and debris in the guide groove: Accumulation of dust and sand in the guide groove significantly increases friction resistance, triggering the anti-clamping function and causing the glass to automatically descend.
Aging of the rubber guide groove: Loss of fibers on the inner wall, hardening or deformation of the rubber, losing lubrication and guiding function, causing dry friction sounds and poor operation.
Mechanical structure deviation: Loose screws of the operation unit, misaligned guide rails, or detached glass, causing the glass operation trajectory to be skewed.
Impact of associated components: Due to excessive resistance of the guide groove, it may cause the motor to activate the overheating protection or the wire rope of the operation unit to wear, resulting in temporary malfunction.
Quick troubleshooting and solution steps
Clean the guide groove (preferred solution)
Use a wet towel wrapped around a chopstick (thickness suitable for the width of the guide groove) to repeatedly wipe the inside of the guide groove, removing accumulated dirt and mud.
After cleaning, spray a small amount of "window-specific lubricant" or silicone-based lubricant, strictly avoiding the use of engine oil (which easily adsorbs dust and corrodes rubber).
Perform window initialization
If the problem persists after cleaning, it may be due to lost data in the control module. Lower the glass to the bottom, hold the operation switch for 3 seconds; then raise it to the top and continue holding the switch for 3 seconds, repeating 1-2 times to reset the anti-clamping threshold.
Check mechanical fixation
Remove the interior panel of the door, check if the screws of the operation unit are loose, and if the guide rail is deformed. If necessary, adjust or tighten it.
Maintenance suggestions If cleaning and initialization fail and are accompanied by obvious metal friction sounds or severe glass misalignment, it is usually a problem with the lift mechanism assembly or physical damage to the guide slot, and the corresponding parts need to be replaced.
For issues related to circuits (such as malfunctioning switches or loose wiring harnesses) or complex mechanical disassembly, it is recommended to have them handled at a professional repair shop to avoid damaging the door's waterproof layer.
