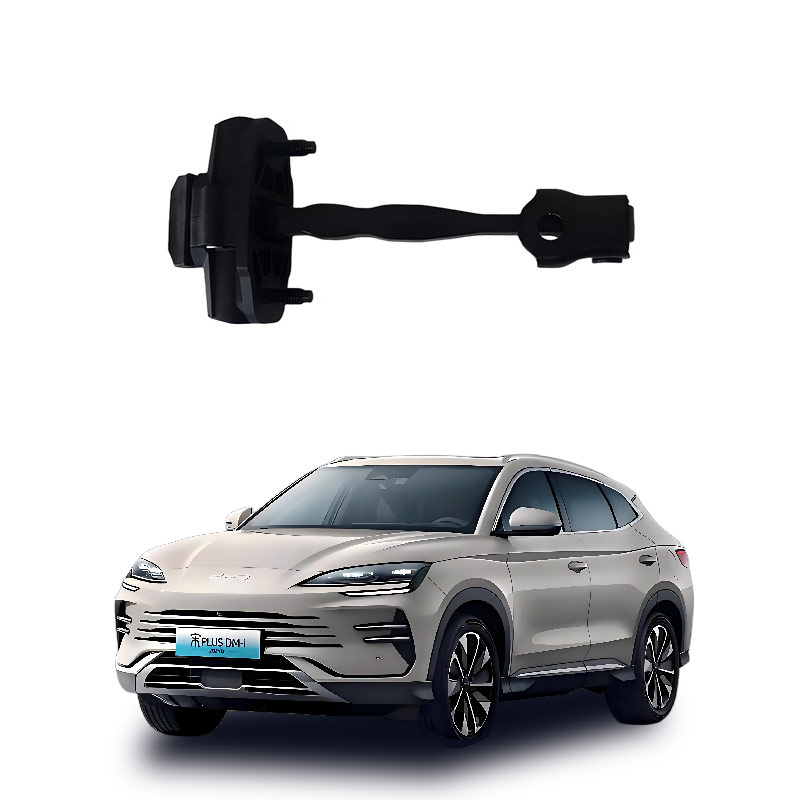

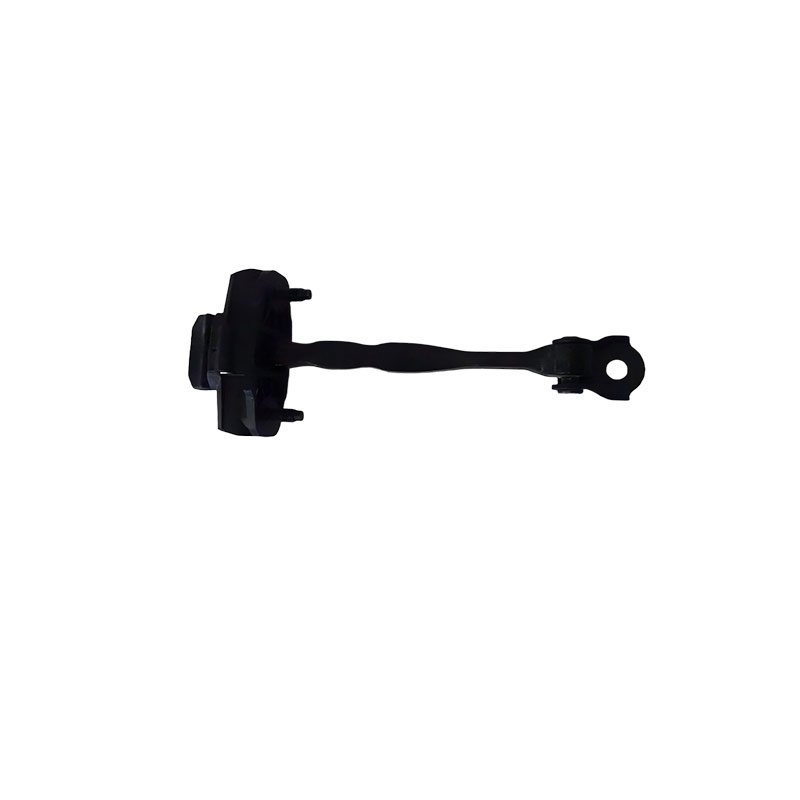

What is the car front door limiter assembly?
The car front door limiter assembly is a mechanical device installed at the connection point between the door and the vehicle body, used to limit the maximum opening angle of the door and keep it stationary at a specific position.
Core components
Limiting arm (rod): Usually fixed to the vehicle body, with different-height protrusions or slots on the surface, forming a multi-level structure.
Limiting box: Installed on the door, with elastic elements (such as rubber blocks, springs) and rolling/sliding components (such as balls, sliders) inside, moving along the limiting arm.
Fixed bracket and fasteners: Used to firmly connect the assembly to the vehicle body sheet metal and the inner side of the door. Main function
Prevention of excessive opening: Prevent the car door from fully opening due to wind force, slope gravity or excessive operation, to avoid colliding with surrounding objects and damaging the paint or hinges.
Position retention: Provide multi-stage damping feedback (commonly 2-3 levels), allowing the car door to stabilize at half-open or fully open positions, facilitating getting in and out of the vehicle or carrying items.
Buffer protection: The built-in damping structure can absorb the closing impact force, reducing mechanical wear and abnormal sounds.
Common types
Pull-rod type (box type): Compact structure, low cost, generating resistance through rubber deformation, widely used in mainstream models, but the limit force may weaken over time.
Spring type: Often integrated with the car door hinge, relying on the deformation of the torsion rod for positioning, low noise, long lifespan and clear feel, commonly seen in mid-to-high-end or European models.
If there is a "clicking" sound or loss of positioning when opening and closing the door, it is usually due to insufficient lubrication or component aging. Try adding special lubricating grease or replacing components.
The core function of the car front door limit device is to control the opening angle of the car door and maintain its stability. It specifically includes the following three functions:
Limit maximum opening degree: Prevent the car door from opening too wide and colliding with surrounding objects (such as walls, neighboring vehicles) or damaging the body sheet metal, ensuring the opening angle is in line with human ergonomics, facilitating getting in and out of the vehicle and closing with less effort.
Fix the door position: Utilizing internal elastic resistance (such as rubber blocks, torsion springs), allowing the car door to stop steadily at small open, half-open, fully open and other specific positions, avoiding the door sliding, closing or opening excessively when parked on a slope or in windy conditions.
Protect the car door mechanism: Reducing mechanical wear and damage to the hinges, lock body and internal wiring due to excessive stretching or violent shaking, prolonging the service life of the car door system.
During daily use, avoid forcefully pushing the door to the extreme position to prevent internal catch deformation or fracture and cause abnormal sounds; applying a small amount of lubricating grease regularly can effectively maintain its smoothness and lifespan.
The main failure of the car front door limit device is manifested as abnormal opening and closing resistance, positioning failure or abnormal sounds. The core solution approach is "first lubrication for troubleshooting, then replacement of the assembly".
Core failure manifestations
Abnormal feel: Difficulty in opening, sticking, or the car door cannot stop at the designated angle (automatically sliding or opening excessively).
Function failure: Excessive opening of the door (with a risk of collision during driving) or automatic closing upon slight vibration.
Obvious noise: Metal friction sound when opening and closing the door, usually caused by long-term lack of oil resulting in wear or metal fatigue.
Diagnosis and treatment plan
Try lubrication repair
If it is only an abnormal noise or slight sticking, it is usually due to dry lubricating grease. Clean the old grease and apply special white lithium-based grease or car door limit device-specific lubricating grease (avoid using oil that is prone to sticking to dust). Operate the door opening and closing 5 times or more to ensure the grease is evenly distributed.
Check assembly and structure
Check if the installation screws are loose, retighten and align the hinge shaft and limit device rotation shaft in parallel.
Check if the limit arm is broken or the plastic covering layer is damaged; if the metal connecting rod is broken, the lubrication is ineffective and must be replaced.
Replace the assembly (final solution)
If the lubrication is ineffective or the component is physically damaged, the limit device assembly must be replaced.
Tools required: Cross/flat-head screwdriver, internal梅花 wrench (depending on the vehicle model)， new limit device assembly.
Key steps： Remove the door panel interior → Disconnect the wiring (if any) → Loosen the fixing screws → Install the new part in the original direction → Tighten with moderate torque → Test the stability of opening and closing.
It is recommended to be operated by a professional technician to ensure precise installation angle and prevent the door from sagging or sealing improperly.
