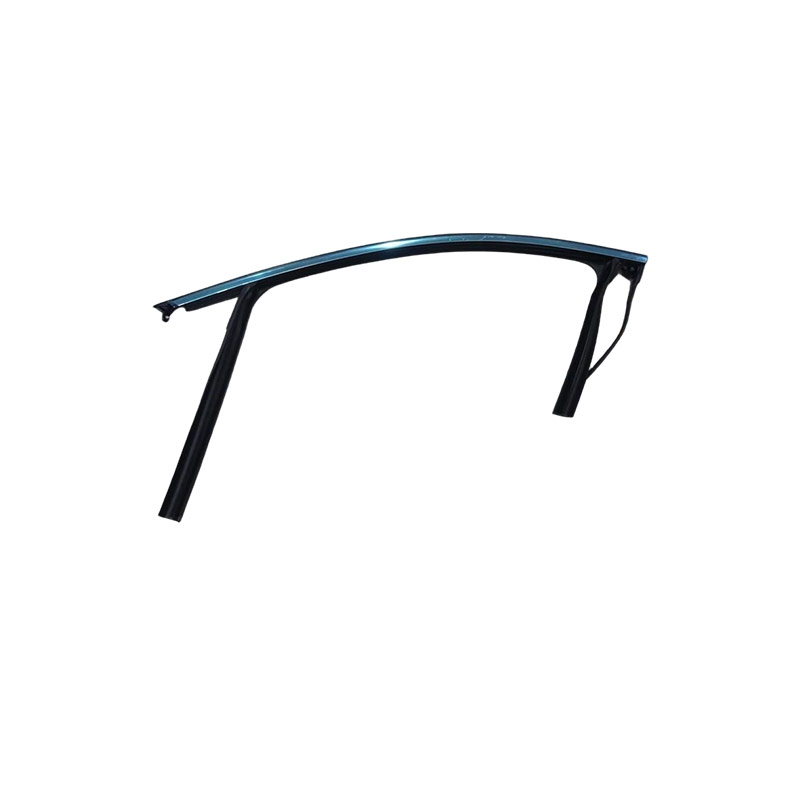

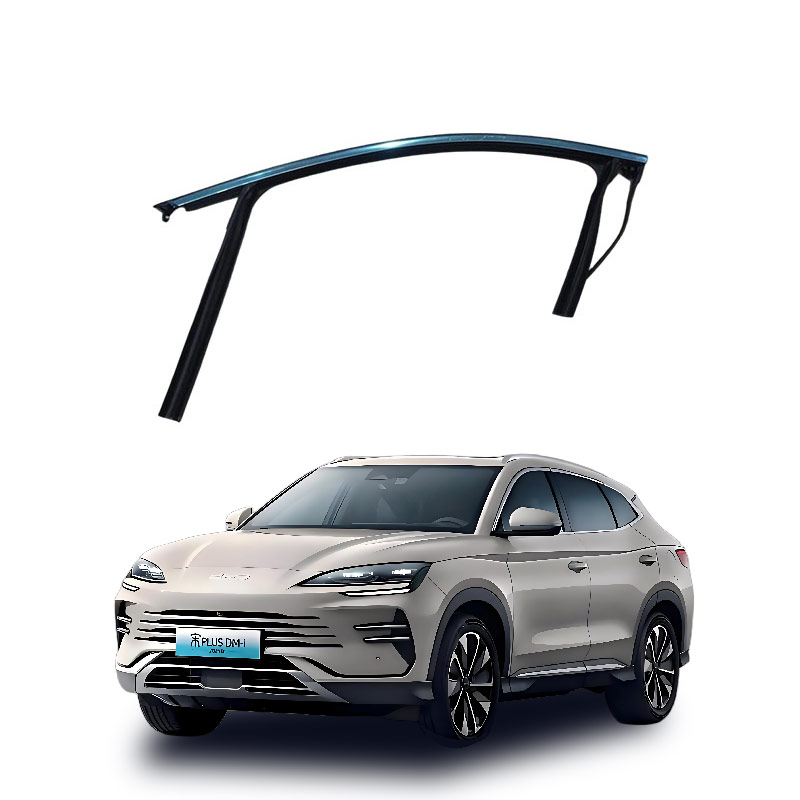

What is the car front door glass groove?
The front door glass groove, professionally known as the "window glass guide groove" (or "glass lifting guide rail"), is a U-shaped structural component installed inside the front door of a car, used to guide and support the smooth lifting and lowering of the front door glass. Core function
Guidance and Support: As the track for the glass lift, it ensures that the glass moves vertically in a straight line, preventing shaking or jamming.
Sealing Protection: Made of rubber or composite materials, it closely adheres to the surface of the glass, providing functions such as waterproofing, dustproofing, and sound insulation, preventing water from seeping into the internal circuits or mechanical structures of the car door.
Shock Absorption and Noise Reduction: Through elastic materials, it buffers the vibrations of the glass during movement, reducing wind noise and mechanical friction sounds, and enhancing the quietness.
Structure and Materials
Position: Located inside the front door's sheet metal frame, the upper and lower ends of the glass and the sides all have guide grooves. It usually works in conjunction with the car door lift mechanism.
Material Evolution: Traditionally, EPDM rubber was used, while modern models have gradually adopted TPV (thermoplastic vulcanized rubber), which has better weather resistance, lower friction coefficient, and anti-aging properties, significantly reducing abnormal noises and extending the service life.
Common Faults and Maintenance
Aging Manifestations: After long-term exposure to sun and rain, the guide grooves are prone to hardening, cracking, and deformation, causing the glass to lift and lower with difficulty, produce "clicking" abnormal sounds, or leak water inside the car door.
Simple Maintenance: Regularly cleaning the dust and debris in the grooves can apply special window lubricant or dashboard wax to restore the rubber's elasticity; if severely damaged, the original factory guide grooves need to be replaced to ensure sealing accuracy.
Note: Do not confuse this with the drainage guide groove below the front windshield, which is located at the junction of the engine hood and the windshield, mainly used to drain rainwater.
Common Faults and Maintenance of the Front Door Glass Guide (also known as the window guide groove) are as follows:
Guidance and Positioning: Guides the glass to move vertically in a smooth and straight line, preventing the glass from tilting, jamming, or derailing during movement.
Sealing and Waterproofing: Utilizes the elasticity of rubber materials to closely adhere to the glass, blocking rain, dust, and foreign objects from entering the interior of the car door, protecting the lift motor and mechanical structure.
Noise Reduction and Shock Absorption: Buffers the hard contact between the glass and the metal frame, effectively reducing wind noise and lift abnormal sounds, enhancing NVH (Noise, Vibration, and Sound Insulation) performance.
Dust Protection: Forms a physical barrier to reduce the wear on the glass edges caused by sand accumulation, prolonging the lifespan of the glass and the lift mechanism.
This component is usually made of EPDM rubber or TPV materials. Long-term exposure can cause aging and hardening. If there are abnormal sounds during lift, jamming, or water leakage inside the car door, it is mostly due to aging or accumulation of dust in the guide grooves, and timely cleaning or replacement is required.
Common Faults of the Front Door Glass Guide usually manifest as lift failure, abnormal sounds, glass tilting, or detachment from the guide groove. The main causes are aging and deformation of the rubber guide groove, increased resistance due to accumulated dust, or loosening of the mechanical structure.
Common Causes and Quick Troubleshooting
Guide Groove Dirtiness or Aging: The rubber strip hardens and accumulates dust, resulting in a significant increase in friction, which is the most common cause of slow lift or jamming.
Mechanical Structure Issues: Loose fixing screws of the lift mechanism or deviation of the guide rail installation position can cause the glass to deviate from its running path or detach from the guide groove.
System Initialization Loss: If the glass cannot move at all but the motor makes noise, it may be due to data loss in the control module after power loss, requiring re-initialization.
Component Damage: Burned-out lift motor, broken steel wire rope, or corroded switch contacts belong to hardware failures. Solution
Cleaning and Lubrication (Preferred Method)
Use chopsticks covered with a damp towel to move up and down inside the guide slot to remove sediment and dirt.
After cleaning, spray a small amount of "Window-specific Lubricant" or "Panel Wax" inside the guide slot. Do not use engine oil (it is prone to dust and corrodes rubber).
If there is ice in winter, remove the ice first before proceeding to avoid damaging the motor by forcibly lifting and lowering.
Perform Window Initialization
Raise the glass to the top and hold the switch for more than 3 seconds. Lower it to the bottom and hold the switch for more than 3 seconds. Repeat this process 2-3 times to reset the program.
Replace or Repair Hardware
If the rubber of the guide slot is cracked or severely deformed, purchase the corresponding model "Glass Molding Slot" for replacement (some models can be directly removed without removing the door panel). Tighten loose screws; if the lifting device or motor is damaged, replace the assembly. It is recommended to have it done by a professional repair shop. Notes for Attention
During the initial stage of the malfunction, do not repeatedly forcefully press the switch to avoid burning out the motor or causing the glass to completely disintegrate.
When replacing the mud groove by yourself, be careful to protect the edges of the glass to avoid scratches; if it involves disassembling the door panel, handle the waterproof film and wiring harness carefully.
If cleaning and initialization are ineffective, it is likely a mechanical hardware fault. Please go to the repair station for testing in time.
