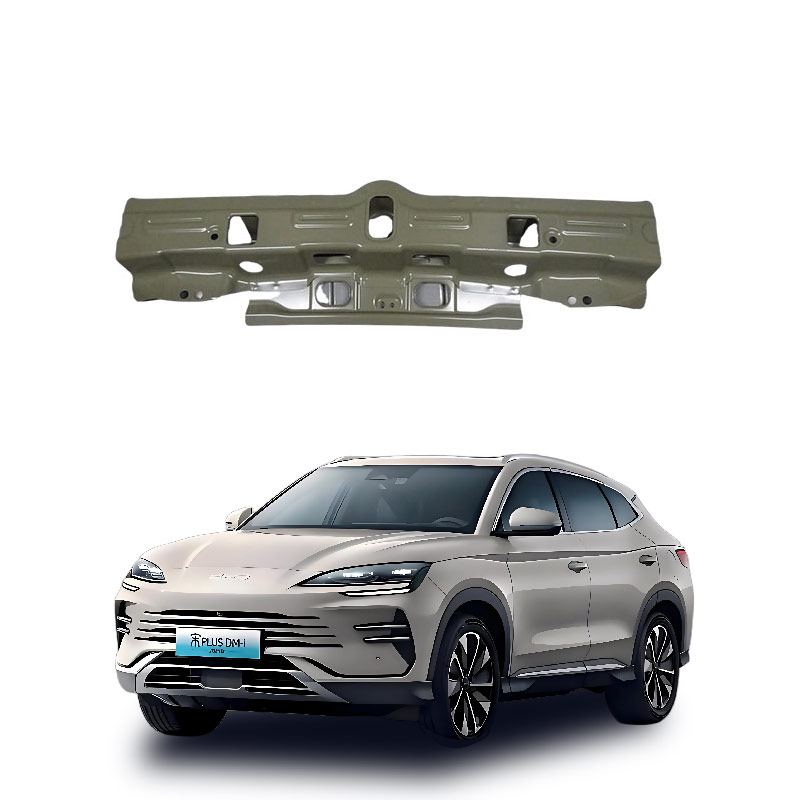

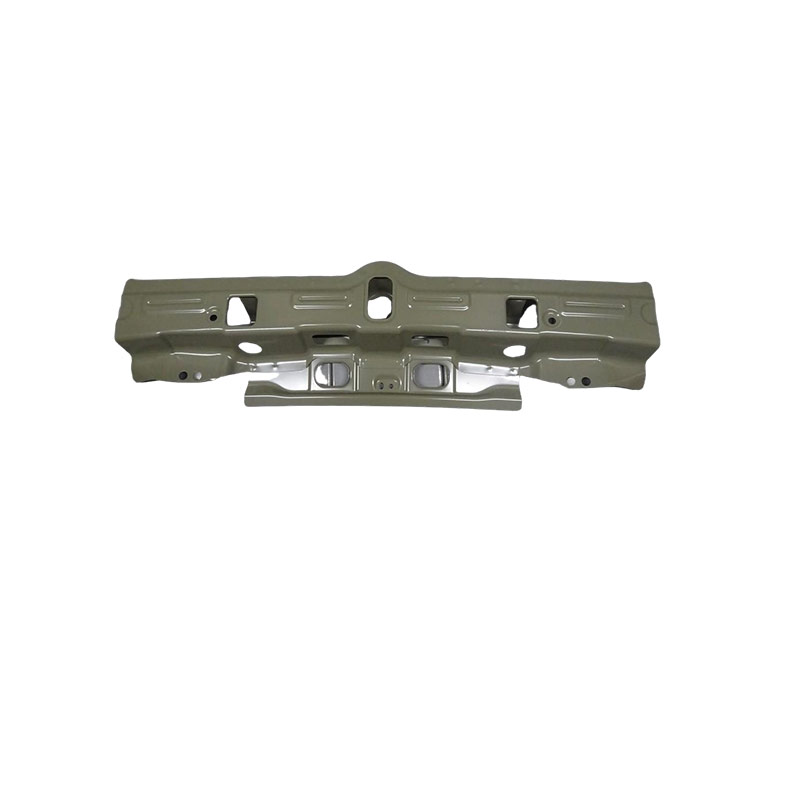

What is the rear crossbeam assembly of the car roof?
The rear crossbeam assembly of the car roof cover is a horizontal structural component located at the very end of the vehicle's top. It is made by stamping and welding the outer panel, inner panel, and reinforcement plate, etc. It mainly performs functions such as connecting the left and right body panels, supporting the rear door and the roof, and transmitting loads.
Core Definition and Position
Position: At the upper end of the rear of the vehicle body, it is the last horizontal beam of the roof cover assembly, spanning and connecting the left and right C-pillars/side panel areas.
Nature: It belongs to the body structure component (not the chassis sub-frame). It is usually made of 0.8mm-1.0mm thick low-carbon steel or high-strength steel (such as DC01, HC300) through stamping.
Composition: It generally includes the outer plate, inner plate, reinforcement plate of the roof cover rear crossbeam, and some installation brackets. Some designs may include cavity structures to optimize welding or lightweighting. Main function
Support Installation: Provides a hinge installation base and sealing strip support points for the rear door (tailgate), and also serves as a fixation point for the roof interior panel.
Structural Reinforcement: Participates in forming the "crash-resistant" structure of the passenger compartment, enhancing the roof's pressure resistance, compression resistance, and the overall torsional stiffness of the vehicle.
Process Requirements: Design should reserve exhaust holes (to prevent gas accumulation) and leakage holes (to prevent liquid accumulation) to ensure the quality of the paint electrostatic spraying.
Differences from Similar Components
It is necessary to distinguish between the chassis rear crossbeam (such as the rear subframe crossbeam, rear impact beam), which is located at the bottom of the vehicle and is responsible for suspension support or collision energy absorption; and the roof rear crossbeam specifically refers to the structural component at the roof area, with completely different positions and functions.
The rear crossbeam of the car roof is a transverse structural component located at the very end of the upper part of the vehicle. Its core function is to support the rear door, fix the roof interior panel, and ensure the sealing at the rear and the structural rigidity. Core function
Installation support: As the fixed base for the rear door hinge, it bears the load of the tailgate opening and closing as well as its own weight; at the same time, it provides the clamping or adhesive installation points for the interior lining/trim of the roof.
Sealing guarantee: It is equipped with specific interfaces or planes for installing the sealing strips around the rear door, ensuring the waterproof and dustproof performance when closed.
Structural reinforcement: Connects the left and right side panels (C/D pillar area), closes the ring-shaped structure of the roof, enhancing the body's torsional stiffness and assisting in resisting top deformation.
Attachment bearing: Part of the design integrates the installation positions for high-position brake lights, rear cameras or wire harness fixers.
Structural and Position Characteristics
Position: At the top of the rear of the vehicle, spanning between the left and right side panels, it is the last crossbeam of the roof assembly.
Composition: Usually formed by stamping and welding of the outer panel, inner panel and strengthening plate, often including I-beam strengthening ribs, positioning holes and limit structures to optimize connection strength.
Process Requirements: Needs to be designed with exhaust/leakage holes to prevent paint accumulation and maintain a specific gap with surrounding parts to avoid interference or poor electrophoretic treatment.
Note: Do not confuse it with the "rear subframe beam" or "rear impact beam", which are located at the bottom of the vehicle and mainly involve suspension support or impact energy absorption.
Damage to the rear crossbeam of the car roof is classified as a "body structure damage", directly affecting the roof rigidity and the safety of the rear door support, and must be professionally evaluated before deciding on repair or replacement. Severe deformation requires a complete replacement rather than attempting to repair the sheet metal.
Core Judgment and Handling Principles
Component Positioning: Located at the top rear of the vehicle (C pillar/D pillar area), connecting the left and right side panels, supporting the rear edge of the roof and the rear door hinge/sealing structure, not the chassis impact beam.
Repair Qualification: This component damage is usually classified as "structural damage"; if there is bending, fracture or folding, repair will result in a decrease in metal strength and pose safety hazards. In most cases, it is recommended to "cut and replace" rather than correct.
Safety Impact: Damage will reduce the roof's compressive strength (increasing rollover risk), cause poor closure of the rear door/abnormal noise, and decrease the body's torsional stiffness, leading to vehicle resonance.
Disposal Process: Immediately stop high-speed/long-distance driving → Go to a repair shop or 4S store with a "body frame correction instrument" → Conduct three-dimensional measurement to detect deformation → Based on the manufacturer's standards, determine "repair" or "replacement".
Maintenance Plan and Cost Reference
Minor Dents without Cracks: Some aluminum alloy or high-strength steel parts can be repaired by interstitial stretching, but stress changes need to be detected. The cost is approximately $500 - $2000 (depending on labor hours and material).
Significant Deformation/Fragmentation: Must cut the old part, weld a new part and do anti-corrosion and sealing treatment. It is a major repair project, with costs usually ranging from $3000 - $10000 + (including parts, labor, painting and four-wheel alignment).
Insurance Claims: If caused by an accident and the insurance coverage is sufficient, claim under the vehicle damage insurance; if only a minor damage and it is more cost-effective to pay out of pocket, compare quotes from 4S stores and professional body shops.
Key Considerations
Used Car Value: The repair record of this part will be judged as "structural damage", significantly reducing the residual value of the used car. When trading, it is necessary to truthfully inform.
Quality Assurance Risk: Welding from unauthorized channels may damage the vehicle's anti-corrosion layer or affect the vehicle's quality assurance. It is recommended to consult the brand 4S store first.
Misidentification Mistakes: Do not confuse it with the "rear impact steel beam" (inside the chassis bumper), as their positions and functions are completely different. Damage to the rear crossbeam does not necessarily mean a major accident, but damage to the roof crossbeam affects the integrity of the passenger compartment.
Suggested Action: Take the vehicle to a professional institution for "body data measurement" as soon as possible. Based on the actual deformation data, formulate a plan. Do not judge and repair by appearance alone.
